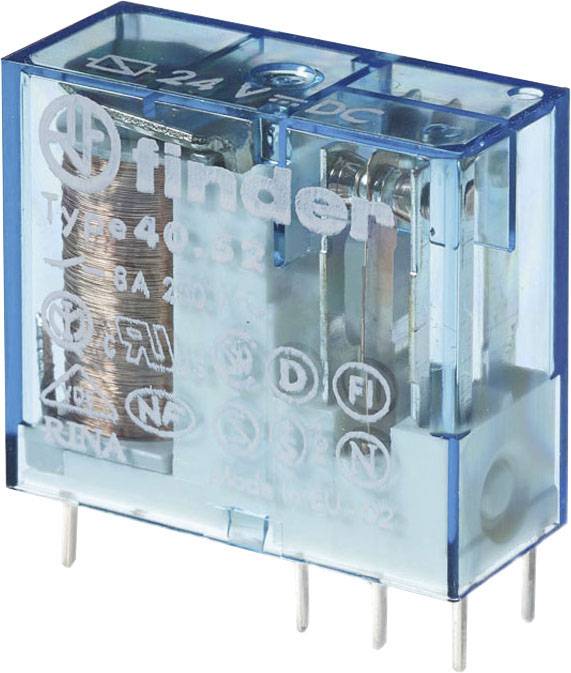

Finder 40.52.7.024.2000 PCB relay 24 V DC 8 A 2 change-overs 50 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
24 V DC
Contact type
2 change-overs
Switching current (max.)
8 A
Type
40.52.7.024.2000
Datasheet (PDF)
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With forced contacts: No.
- Type of switch contact: Single contact
- Complete unit with base: No.
- Product type
PCB relay
- Type
40.52.7.024.2000
- Coil nominal voltage
24 V DC
- Contact type
2 change-overs
- Switching current (max.)
8 A
IP20
- Width
12.4 mm
- Height
25 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 25 x 29 mm
- Content
50 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2474654 Finder 40.52.7.024.2000 PCB relay 24 V DC 8 A 2 change-overs 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2474654 Finder 40.52.7.024.2000 PCB relay 24 V DC 8 A 2 change-overs 50 pc(s)
Description
Plug-in/PCB relay 2 CO contact (AgCdO) for 8 A / 250 V AC, contact pin grid: 5.0 mm coil data 24 V DC, 0.5 W, 1150 ohm, relay protection type RT II.
