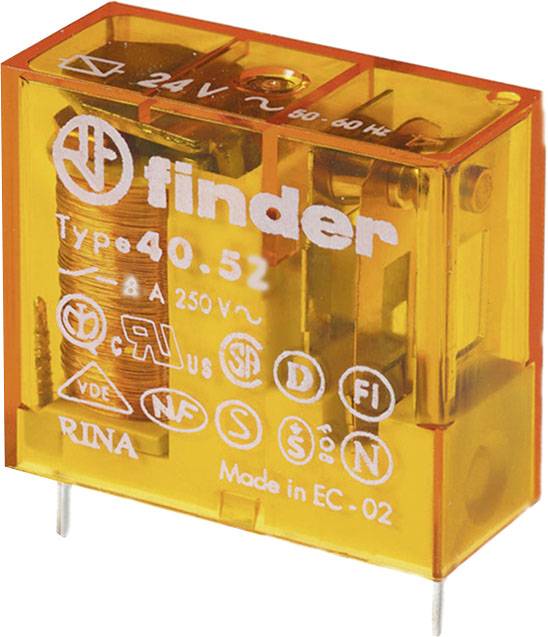

Finder 40.52.8.024.0300 PCB relay 24 V AC 8 A 2 makers 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
24 V AC
Contact type
2 makers
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Packaging type
Piece
- Product type
PCB relay
- Type
40.52.8.024.0300
- Coil nominal voltage
24 V AC
- Max. pick-up voltage
24 V AC
- Coil voltage rating
1.2 VA
- Contact type
2 makers
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Connection
Print
IP20
- Width
12.4 mm
- Height
25 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 25 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3323716 Finder 40.52.8.024.0300 PCB relay 24 V AC 8 A 2 makers 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3323716 Finder 40.52.8.024.0300 PCB relay 24 V AC 8 A 2 makers 1 pc(s) Piece
Description
Plug-in/PCB relay 2 NO (AgNi) for 8 A / 250 V AC, contact pin grid: 5.0 mm coil data 24 V AC, 1.2 VA, 320 Ohm, relay protection type: RT II.
