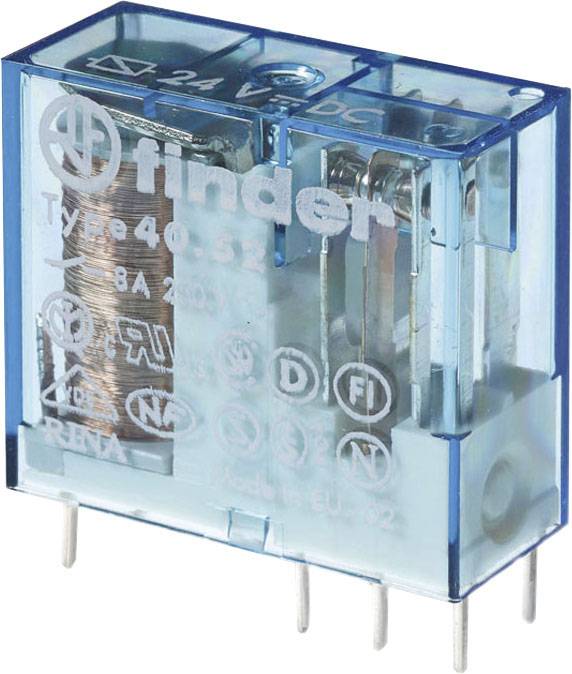

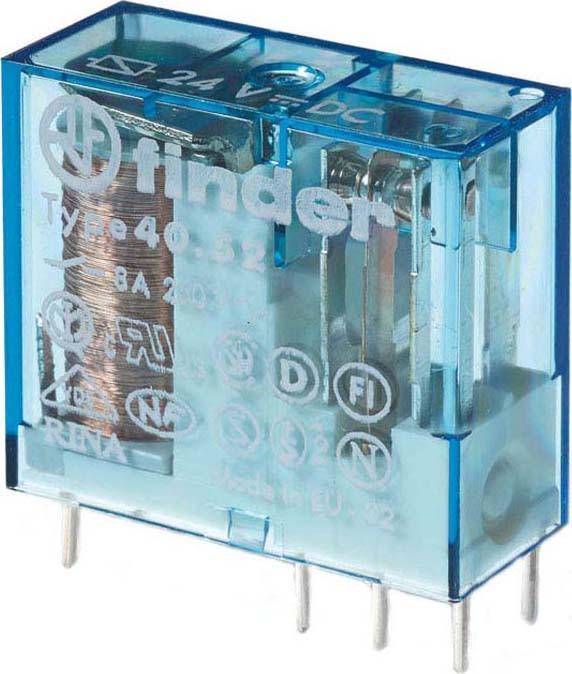

Finder 40.52.9.021.0000 PCB relay 4 V DC 8 A 2 change-overs 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
4 V DC
Contact type
2 change-overs
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
50
-
€ 5.03
150
6% = € 0.32
€ 4.71
250
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 50
Multiple: 50
Total (€ 5.03 / piece)
€ 251.50
plus VAT.
14 days return policy included
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Packaging type
Piece
- Product type
PCB relay
- Type
40.52.9.021.0000
- Coil nominal voltage
4 V DC
- Coil voltage rating
0.65 W
- Contact type
2 change-overs
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Connection
Jack connector
- Features
pluggable
IP20
- Length
29 mm
- Width
12.4 mm
- Height
25 mm
- Depth
29 mm
- Dim
(L x W x H) 29 x 12.4 x 25 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
8 A
12.4
25 mm
29 mm
15 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
21-21 V
DC
FALSE
15.3-31.5 V
DC
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3322993 Finder 40.52.9.021.0000 PCB relay 4 V DC 8 A 2 change-overs 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3322993 Finder 40.52.9.021.0000 PCB relay 4 V DC 8 A 2 change-overs 1 pc(s) Piece
Description
Plug-in/PCB relay 2 CO contact (AgNi) for 8 A / 250 V AC, contact pin grid: 5.0 mm coil data 21 V DC, 0.65 W, 700 Ohm, relay protection type: RT II.
