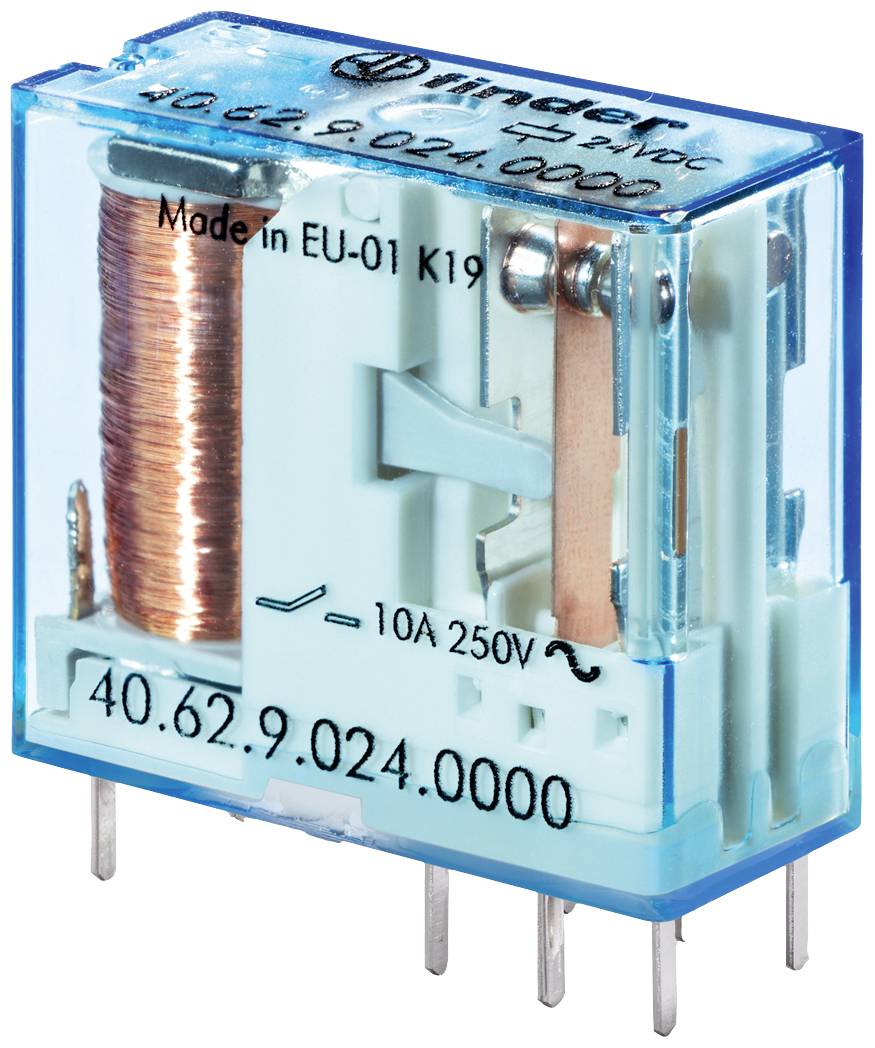

Finder 40.62.9.024.0000 PCB relay 24 V DC 10 A 2 change-overs 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
PCB relay
Coil nominal voltage
24 V DC
Control mode
monostable, 1 coil
Contact type
2 change-overs
Technical specifications
- Packaging type
Single
- Product type
PCB relay
- Type
40.62.9.024.0000
- Coil nominal voltage
24 V DC
- Control mode
monostable, 1 coil
- Coil voltage rating
0.65 W
- Contact type
2 change-overs
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Connection
Print
- Features
pluggable
IP20
- Width
12.4 mm
- Height
25 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 25 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
12.4 mm
25 mm
29 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Other
24-24 V
Untreated
IP20
FALSE
Other
DC
0
0
2
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219347 Finder 40.62.9.024.0000 PCB relay 24 V DC 10 A 2 change-overs 1 pc(s) Single
Description
Plug-in/PCB relay 2 CO contact (AgNi) for 10 A / 250 V AC, contact pin grid: 5.0 mm coil data 24 V DC, 0.65 W, 900 Ohm, relay protection type: RT II, meets EN 60335-1 = requirement for unsupervised house equipment (glow wire test)
