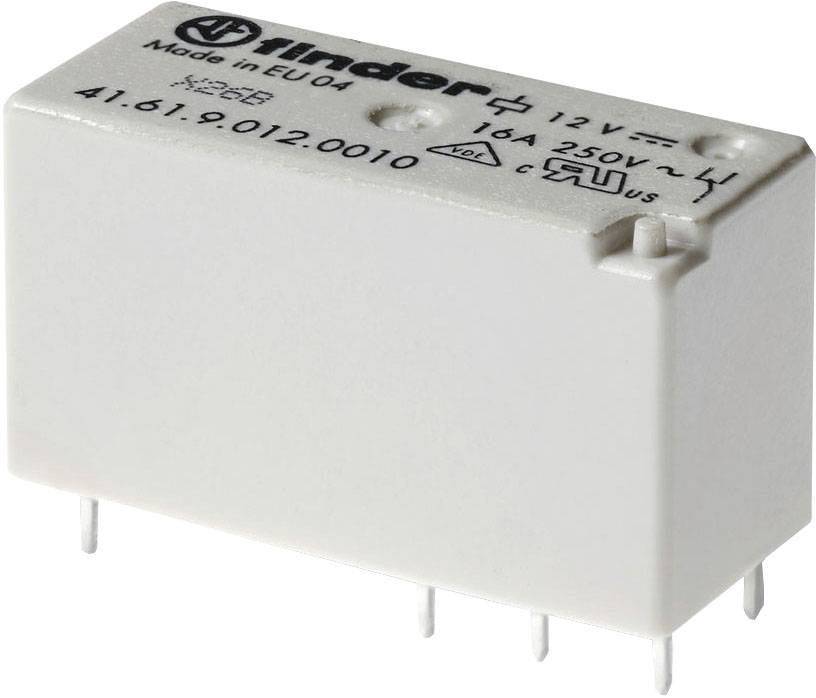

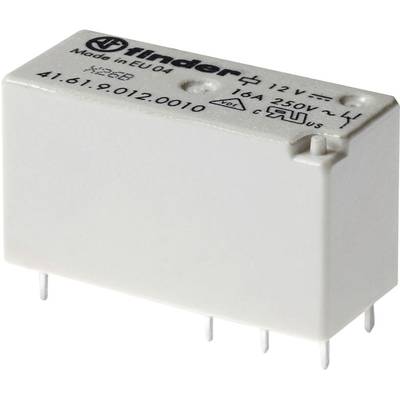

Finder 41.61.9.005.0010 PCB relay 5 V DC 16 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
5 V DC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
14-day return policy included
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
PCB relay
- Type
41.61.9.005.0010
- Coil nominal voltage
5 V DC
- Max. pick-up voltage
5 V DC
- Coil voltage rating
0.4 W
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Print
IP40
- Length
29 mm
- Width
12.6 mm
- Height
15.7 mm
- Depth
29 mm
- Dim
(L x W x H) 29 x 12.6 x 15.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323678 Finder 41.61.9.005.0010 PCB relay 5 V DC 16 A 1 change-over 1 pc(s)
Description
Low PCB relay 1 changer for 16 A / 250 V AC contact pin grid: 5.0 mm contact material AgNi, coil data 5 V DC, 0.4 W, 62 Ohm, relay protection type: RT II.
