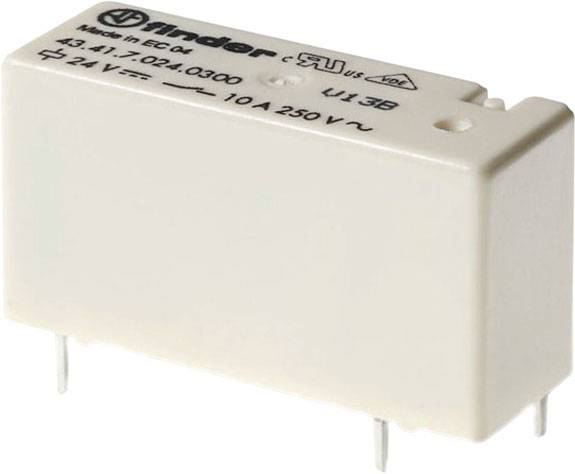

Finder 43.41.7.012.0000 PCB relay 12 V DC 10 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Type
43.41.7.012.0000
- Coil nominal voltage
12 V DC
- Contact type
1 change-over
- Switching current (max.)
10 A
- Connection
Print
IP40
- Width
10.2 mm
- Height
15.4 mm
- Depth
30.2 mm
- Dim
(W x H x D) 10.2 x 15.4 x 30.2 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
10.2
15.4 mm
28.6 mm
15 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
12-12 V
DC
FALSE
8.4-18 V
DC
0
0
1
- Product type
PCB relay
Description
Low PCB relay 1 changeover contact for 10 A /250 V AC contact pin grid: 3.2 mm contact material AgNi, coil data 12 V DC, 0.25 W, 580 Ohm, relay protection type: RT II.
