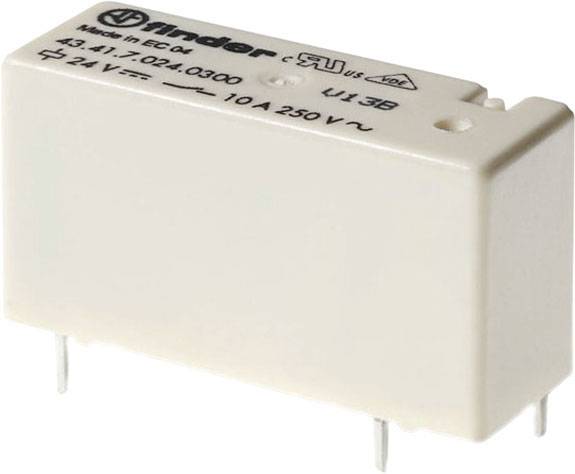

Image similar
Image similar
Finder 43.61.9.024.4300 PCB relay 24 V DC 16 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
24 V DC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 3.77
60
6% = € 0.24
€ 3.53
100
9% = € 0.34
€ 3.43
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Multiple: 20
Total (€ 3.77 / piece)
€ 75.40
plus VAT.
Highlights & Details
Our service for you
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
PCB relay
- Type
43.61.9.024.4300
- Coil nominal voltage
24 V DC
- Coil voltage rating
0.4 W
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Print
IP40
- Width
10.2 mm
- Height
15.4 mm
- Depth
30.2 mm
- Dim
(W x H x D) 10.2 x 15.4 x 30.2 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
16 A
10.2
15.4 mm
28.6 mm
25 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
24-24 V
DC
FALSE
16.8-28.8 V
DC
0
1
0
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323003 Finder 43.61.9.024.4300 PCB relay 24 V DC 16 A 1 maker 1 pc(s)
Description
Low print relay 1 normally open contact for 16 A /250 V AC contact pin grid 5.0 mm double pin execution. Contact material AgSnO2, coil data 24 V DC, 0.4 W, 1400 ohms, relay protection type RT II.
