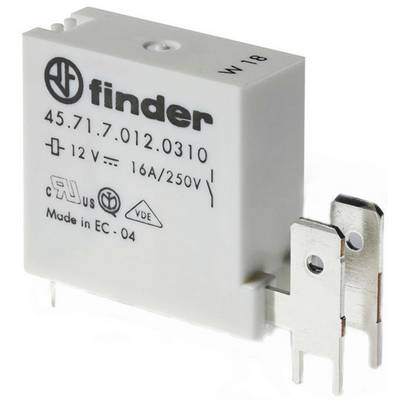

Finder 45.71.7.012.1310 PCB relay 12 V DC 16 A 1 maker 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Switching voltage (max.)
400 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details
Power relay with pcb and flat-plug connections, series 45
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
PCB relay
- Type
45.71.7.012.1310
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
8.4 V DC
- Max. pick-up voltage
14.4 V DC
- Resistance (coil)
400 Ω
- Coil voltage rating
0.36 W
- Contact type
1 maker
- Contact material
AgNi
- Switching voltage (max.)
400 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Creepage distance (coil/clips)
8 mm
- Connection
Print
- Insulation voltage
6 kV
Relay protection type RT II
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Length
40.70 mm
- Width
12.50 mm
- Height
28.50 mm
- Depth
40.7 mm
- Dim
(L x W x H) 40.70 x 12.50 x 28.50 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
