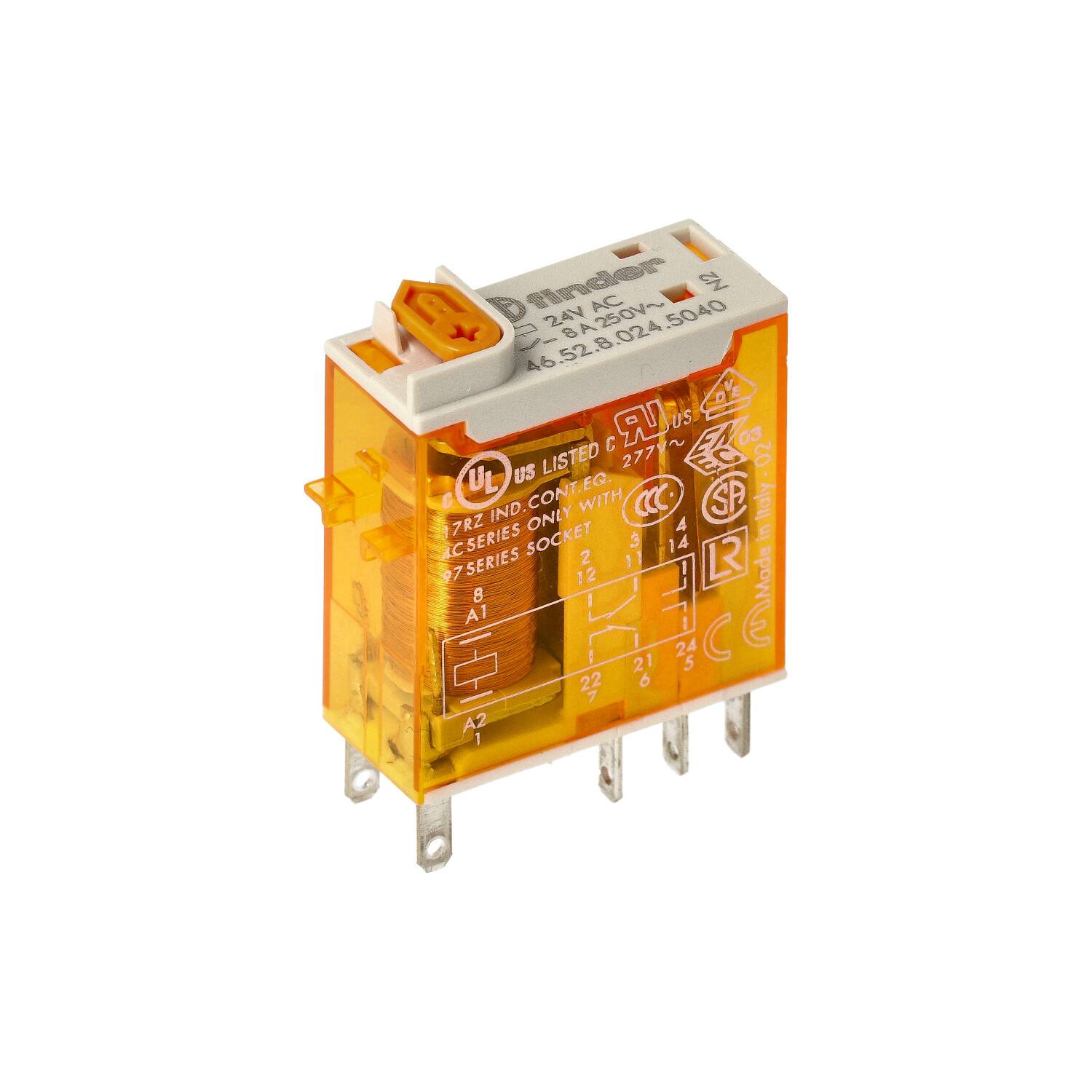

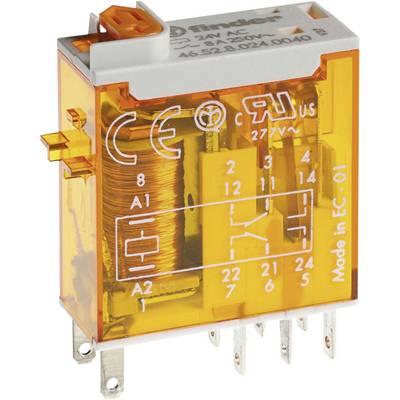

Finder 46.52.8.024.5040 Plug-in relay 24 V AC 8 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
24 V AC
Contact type
2 change-overs
Switching current (max.)
8 A
Connection
Jack connector
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 10 Piece(s) available
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
Plug-in relay
- Type
46.52.8.024.5040
- Coil nominal voltage
24 V AC
- Contact type
2 change-overs
- Switching current (max.)
8 A
- Connection
Jack connector
IP40
- Width
12.4 mm
- Height
32.8 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 32.8 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
8 A
12.4
32.8 mm
29 mm
15 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
24-24 V
24-24 V
Gold
AC
FALSE
19.2-26.4 V
19.2-26.4 V
AC
0
0
2
Description
Industrial miniature relay, 2 changeover contacts (AgNi hard gold-plated) for 8 A / 250 V AC, coil data 24 V AC, 1.2 VA 320 ohms, relay protection: RT II, hand-test button with lockable hand test button, mechanical display
