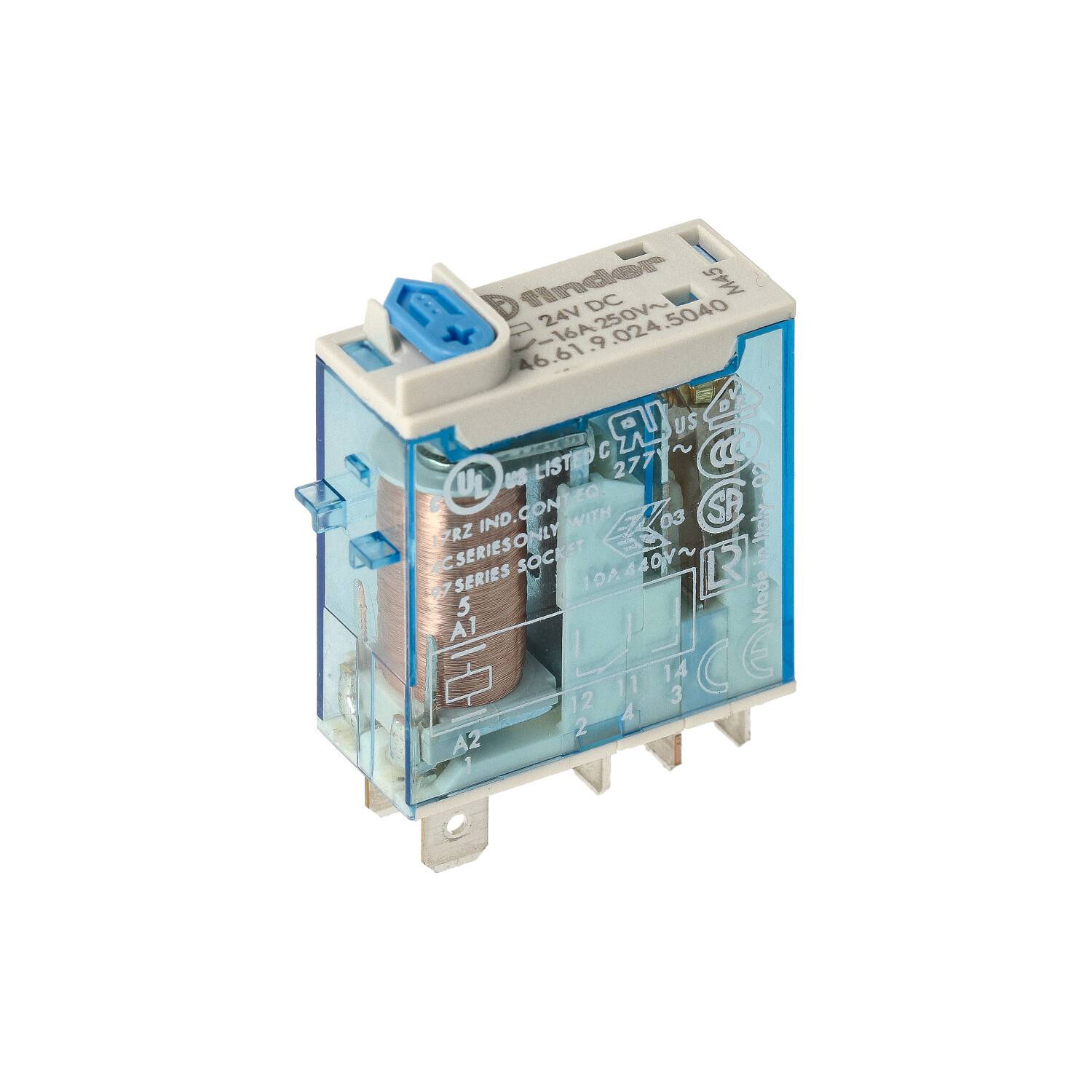

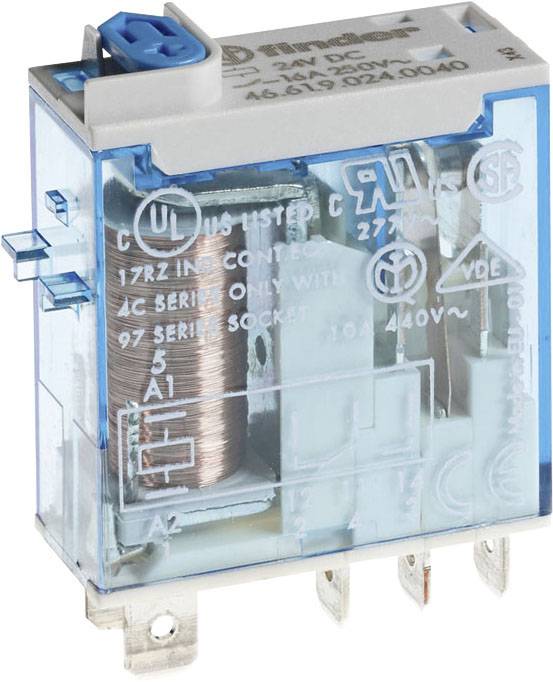

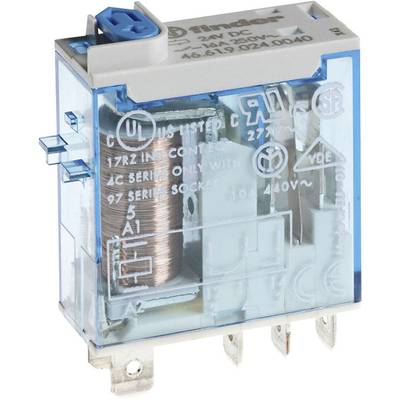

Finder 46.61.9.024.5040 Plug-in relay 24 V DC 16 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
24 V DC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 8.39
30
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 8.39 / piece)
€ 83.90
plus VAT.
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
Plug-in relay
- Type
46.61.9.024.5040
- Coil nominal voltage
24 V DC
- Coil voltage rating
0.5 W
- Contact type
1 change-over
- Contact material
AgNi hard gold plated
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Jack connector
IP40
- Width
12.4 mm
- Height
32.8 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 32.8 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
16 A
12.4
32.8 mm
29 mm
25 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
24-24 V
Gold
DC
FALSE
17.5-26.4 V
DC
0
0
1
Description
Industrial miniature relay, 1 CO contacts (AgNi hard gold plated) for 16 A / 250 V AC, Faston 187, coil data 24 V DC, 0.5 W 1200 Ohm, relay protection type: RT II, lockable hand-test button, mechanical display
