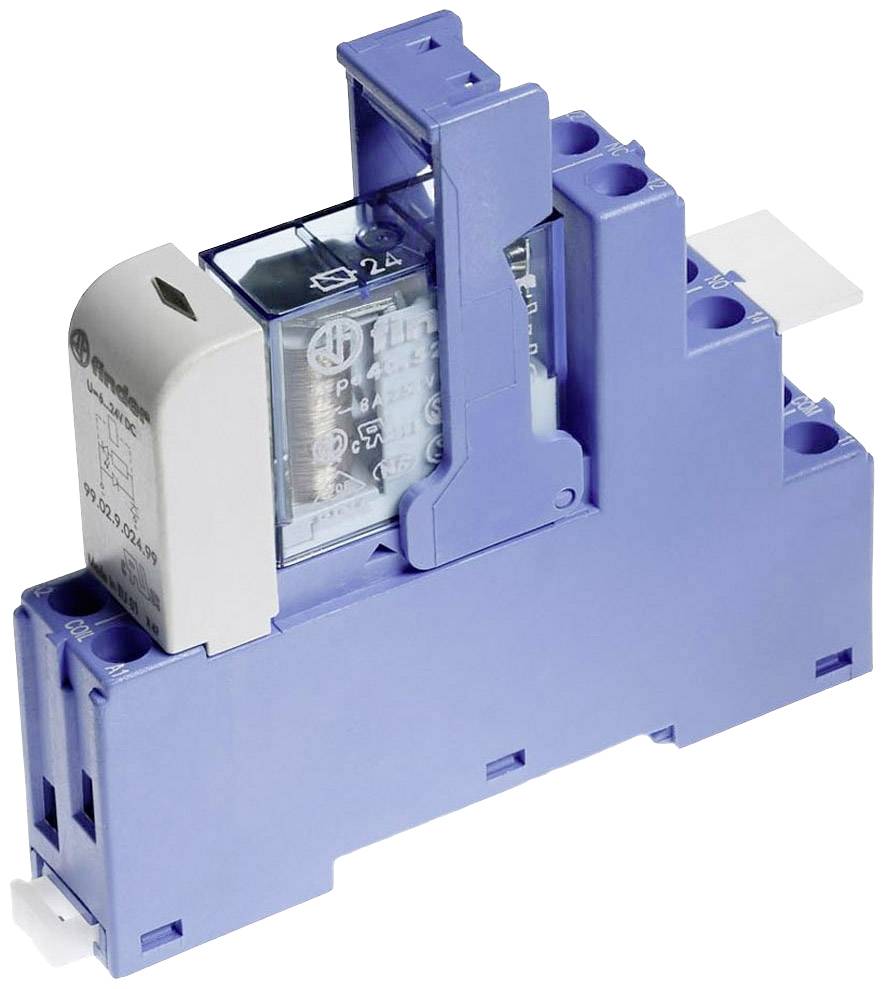

Finder 48.52.9.024.0050 Crossbar switch 24 V DC 8 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
Switching current (max.)
8 A
Technical specifications
- Product type
Crossbar switch
- Type
48.52.9.024.0050
- Connection
Screw terminal
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Features
+ LED
IP20
- Depth
75.3 mm
- Width
15.8 mm
- Height
78.6 mm
- Dim
(W x H x D) 15.8 x 78.6 x 75.3 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Control mode
monostable, 1 coil
8 A
15.8 mm
78.6 mm
75.3 mm
FALSE
Polarized
Mono stable
FALSE
Single contact
TRUE
Screw connection
24-24 V
Untreated
IP20
TRUE
Other
DC
0
0
2
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219484 Finder 48.52.9.024.0050 Crossbar switch 24 V DC 8 A 2 change-overs 1 pc(s)
Description
Coupling relays for DIN rail with screw terminals, 2 changer 8 A / 250 V AC, coil voltage 24 V DC, contact material AgNi, with integrated LED and EMC interference suppression.
