Finder 4C.02.9.024.5050 Crossbar switch 24 V DC 8 A 2 change-overs 10 pc(s)
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching current (max.)
8 A
Type
4C.02.9.024.5050
Technical specifications
- With removable terminals: No.
- Drive, polarity: Poled
- Switching behavior of the drive: Monostable
- With forced contacts: No.
- Type of switch contact: Single contact
- Complete unit with base: Yes
- Product type
Crossbar switch
- Type
4C.02.9.024.5050
- Connection
Screw terminal
- Contact type
2 change-overs
- Nominal voltage
24 V DC
- Switching current (max.)
8 A
- Features
+ LED
IP20
- Depth
68.1 mm
- Width
15.8 mm
- Height
82.9 mm
- Dim
(W x H x D) 15.8 x 82.9 x 68.1 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2474005 Finder 4C.02.9.024.5050 Crossbar switch 24 V DC 8 A 2 change-overs 10 pc(s)
Description

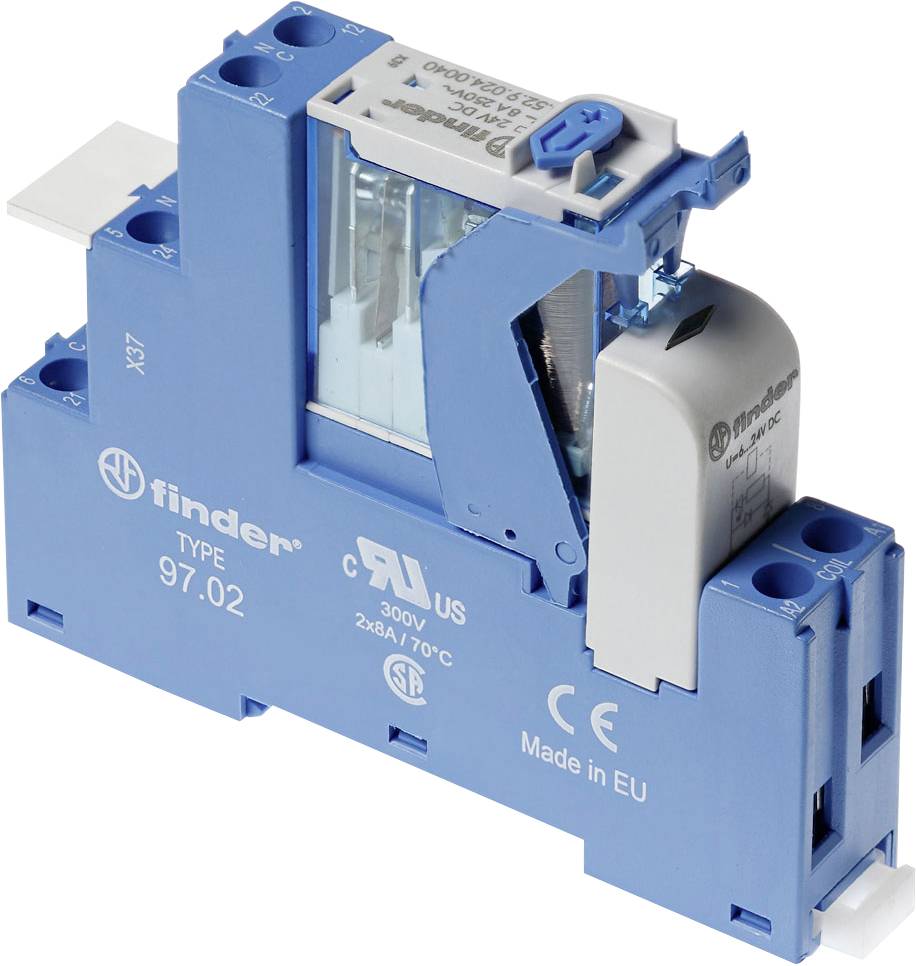

Coupling relay for DIN rail with screw terminals, 2 changeover contacts 8 A / 250 V AC coil voltage 24 V DC, contact material AgNi-hard gold plated, with integrated LED and EMC interference suppression
