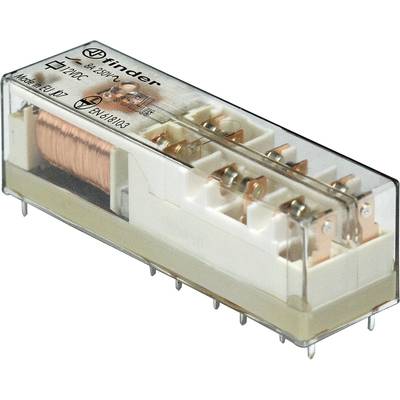

Finder 50.16.9.012.5420 PCB relay 12 V DC 8 A 2 breakers, 4 makers 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PCB relay
Coil nominal voltage
12 V DC
Contact type
2 breakers
4 makers
Switching current (max.)
8 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 26.04
30
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 26.04 / piece)
€ 260.40
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With forced contacts: Yes
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Packaging type
Piece
- Product type
PCB relay
- Type
50.16.9.012.5420
- Coil nominal voltage
12 V DC
- Coil voltage rating
0.8 W
- Contact type
2 breakers
4 makers
- Switching current (max.)
8 A
- Connection
Print
IP67
- Width
16.5 mm
- Height
16.5 mm
- Depth
55 mm
- Dim
(W x H x D) 16.5 x 16.5 x 55 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323423 Finder 50.16.9.012.5420 PCB relay 12 V DC 8 A 2 breakers, 4 makers 1 pc(s) Piece
Description
PCB relay with positively guided contacts according to EN 61810-3, type A, 4 NO contact/2 NC contact for 8 A, contact pin grid 5 mm, contact material AgSnO2, supply voltage 12 V DC, coil resistance 180 Ohm. Coil rating 0.8 W. Relay protection type RT III.
