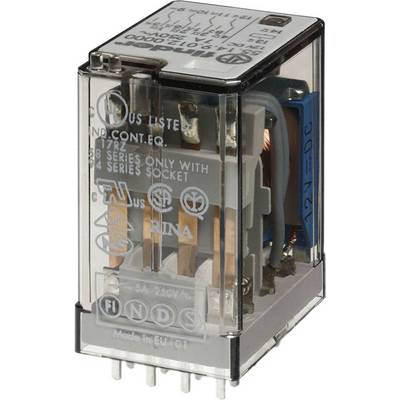

Finder 55.14.8.230.0000 PCB relay 230 V AC 7 A 4 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
230 V AC
Contact type
4 change-overs
Switching voltage (max.)
250 V AC
Switching current (max.)
7 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
PCB relay
- Type
55.14.8.230.0000
- Coil nominal voltage
230 V AC
- Coil voltage rating
1.5 VA
- Contact type
4 change-overs
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
7 A
- Connection
Print
IP20
- Width
20.7 mm
- Height
37.2 mm
- Depth
27.7 mm
- Dim
(W x H x D) 20.7 x 37.2 x 27.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
7 A
20.7
37.2 mm
27.7 mm
15 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
230-230 V
230-230 V
AC
FALSE
184-253 V
184-253 V
AC
0
0
4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323523 Finder 55.14.8.230.0000 PCB relay 230 V AC 7 A 4 change-overs 1 pc(s)
Description
Miniature PCB relay 4 changeover for 7 A / 250 V AC, contact material AgNi, coil data 230 V AC, 1.5 VA, 17000 Ohm, relay protection type: RT I
