Finder 58P480125060 Crossbar switch 12 V AC 7 A 4 change-overs Piece 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crossbar switch
Contact type
4 change-overs
Nominal voltage
12 V AC
Switching voltage (max.)
250 V AC
Number (Package size 10 pc(s))
Total (€ 21.01 / piece)
€ 210.08
plus VAT.
14-day return policy included
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: Yes
- Packaging type
Piece
- Product type
Crossbar switch
- Type
58P480125060
- Connection
Jack connector
- Max. pick-up voltage
12 V AC
- Contact type
4 change-overs
- Contact material
AgNi + hard gold plating
- Nominal voltage
12 V AC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
7 A
- Features
+ LED
IP20
- Depth
82.7 mm
- Width
31 mm
- Height
95.5 mm
- Dim
(W x H x D) 31 x 95.5 x 82.7 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3314717 Finder 58P480125060 Crossbar switch 12 V AC 7 A 4 change-overs Piece 10 pc(s)
Description

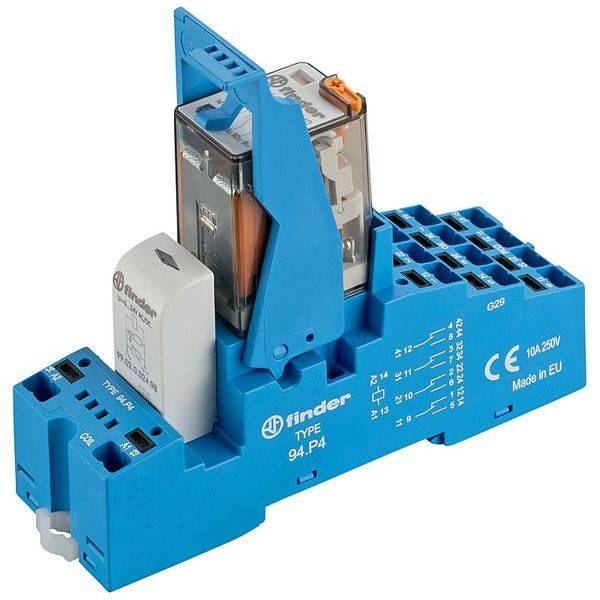

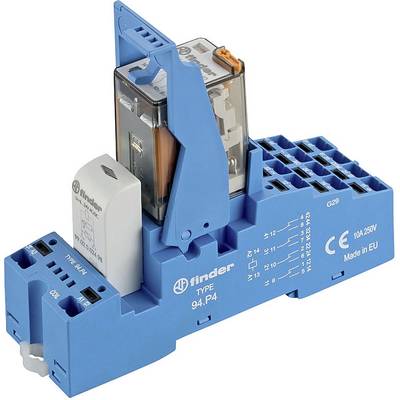

Interface relay for DIN rail with push-in connections, 4 CO contact 7 A / 250 V AC, contact material AgNi hard gold plated, coil voltage 12 V AC, with integrated LED and EMC interference suppression
