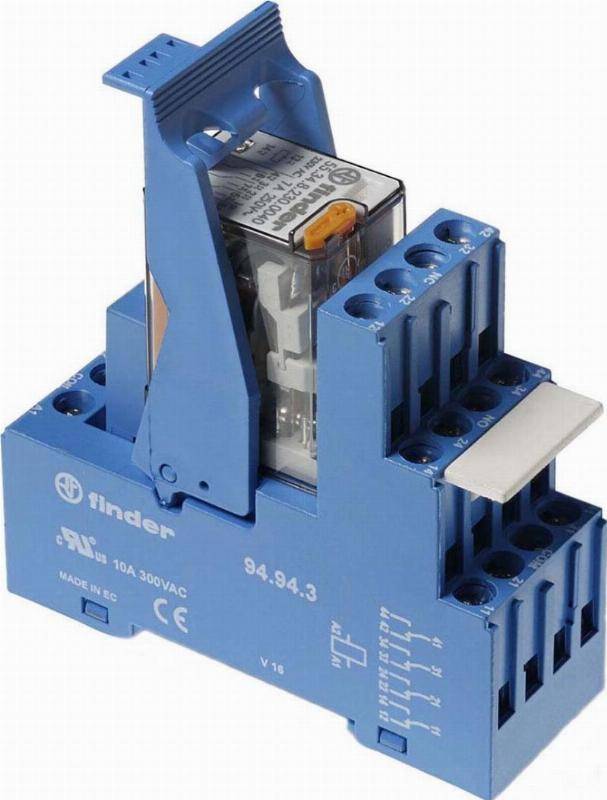

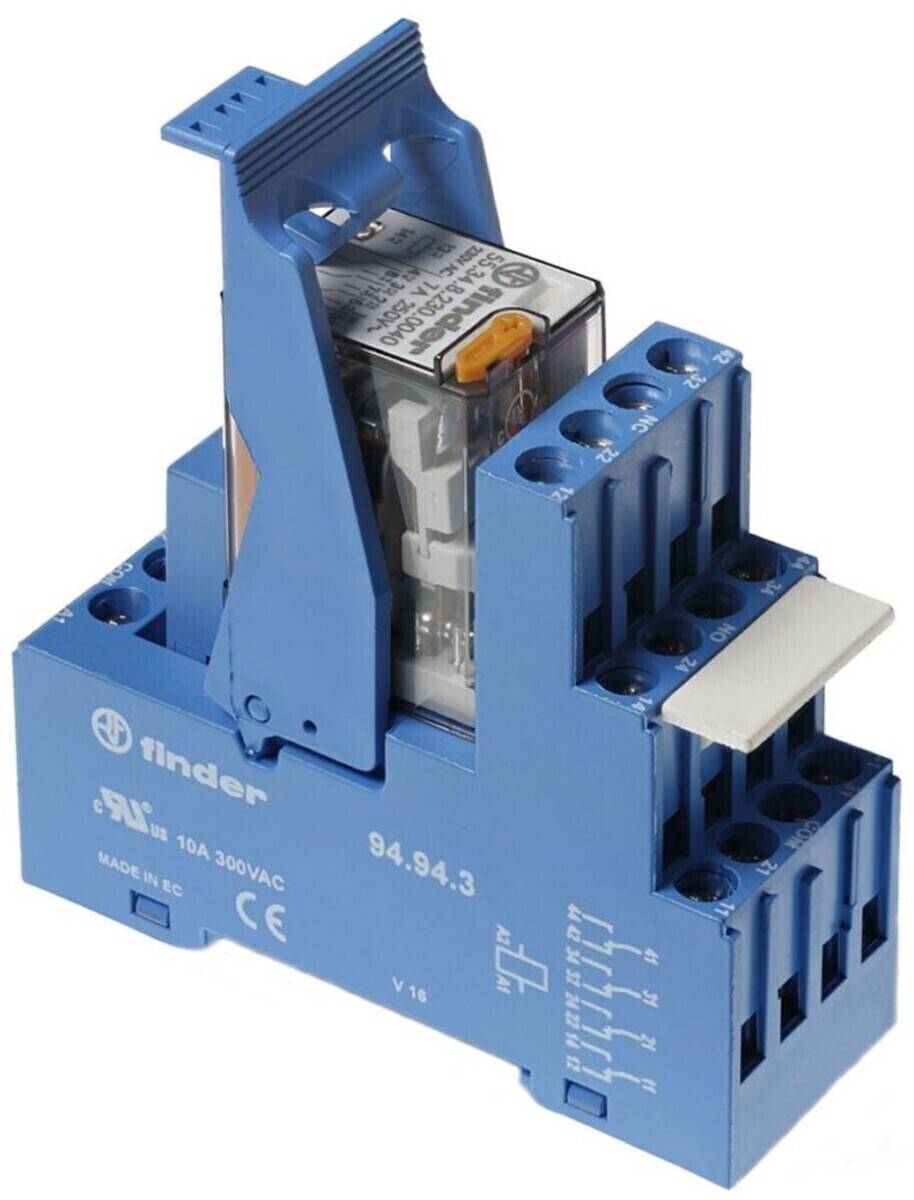

Finder 59.34.8.230.0060 7A Relay Interface Module N/A 230 V AC IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 19.32 / piece)
€ 23.52
-18 %
€ 19.32
plus VAT.
Highlights & Details
Finder 59.34.8.230.0060 7A Relay Interface Module N/A 230 V AC IP20
Technical specifications
- Height
86.1 mm
- Length
79.7 mm
- Width
27 mm
IP20
- Contact type
4 change-overs
- Type
AC-coil
- Nominal voltage
230 V AC
- Max. pick-up voltage
253 V AC
- Min. pick-up voltage
184 V AC
- Resistance (coil)
17000 Ω
- Switching current (max.)
7 A
- Switching voltage (max.)
250 V AC
- Nominal voltage (details)
230 V AC
- Nominal current (details)
7 A
- Switching capacity
(AC1) 7 A/250 V AC
- Voltage range
184 - 253 V
- Type
59.34.8.230.0060
- Max. switching capacity
1750 VA
- Durability
(AC/DC) 20 x 10650 x 106 Switching cycles:
- Electrical lifespan
(AC1) 200 x 103 Switching cycles:
- Contact material
AgNi
- Weight
1161.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 502792 Finder 59.34.8.230.0060 7A Relay Interface Module N/A 230 V AC IP20
User & Safety Instructions
User & Safety Instructions 502792 Finder 59.34.8.230.0060 7A Relay Interface Module N/A 230 V AC IP20
Description
Coupling relay 27 mm wide EMV-protective circuit with LED and varistor.
Features
- Relay 55.34
- With lockable test button and mechanical switching position display.
Hints
Approvals: UL, CSA. Relay: VDE, UL, CSA, RINA, GOST, FI, IMQ, S, Nemko, Semko, BEAB, B. Specifications for voltage range at 20 °C. Please order the labelling plate separately under Order No. 50 26 71.
