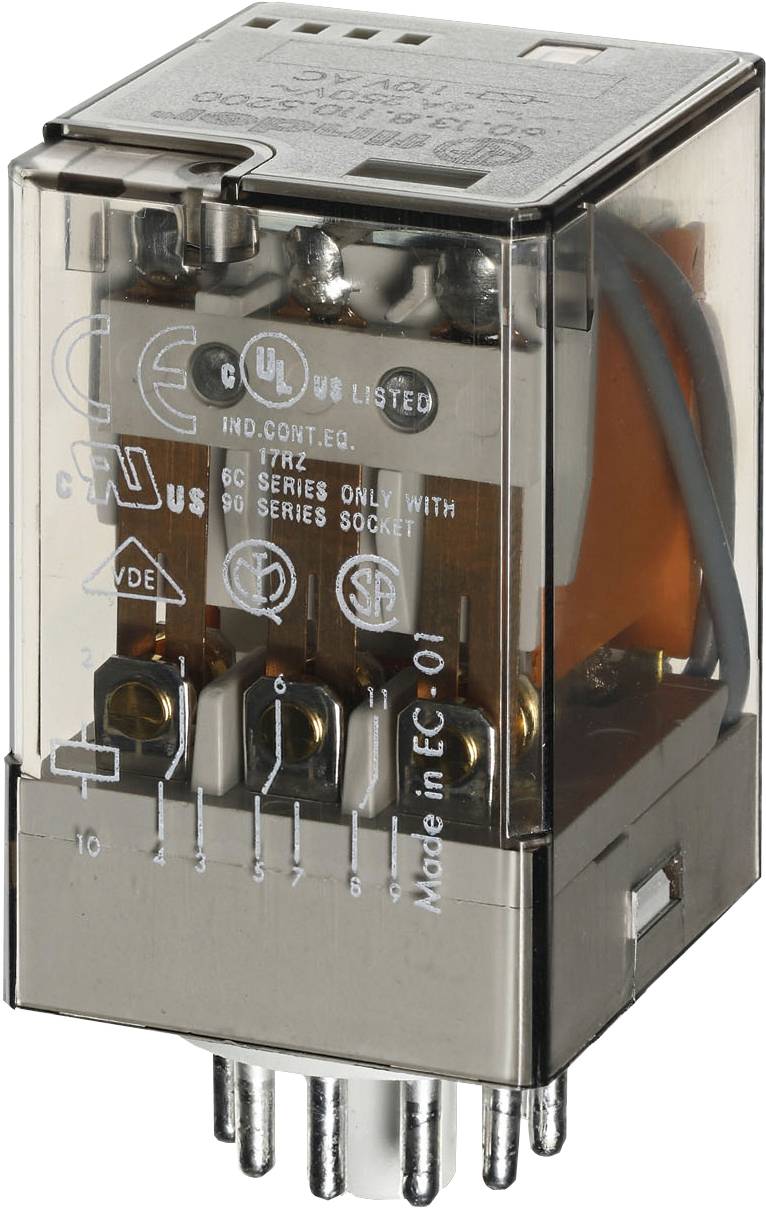

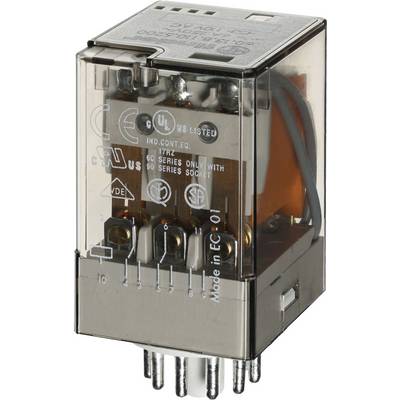

Finder 60.13.8.048.0040 Plug-in relay 48 V AC 10 A 3 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
48 V AC
Contact type
3 change-overs
Switching current (max.)
10 A
Connection
Jack connector
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
Plug-in relay
- Type
60.13.8.048.0040
- Coil nominal voltage
48 V AC
- Contact type
3 change-overs
- Switching current (max.)
10 A
- Connection
Jack connector
IP20
- Width
32.5 mm
- Height
54.2 mm
- Depth
36.4 mm
- Dim
(W x H x D) 32.5 x 54.2 x 36.4 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
32.5
54.2 mm
36.4 mm
20 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
48-48 V
48-48 V
AC
FALSE
38.4-52.8 V
38.4-52.8 V
AC
0
0
3
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323105 Finder 60.13.8.048.0040 Plug-in relay 48 V AC 10 A 3 change-overs 1 pc(s)
Description
Industrial plug-in relay 3 changer for 10 A / 250 V AC, contact material AgNi, coil data 48 V AC, 2.2 VA, 290 Ohm, lockable/momentary action and mechanical display, relay protection type: RT I
