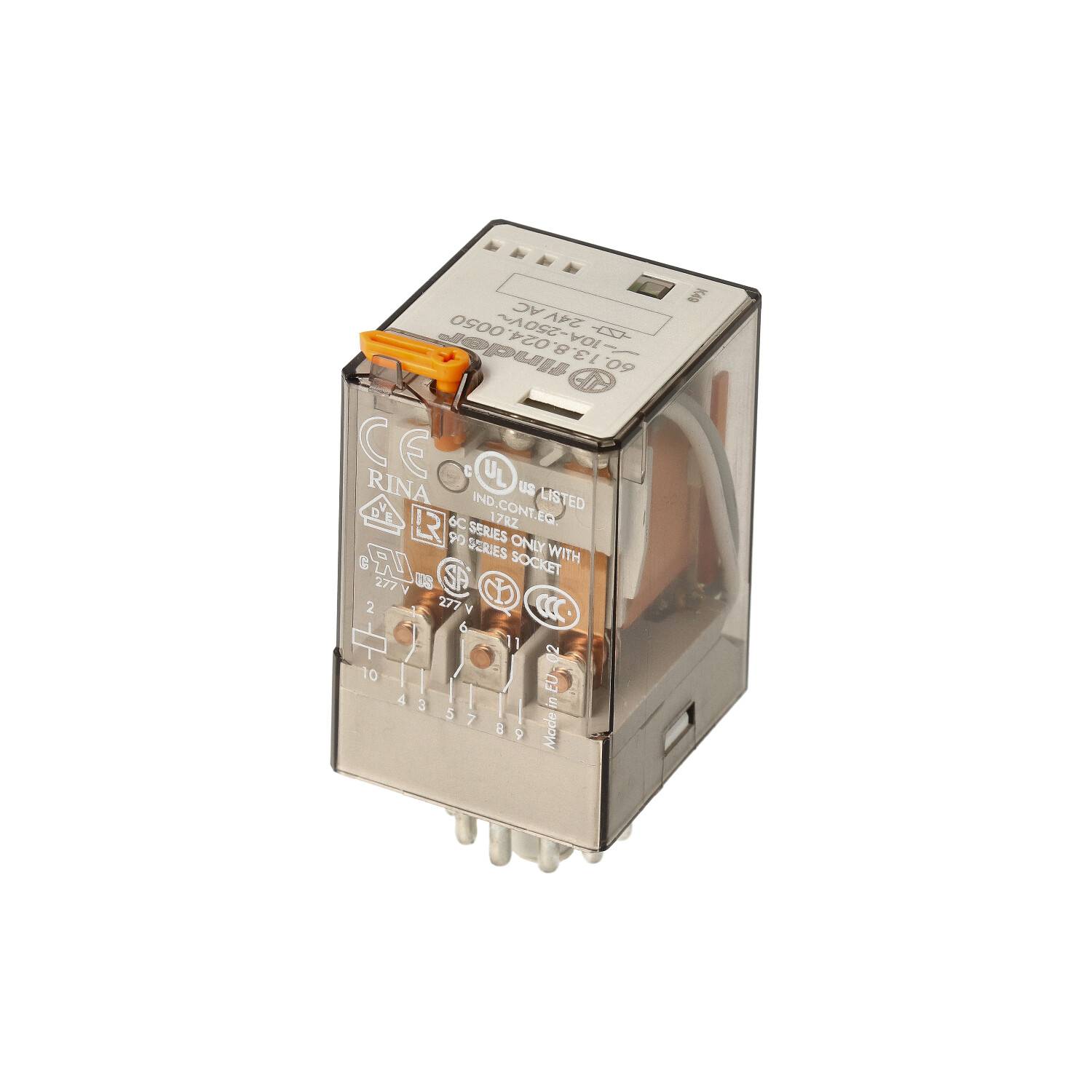

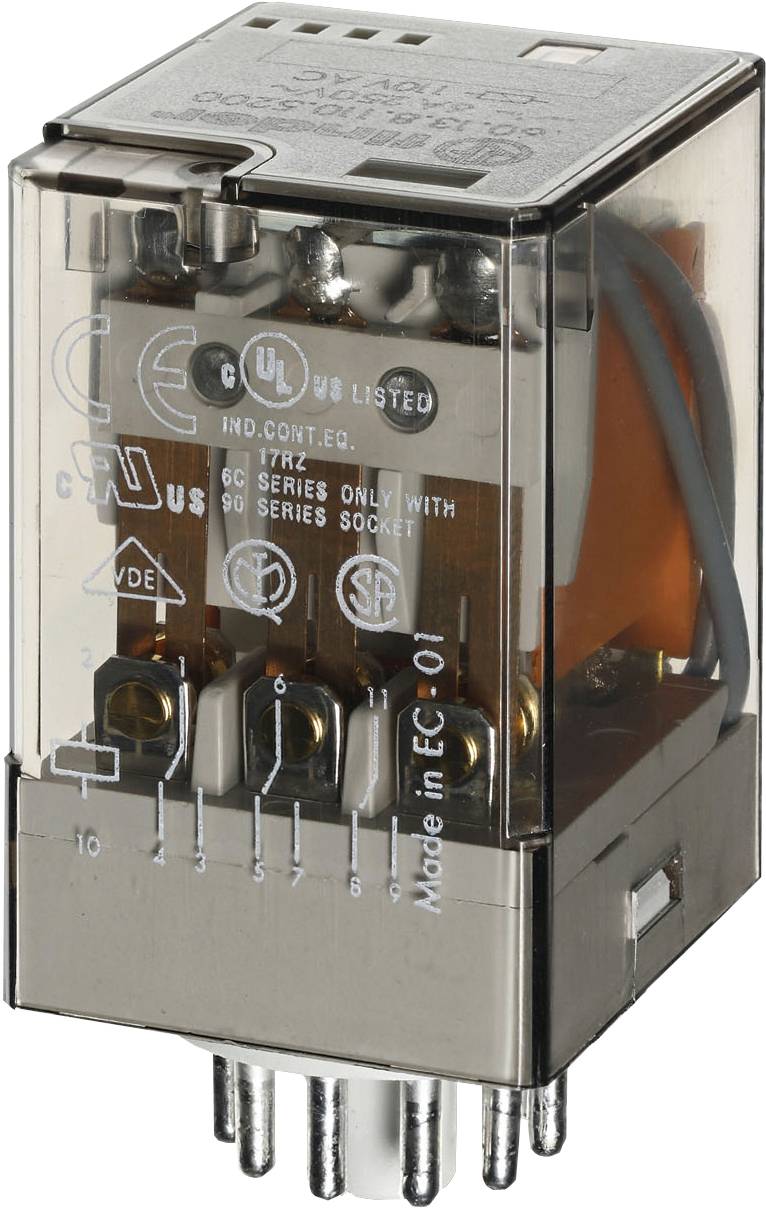

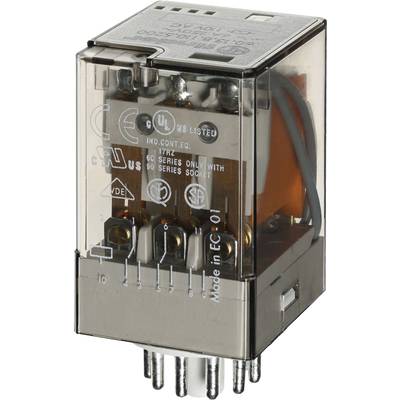

Finder 60.13.8.110.0050 Plug-in relay 110 V AC 10 A 3 change-overs 1 pc(s)
EAN:
Part number:
Item no:
4 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€
Only 4 Piece(s) available
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Type
60.13.8.110.0050
- Coil nominal voltage
110 V AC
- Contact type
3 change-overs
- Switching current (max.)
10 A
- Connection
Connector
- Features
+ LED
IP20
- Width
32.5 mm
- Height
54.2 mm
- Depth
36.4 mm
- Dim
(W x H x D) 32.5 x 54.2 x 36.4 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
32.5
54.2 mm
36.4 mm
20 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
110-110 V
110-110 V
AC
TRUE
88-121 V
88-121 V
AC
0
0
3
- Product type
Plug-in relay
Description
Industrial plug-in relay 3 changer for 10 A / 250 V AC, contact material AgNi, coil data 110 V AC, 2.2 VA, 1600 Ohm, lockable/momentary action and LED display, relay protection type: RT I
