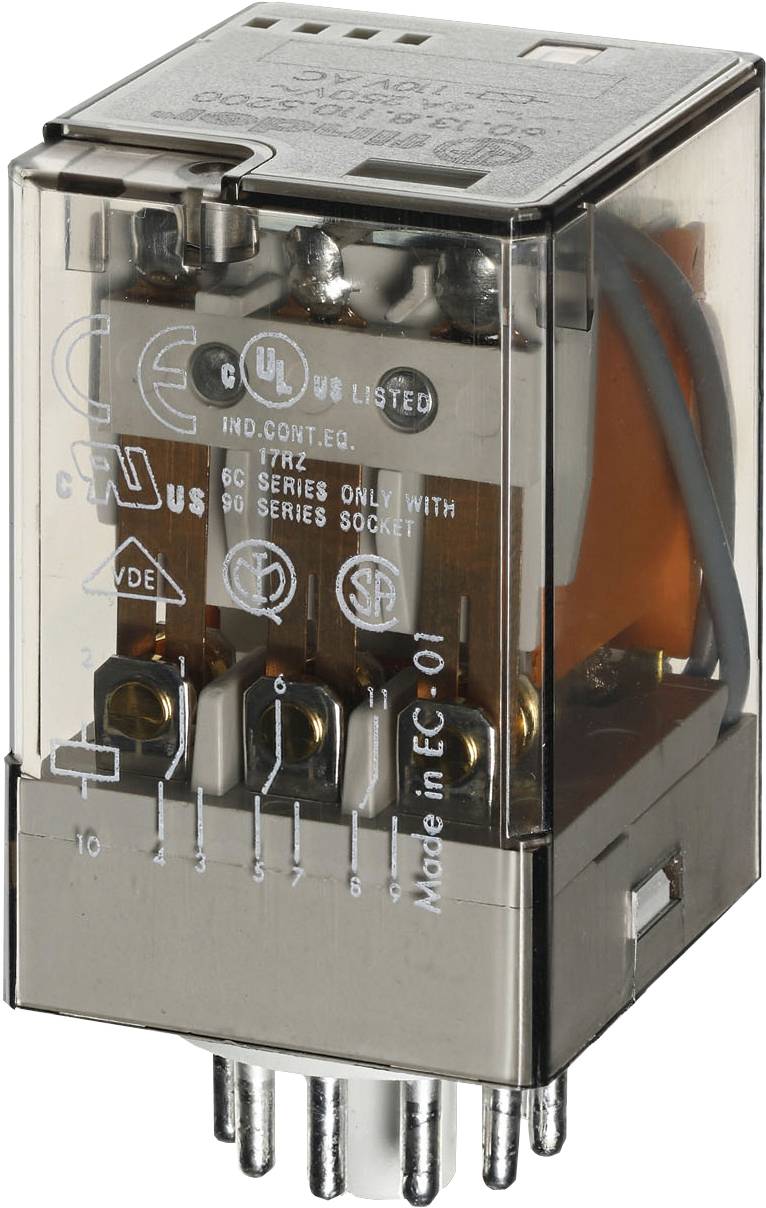

Finder 60.13.8.230.5054 Plug-in relay 230 V AC 10 A 3 change-overs 10 pc(s)
Item no:
Product type
Plug-in relay
Coil nominal voltage
230 V AC
Contact type
3 change-overs
Switching current (max.)
10 A
Connection
Connector
Show alternatives
Sales and shipping:
Total (€ 23.95 / piece)
€
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With forced contacts: No.
- Type of switch contact: Single contact
- Complete unit with base: No.
- Product type
Plug-in relay
- Type
60.13.8.230.5054
- Coil nominal voltage
230 V AC
- Contact type
3 change-overs
- Switching current (max.)
10 A
- Connection
Connector
- Features
+ LED
IP20
- Width
32.5 mm
- Height
54.2 mm
- Depth
36.4 mm
- Dim
(W x H x D) 32.5 x 54.2 x 36.4 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
Description
Industrial plug-in relay 3 CO contact for 10 A / 250 V AC, contact material AgNi hard gold-plated, coil data 230 V AC, 2.2 VA, 7250 Ohm, lockable/momentary action and mechanical indicator, relay protection type: RT I.
