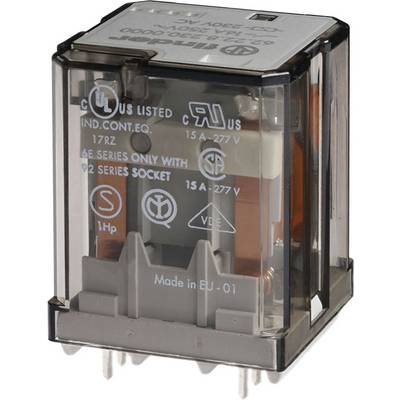

Finder 62.22.8.110.4300 PCB relay 110 V AC 16 A 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
110 V AC
Contact type
2 makers
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 15.12
30
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 15.12 / piece)
€ 151.20
plus VAT.
Highlights & Details
Our service for you
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
PCB relay
- Type
62.22.8.110.4300
- Coil nominal voltage
110 V AC
- Max. pick-up voltage
110 V AC
- Coil voltage rating
3 VA
- Contact type
2 makers
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Print
IP20
- Width
38.2 mm
- Height
47.6 mm
- Depth
35.8 mm
- Dim
(W x H x D) 38.2 x 47.6 x 35.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Description
PCB contactor 2 normally open contact for 16 A/250 V AC contact opening greater than 3 mm, contact material AgSnO2, coil data 110 V AC, 3 VA, 1200 ohms, relay protection: RT I
