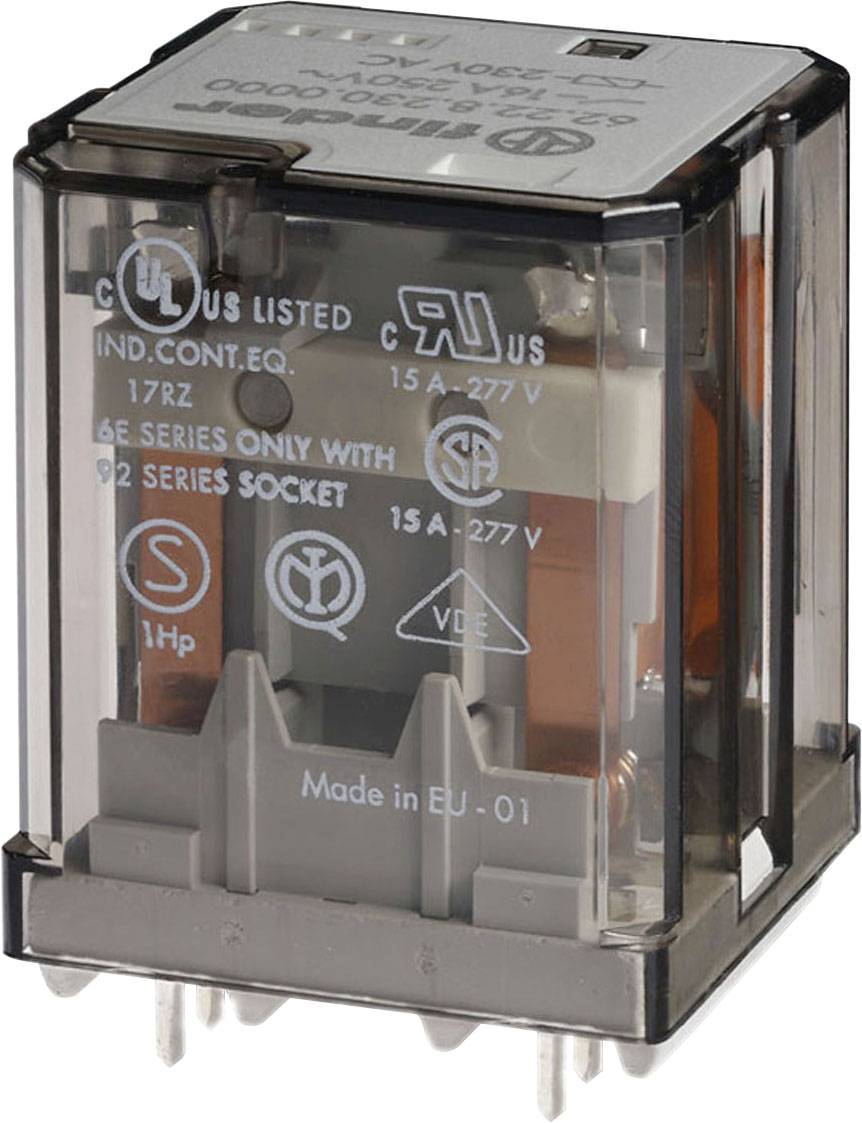

Finder 62.22.8.230.4300 PCB relay 230 V AC 16 A 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
230 V AC
Contact type
2 makers
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 17.99 / piece)
€ 179.90
incl. VAT
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
PCB relay
- Type
62.22.8.230.4300
- Coil nominal voltage
230 V AC
- Coil voltage rating
3 VA
- Contact type
2 makers
- Contact material
AgSnO2
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Print
IP20
- Width
38.2 mm
- Height
47.6 mm
- Depth
35.8 mm
- Dim
(W x H x D) 38.2 x 47.6 x 35.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
16 A
38.2
49.1 mm
35.8 mm
120 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
230-230 V
230-230 V
AC
FALSE
196-253 V
196-253 V
AC
0
2
0
Description
PCB contactor 2 normally open contact for 16 A/250 V AC contact opening greater than 3 mm, contact material AgSnO2, coil data 230 V AC, 3 VA, 5000 ohms, relay protection: RT I
This text is machine translated.
This text is machine translated.
