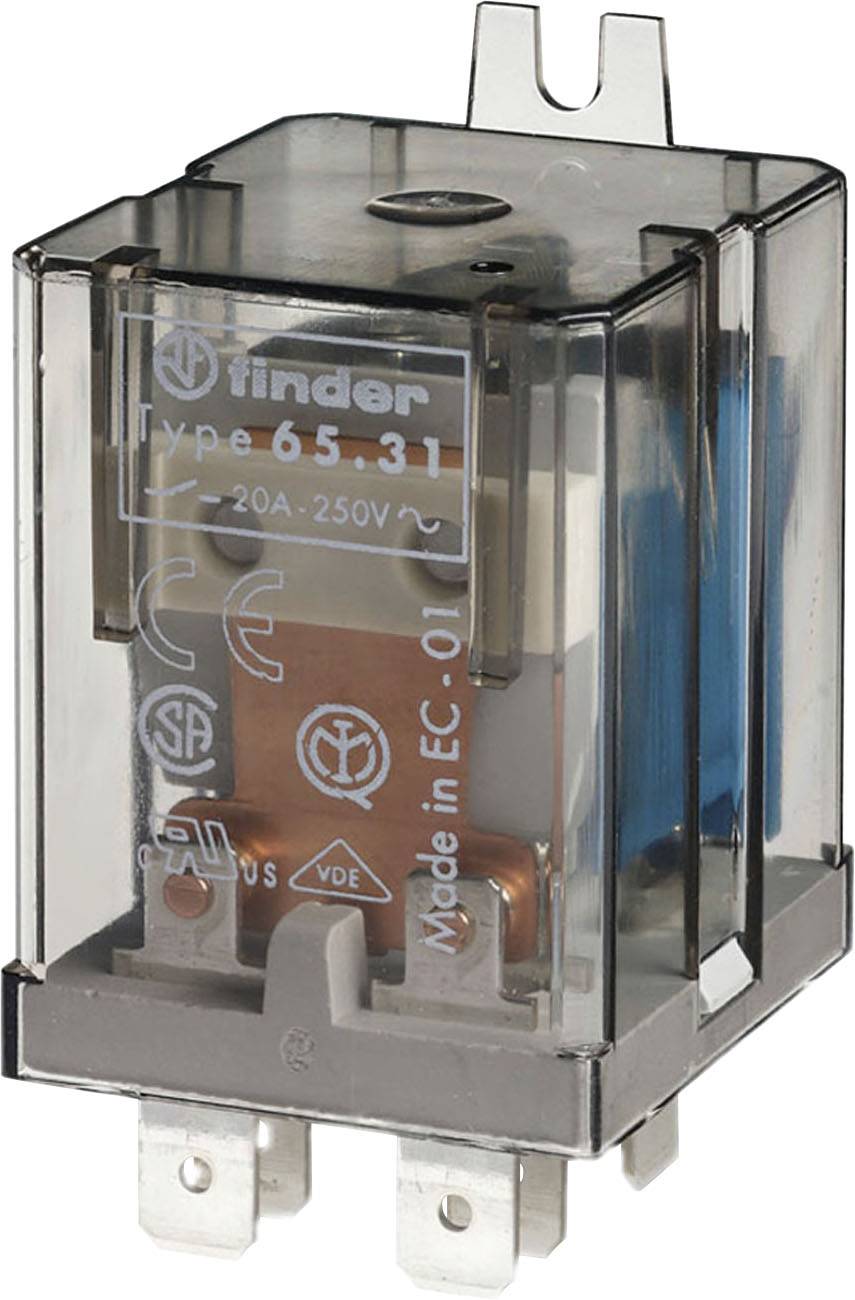

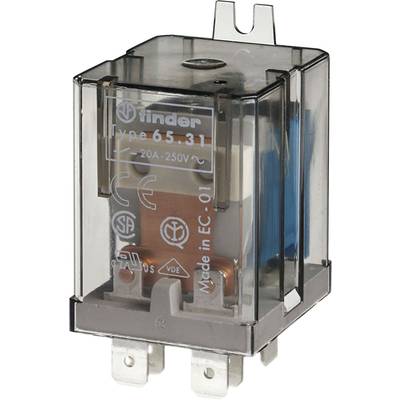

Finder 65.31.8.110.0300 Plug-in relay 110 V AC 30 A 1 maker 10 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plug-in relay
Coil nominal voltage
110 V AC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With forced contacts: No.
- Type of switch contact: Single contact
- Complete unit with base: No.
- Packaging type
Piece
- Product type
Plug-in relay
- Type
65.31.8.110.0300
- Coil nominal voltage
110 V AC
- Max. pick-up voltage
110 V AC
- Coil voltage rating
2.2 VA
- Contact type
1 maker
- Contact material
AgCdO
- Switching voltage (max.)
250 V AC
- Switching current (max.)
30 A
- Connection
CEE 7/16 CEE plug
IP20
- Width
32.2 mm
- Height
52.2 mm
- Depth
36.5 mm
- Dim
(W x H x D) 32.2 x 52.2 x 36.5 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2474825 Finder 65.31.8.110.0300 Plug-in relay 110 V AC 30 A 1 maker 10 pc(s) Piece
Description
Power relay 1 NO for 30 A / 250 V AC, with Faston 250 (6.3 x 0.8 mm), contact opening distance greater than 3 mm, contact material AgCdO, coil data 110 V AC, 2.2 VA, 1600 Ohm, mounting flange on the back, relay protection type: RT I.
