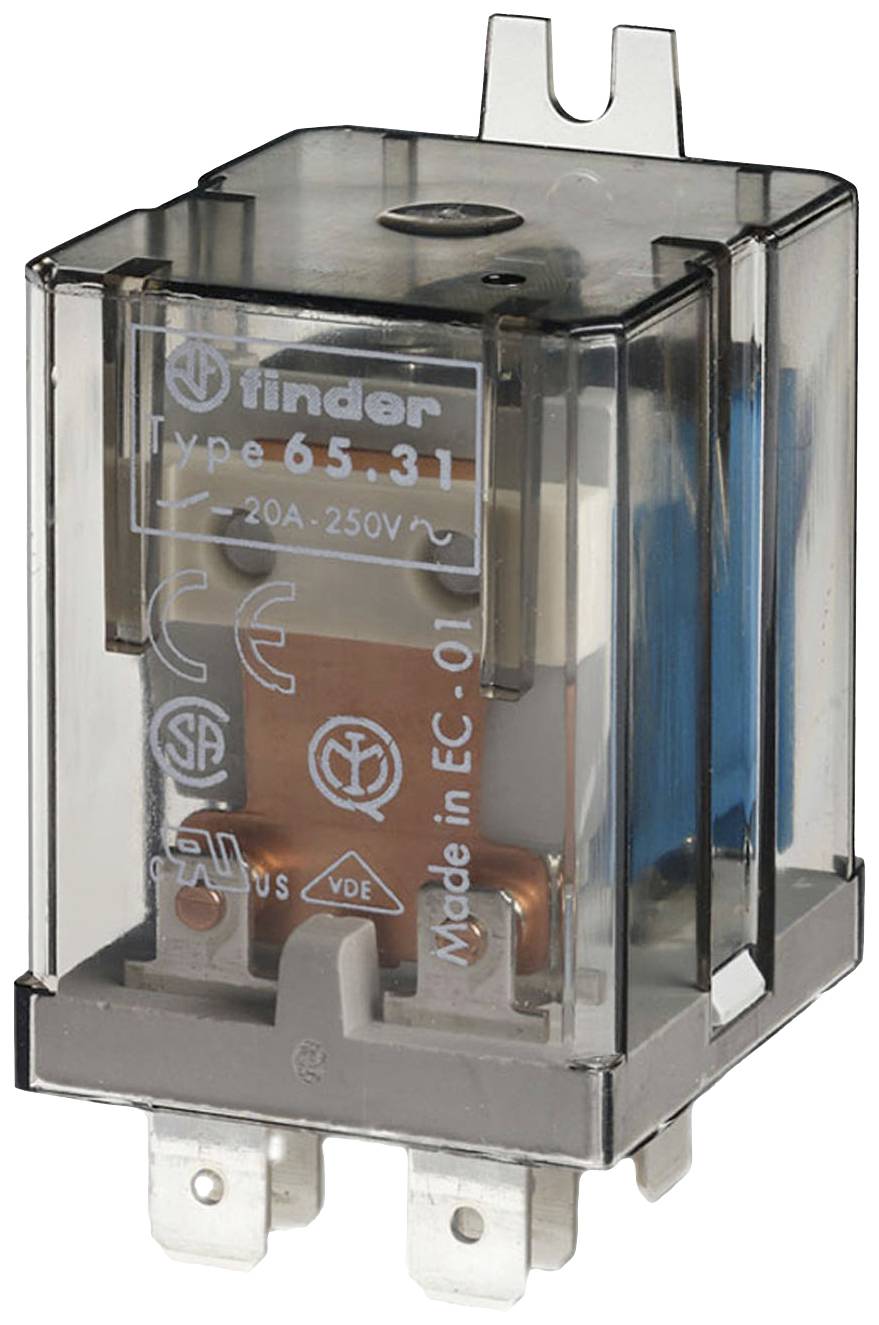

Finder 65.31.9.024.4309 Plug-in relay 24 V DC 30 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
24 V DC
Contact type
1 maker
Switching voltage (max.)
400 V AC
Switching current (max.)
30 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
Power relay series 65
- A rated contacts
- Flange mount/Faston 250 (6.3x0.8 mm) connection
- ≥ 3 mm contact gap
Technical specifications
- Relay protection: RT I
- Product type
Plug-in relay
- Type
65.31.9.024.4309
- Coil nominal voltage
24 V DC
- Min. pick-up voltage
20.4 V DC
- Max. pick-up voltage
26.4 V DC
- Resistance (coil)
445 Ω
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
400 V AC
- Switching current (max.)
30 A
- Max. switching capacity
7500 VA
- Electrical lifespan
80 x 103 Switching operations
- Durability
(AC/DC) 10 x 106/30 x 106 switching operations
Relay protection type RT I
- Min. temperature
-40 °C
- Max. temperature
+75 °C
- Length
36.50 mm
- Width
32.20 mm
- Height
42.20 mm
- Dim
(L x W x H) 36.50 x 32.20 x 42.20 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Faston-connections
- Switching voltage
250 V AC
- Connection
Faston connections 250 (6.35 x 0.8 mm).
- Temperature range
-40 - +75 °C
30 A
32.2
52.2 mm
36.5 mm
120 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Flat plug-in connection
24-24 V
DC
FALSE
20.4-26.4 V
DC
0
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3024154 Finder 65.31.9.024.4309 Plug-in relay 24 V DC 30 A 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3024154 Finder 65.31.9.024.4309 Plug-in relay 24 V DC 30 A 1 maker 1 pc(s)
Description
Hints
Approvals: VDE, UL, CSA, Semko, IMQ, S. specifications for voltage range at 20 °C.
