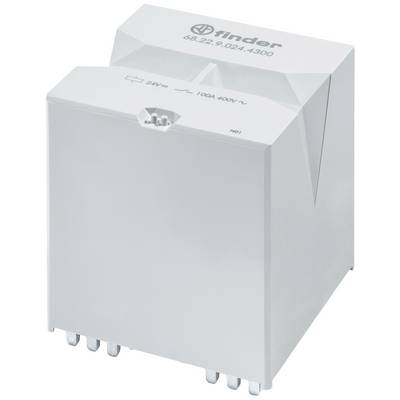

Finder 68.22.9.024.4300 High-performance print relay 400 V AC 100 A 2 makers 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
High-performance print relay
Coil nominal voltage
400 V AC
Contact type
2 makers
Switching voltage (max.)
690 V AC
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
High-performance print relay
- Type
68.22.9.024.4300
- Coil nominal voltage
400 V AC
- Min. pick-up voltage
21.6 V DC
- Max. pick-up voltage
26.4 V DC
- Coil voltage rating
2.9 W
- Contact type
2 makers
- Contact material
AgSnO2
- Switching voltage (max.)
690 V AC
- Switching current (max.)
100 A
- Max. switching capacity
40000 VA
- Connection
Print
Relay protection type RT II
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Length
52.5 mm
- Width
52.5 mm
- Height
57.5 mm
- Dim
(L x W x H) 52.5 x 52.5 x 57.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2638137 Finder 68.22.9.024.4300 High-performance print relay 400 V AC 100 A 2 makers 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2638137 Finder 68.22.9.024.4300 High-performance print relay 400 V AC 100 A 2 makers 1 pc(s) Piece
Description
High performance relay for PCB for use in inverters or load columns, 2 NO for 100 A (AC1), max. inrush current 300 A - 1 ms, bridge contacts, contact material AgSnO2, contact opening greater than 3.6 mm, nominal voltage 400 V AC, max. switching voltage 690 V AC, max. switching capacity AC1/AC7a (400 V AC) 40,000 VA (per contact), Max. switching power AC15 (230 V AC) 4,600 VA. 1-phase motor load, AC3 duty (230 V AC) 2.2 kW, minimum switching load 1000 mW at 10 V/10 mA, environmental temperature -40 up to + 70 °C at max. Contact current and activation within the working range, ambient temperature up to 85 °C in power-saving mode. Max. Continuous contact current, control range and operation at fixed voltage range, nominal coil power 2.9 W, minimum holding power 0.7 W, coil voltage 24 V DC, standard operation: Working range 0.90 to 1.1 x Un in the power saving mode 0.95 to 2.5 x Un in (less than 1 s), fixing voltage range 0.5 x Un, distance between circuit board and relay base plate for air circulation is 1.5 mm.
