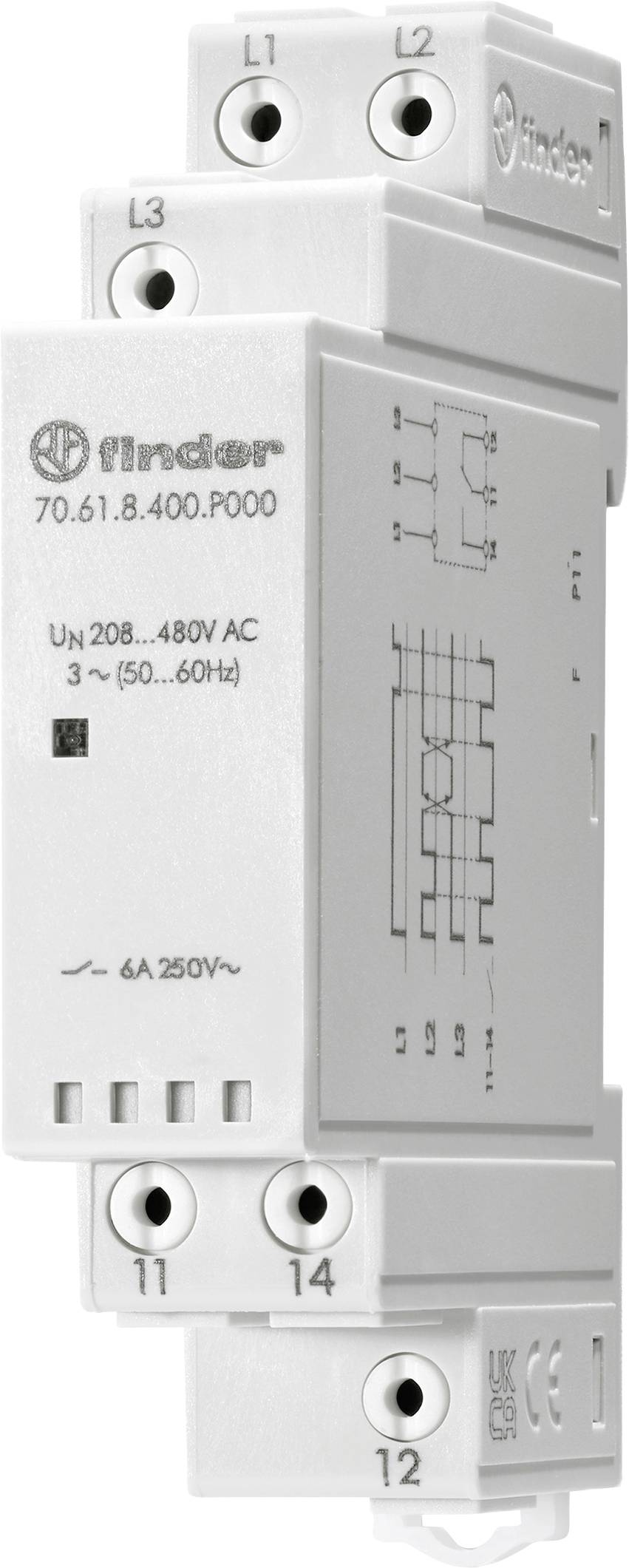

Finder 70.61.8.400.P000 70.61.8.400.P000 Network monitor No. of relay outputs: 1 No. of digital inputs: 0
EAN:
Part number:
Item no:
Product type
Network monitor
No. of relay outputs
1
Operating voltage
170 V AC
500 V AC
Type
70.61.8.400.P000
Probe inputs
3-Phasen-Wechselspannung (AC) im Bereich von 208 bis 480 V
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 4 Piece(s) available
Highlights & Details
400V 3-phase monitoring, 1 W, with push-in terminals
- 3-phase mains monitoring with push-in terminals for series installation
- 400 V/AC, 50/60 Hz
- For DIN rail
- 1 changers for 6 A (AC1)
- Contact material AgSnO2
- Contact voltage 250 V/AC
- Max. continuous voltage 400 V/AC
- Automatic design: 17.5 mm wide
- Phase sequence and phase failure monitoring even in case of inverse voltage Power supply range 170 - 500 V
- LED status indicator
- This text is machine translated.
Technical specifications
- Type
70.61.8.400.P000
- Product type
Network monitor
- No. of relay outputs
1
- Probe inputs
3-Phasen-Wechselspannung (AC) im Bereich von 208 bis 480 V
- Outputs
Max. Continuous current 6 A (max. Inrush current 15 A)
Nominal voltage 250 V/AC
- Operating voltage
170 V AC
500 V AC
- Dim
(L x W x H) 56.5 x 17.5 x 89.8 mm
- No. of digital inputs
0
- Width
17.5 mm
- Height
89.8 mm
- Length
56.5 mm
- UKCA
yes
