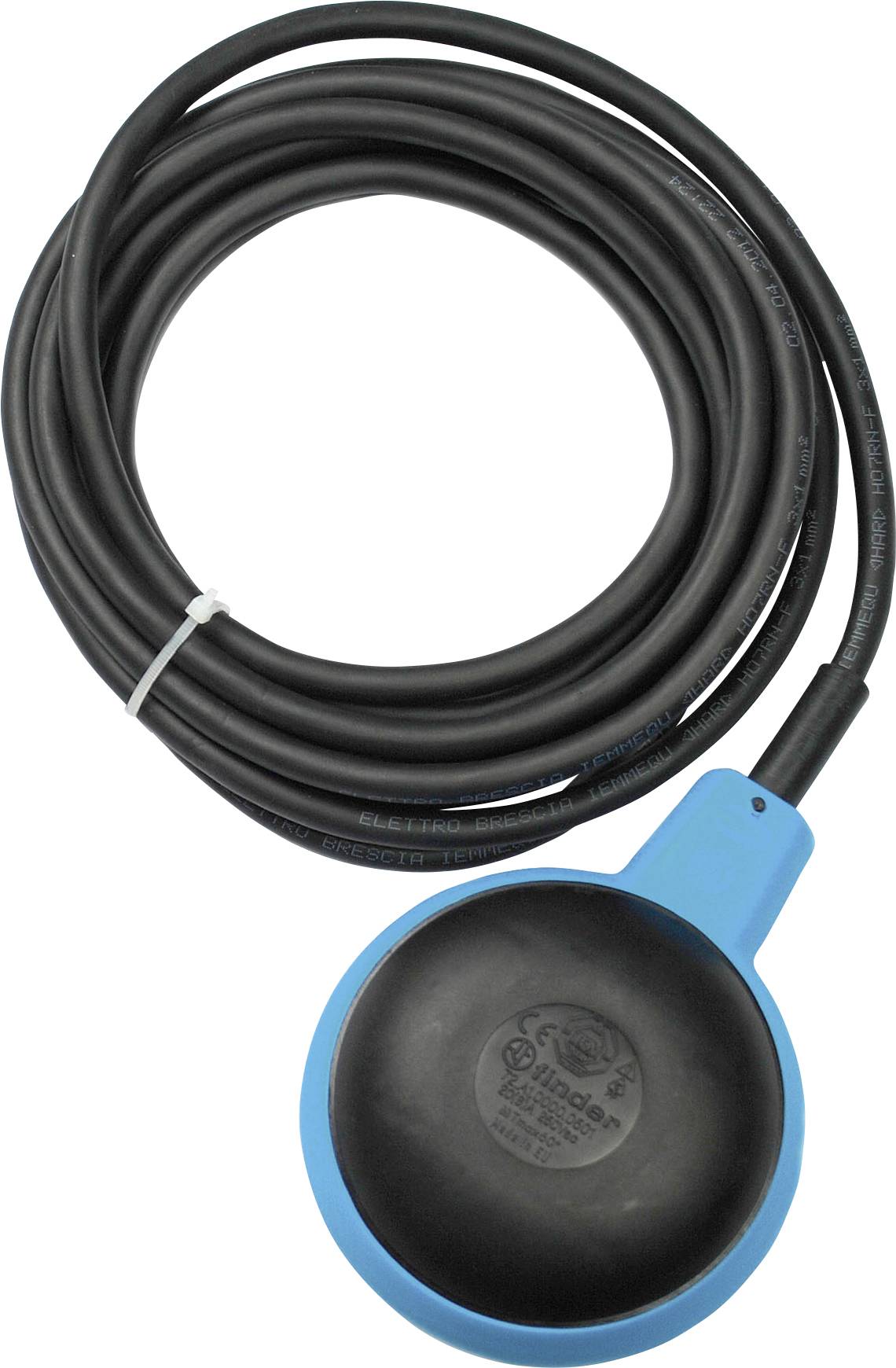

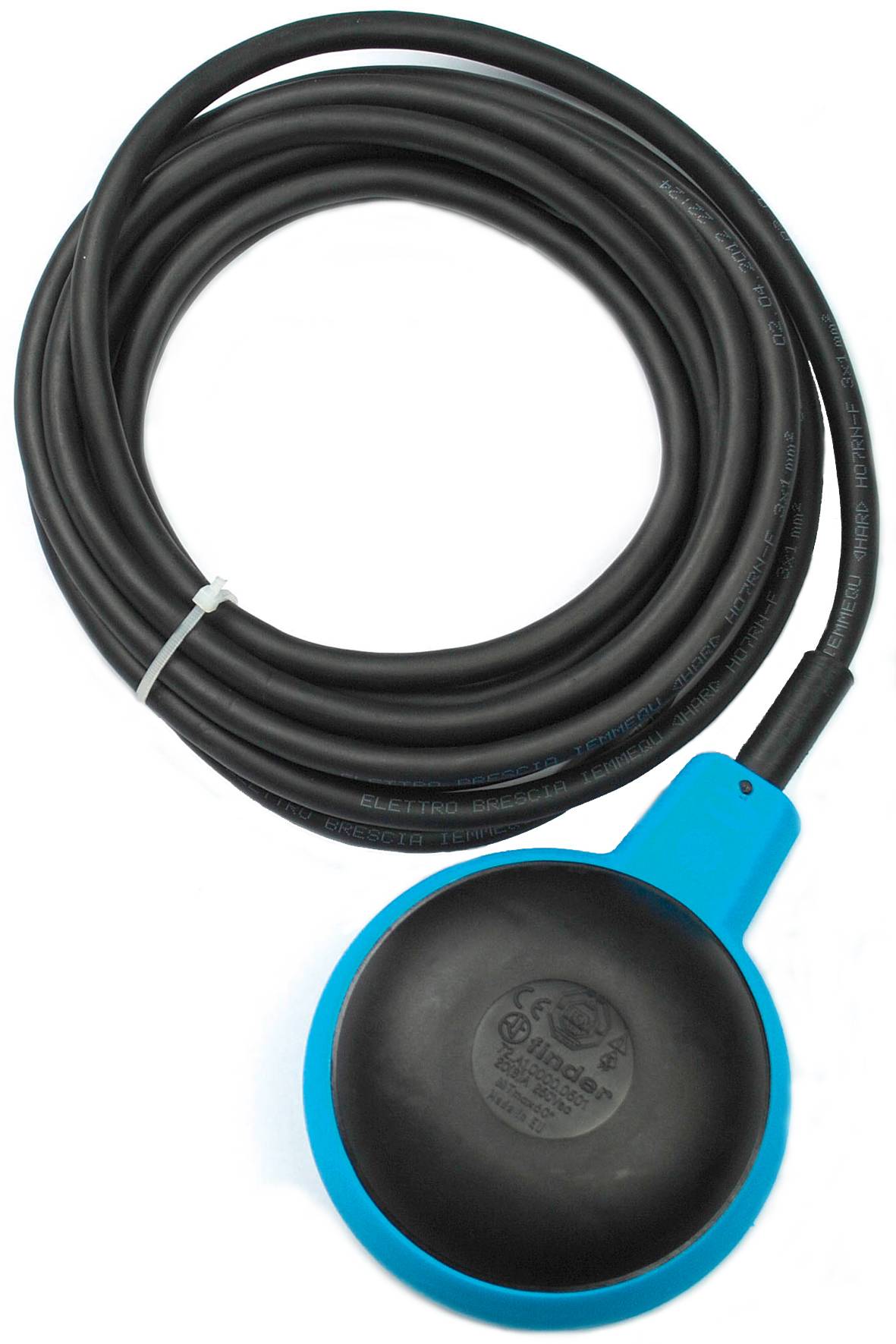

Finder 72A100000110 72.A1.0.000.0110 Float switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Highlights & Details
- Float switch (SPECIAL TYPE) with 2 chambers
- For submersible pumps and slightly contaminated water
- 1 changer for 10 A (cos phi 1) or 6 A (cos phi 0.6). Cable material PVC
- Temperature range +5 to +50 °C.
- Without counterweight. Housing material polypropylene
- Sealing of the rubber grommet on the housing 5 bar
- Switching hysteresis / angle of action +/- 45°
- Protection class IP 68 (in 10 meters water depth). Cable length 1 meter.
- This text is machine translated.
Technical specifications
- Mounting type: Suspended above the slot
- Max. Working pressure: 3.9 bar
- Vertical mounting: Yes
- Suitable for: Rain water; cooling water; condensation water
- Product type
Float switch
- Nominal voltage
250 V
- Switching current (max.)
10 A
- Material
Plastic
- Max. temperature
+50 °C
IP68
- Dim
(Ø) 107 mm
- (Ø)
107 mm
