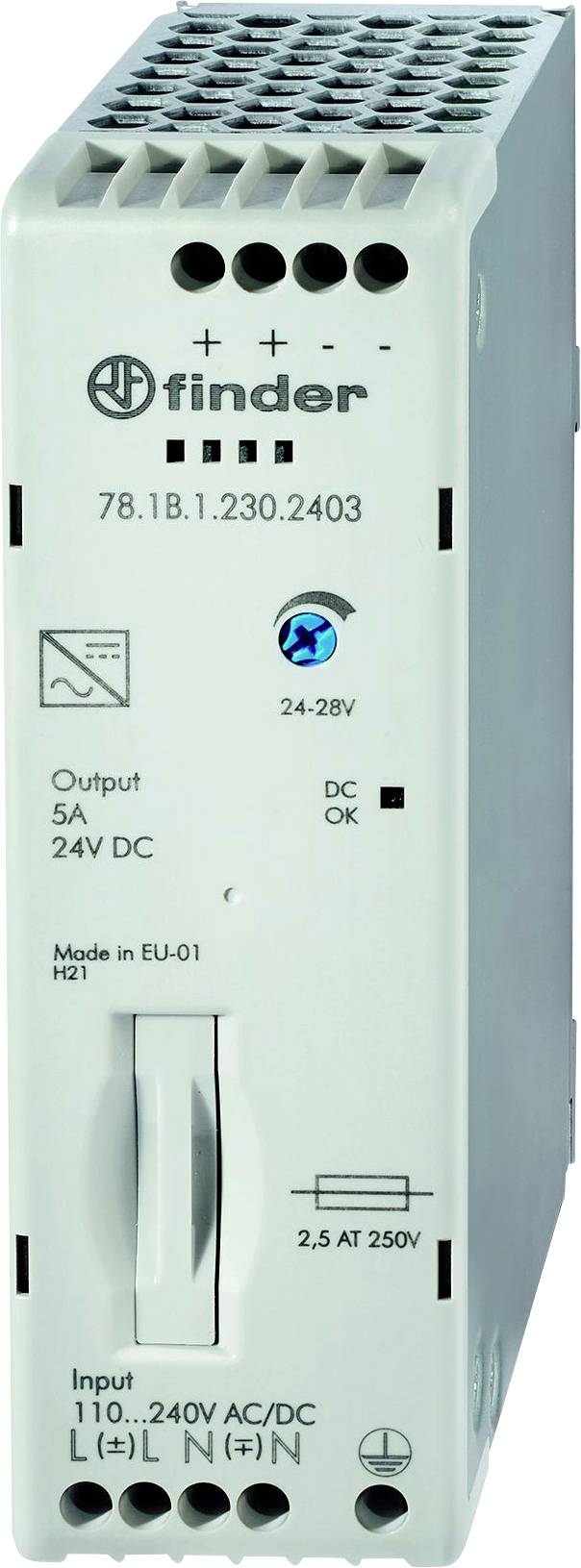

Finder 78.1B.1.230.2403 Rail mounted PSU (DIN) 24 V DC 5 A 110 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Switch cabinet switched-mode power supply 24V/110W
- High efficiency
- Extensive protective circuit
Technical specifications
- Type
Switched PSU
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V AC
140 V DC
- Input voltage (max.)
265 V AC
275 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
110 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V DC
- Connection
Screw terminal
- Dim
(L x W x H) 100 x 40 x 136 mm
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
78.1B.1.230.2403
- Content
1 pc(s)
- PSU features
Surge protection
Adjustable voltage output
- Width
40 mm
- Height
136 mm
- Length
100 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-20 °C
- Type
78.1B.1.230.2403
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2377837 Finder 78.1B.1.230.2403 Rail mounted PSU (DIN) 24 V DC 5 A 110 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2377837 Finder 78.1B.1.230.2403 Rail mounted PSU (DIN) 24 V DC 5 A 110 W Content 1 pc(s)
Description
This highly efficient switching power supply for input voltages of 120-240 V AC or 220 V DC, at AC voltage the power supply switches at zero crossing, output 110 W at 24 V DC, output voltage range adjustable from 24-28 V DC. Rated output current 4.5 A, maximum peak current 10 A-5 ms, short circuit protection at output, width 40 mm, for 35 mm rail (EN 60715)
