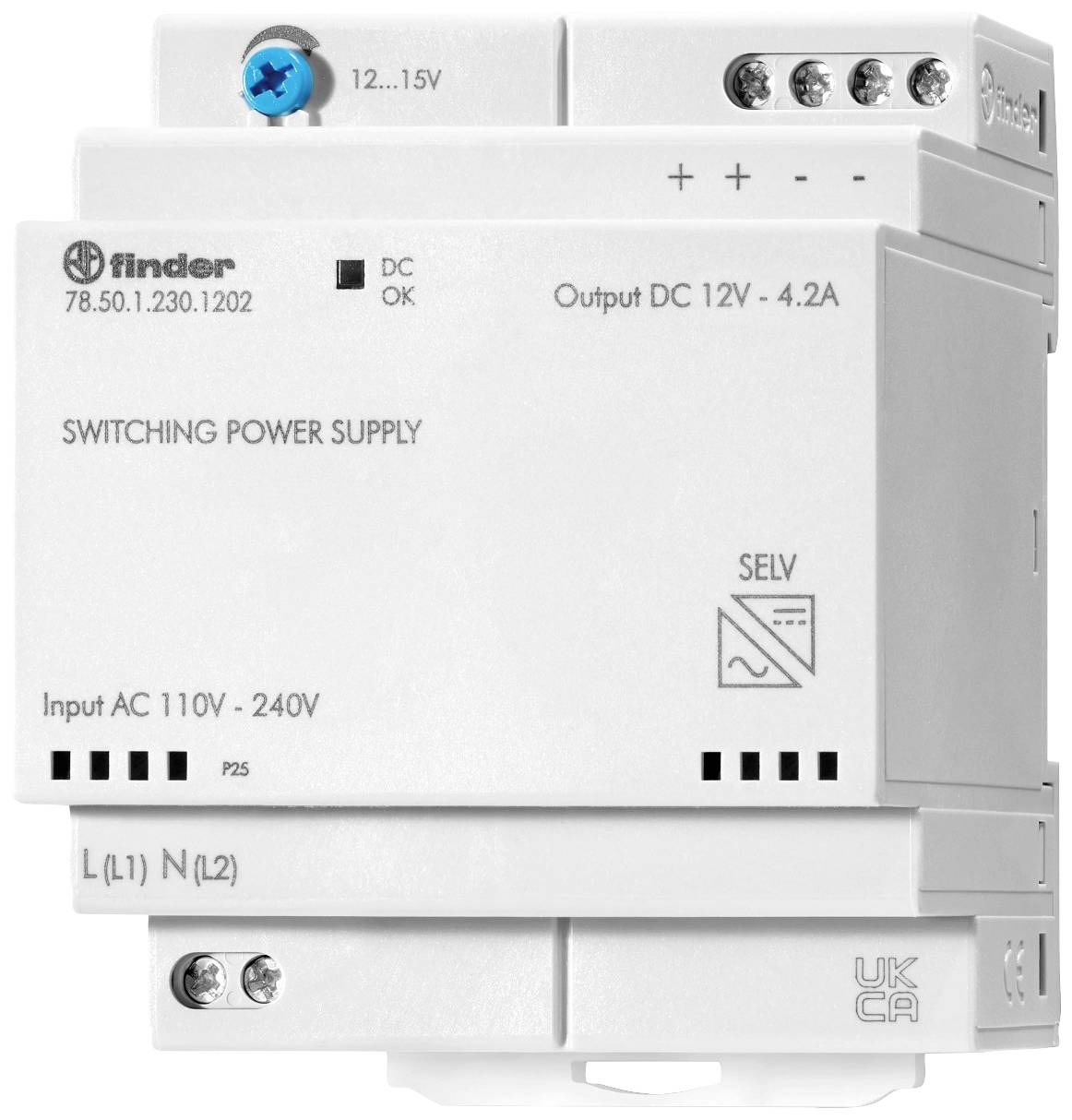

Finder 78.50.1.230.1202 Rail mounted PSU (DIN) 12 V DC 4.6 A 50 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 5 Piece(s) available
Highlights & Details
DIN rail switched-mode power supply
- Optimum for SELV applicationsOutput voltage adjustable from 12 to 14 VSwitches at voltage zero
Technical specifications
- Nominal input voltage
110 - 240 V/AC
- Type
Switched PSU
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
110 V AC
- Input voltage
110 - 240 V AC
- Input voltage (max.)
240 V AC
220 V DC
- Max. output current
4.6 A
- Output current (max.) - rounded
4.6 A
50 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Output voltage (max.)
14 V DC
- Output voltage (min.)
12 V DC
- Manufacturer part #
78.50.1.230.1202
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
70 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-20 °C
- Type
78.50.1.230.1202
- Efficiency
90 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2734733 Finder 78.50.1.230.1202 Rail mounted PSU (DIN) 12 V DC 4.6 A 50 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2734733 Finder 78.50.1.230.1202 Rail mounted PSU (DIN) 12 V DC 4.6 A 50 W No. of outputs:1 x Content 1 pc(s)
Description
Highly efficient DIN rail switched mode power supply, input 110-240 V AC or 220 V DC, suitable for battery charging applications and SELV applications. At AC voltage, the power supply switches in the zero crossing, output 50 W at 12 V DC, output nominal current 4.2 A, output voltage range adjustable from 12-14 V DC, internal thermal protection, short-circuit protection at the output, width 70 mm, for rail 35 mm (EN 60715).
