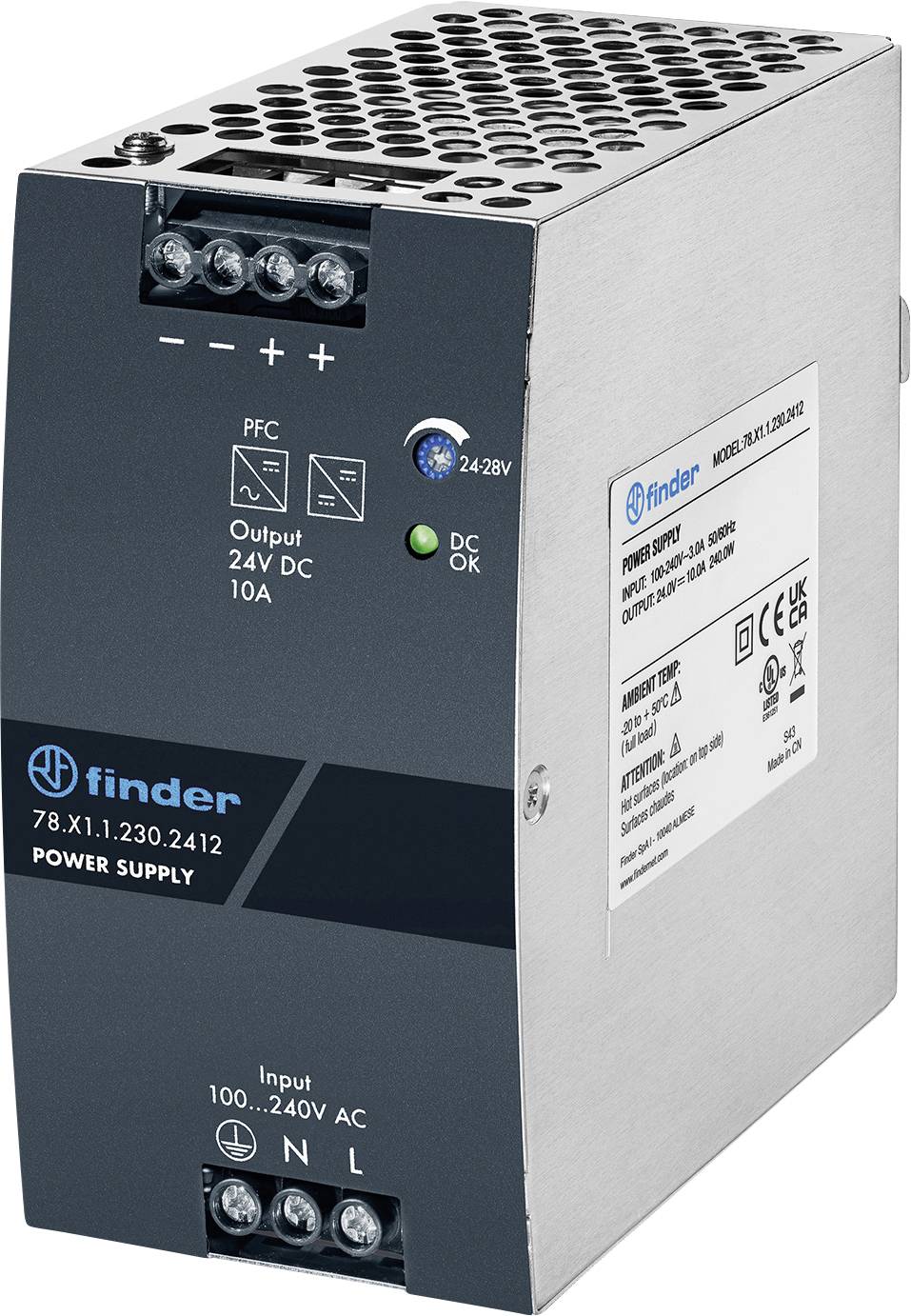

Finder 78.X1.1.230.2412 SMPSU 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
Only 3 Piece(s) available
Highlights & Details
SWITCHED-MODE POWER SUPPLY 10A 24VDC 240W
- Single phase DC industrial switch P/s
- Input 100-240 V AC or 140-338 V DC
- Output 240 W at 24 V DC
- Output voltage adjustable from 24-28 V DC
- Output nominal current 10 A
- Maximum peak current 13 A-5 ms
- Internal thermal protection
- Short circuit protection: Hiccup mode
- 2-stage power supply with active PFC
- Width 63 mm
- For mounting rail 35 mm (EN 60715)
- This text is machine translated.
Technical specifications
- Type
One-phase DC industrial switching power supply for control cabinets.
- Nominal input voltage
AC 100 V - 240 V; DC 140 V - 300 V
- Product type
SMPSU
- Min. input voltage
90 V AC
127 V DC
- Inputs
1
- Input voltage
90-264 V/AC or 127-370 V DC
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Dim
(L x W x H) 119 x 63 x 128.7 mm
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
78.X1.1.230.2412
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
63 mm
- Height
128.7 mm
- Length
119 mm
IP20
- Max. temperature
70 °C
- Min. temperature
-20 °C
- Type
78.X1.1.230.2412
- Efficiency
87 %
- UKCA
yes
