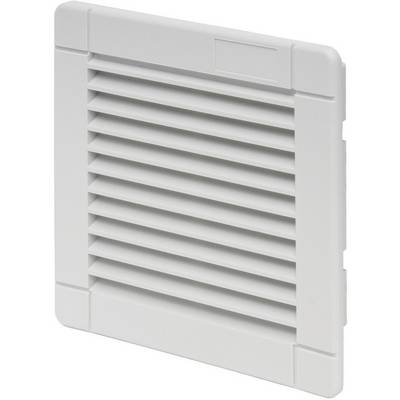

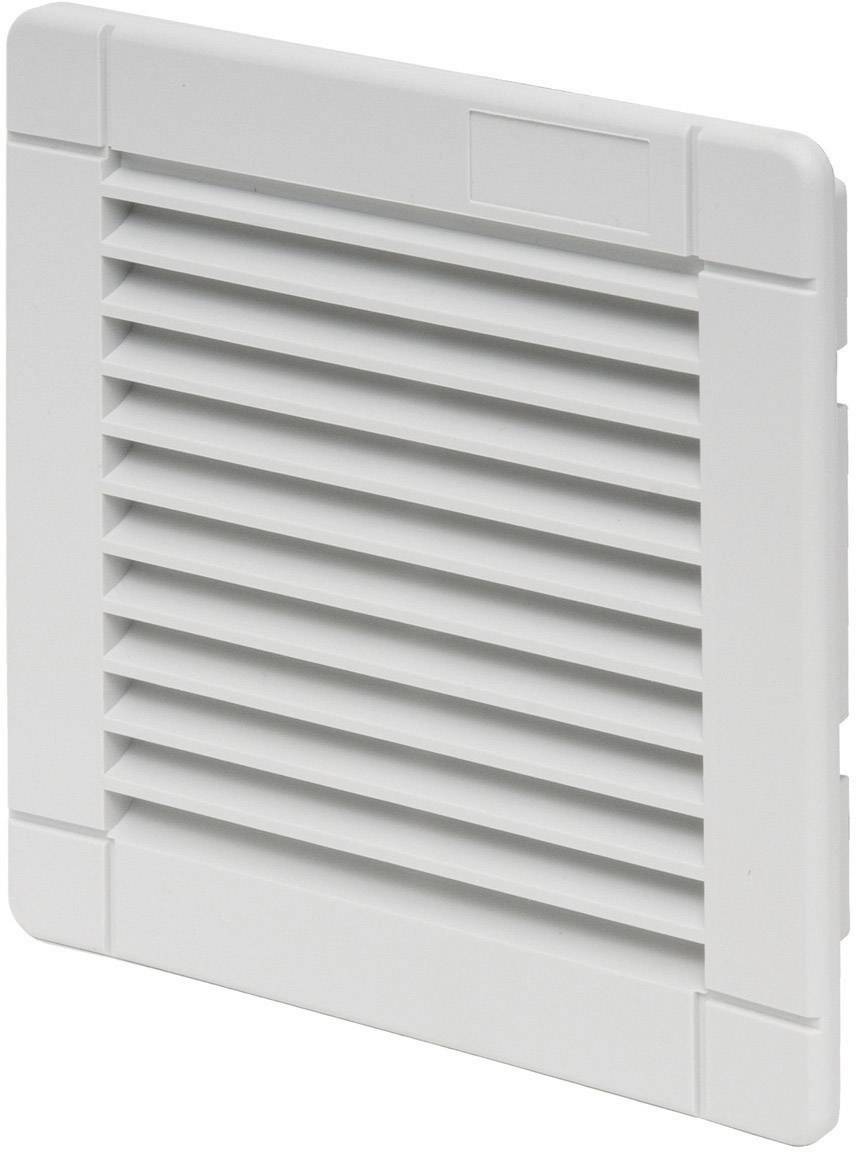

Finder 7F.07.0.000.2000 Filter (W x H x D) 150 x 150 x 27.5 mm Compatible with: Finder size 2 Tray 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tray
Product type
Filter
Width
150 mm
Height
150 mm
Depth
27.5 mm
Highlights & Details
OUTLET FILTER 7F.07.0.000.2000
Our service for you
Technical specifications
- Material: Plastic according to UL94 V-0, light grey
- Filter mat: EU3 as per DIN EN 24185
- Filter material: Plastic fibres, progressive construction, temperature-resistant up to 100 °C, self-extinguishing class F1 (DIN53438)
- Packaging type
Tray
- Product type
Filter
- Type
7F.07.0.000.2000
- Features
EMC
- Type
2
- Compatible with
Finder
- Compatible with
Finder size 2
- Factory colour
Light grey
- Max. temperature
100 °C
- Width
150 mm
- Height
150 mm
- Depth
27.5 mm
- Dim
(W x H x D) 150 x 150 x 27.5 mm
- Content
1 pc(s)
- Output (max.) (details)
-
- Max. noise generation
-
- Operating voltage
-
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3209768 Finder 7F.07.0.000.2000 Filter (W x H x D) 150 x 150 x 27.5 mm Compatible with: Finder size 2 Tray 1 pc(s)
Description
Outlet filter with low mounting depth. Time saving mounting and maintenance With the EMC model, all of the fan and outlet filter parts are connected with the metal housing of the control cabinet – this prevents interference fields to a large extent.
Scope of delivery
- Filter mat.
Hints
Approvals: cULus, EAC.
