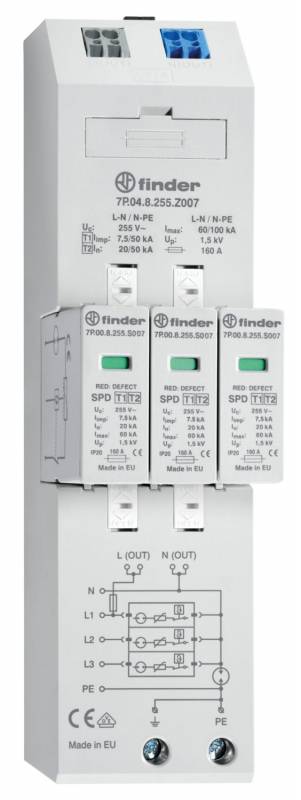

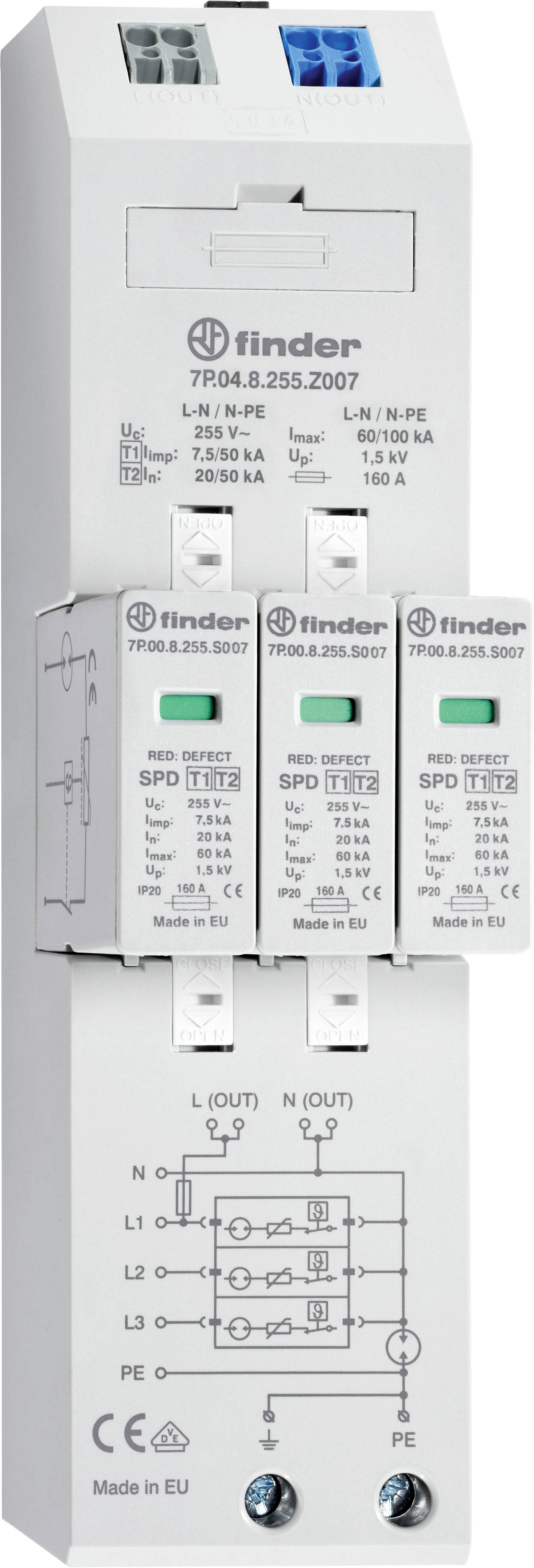

Finder 7P.04.8.255.Z007 7P.04.8.255.Z007 Surge arrester 20 kA
EAN:
Part number:
Item no:
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Technical specifications
- Mounting type: Bus bar
- Surge current (10/350 µs): 7.5 kA
- Number of conductors (without earth): 4
- Size: 3 HP
- Protection level 1.5 kV
- Maximum continuous voltage 255 V/AC
- Signaling on the device: Optical
- Max. Conductor cross-section rigid (single/multi-wire): 35 mm²
- Max. Conductor cross-section flexible (fine wire): 25 mm²
- MAINS FORM TN-S; TT
- Product type
Surge arrester
- Leakage current
20 kA
- Nominal voltage
230 V AC
- Type
SPD, type 1
IP20
- Manufacturer part #
7P.04.8.255.Z007
- RoHS-compliant
Yes
- Content
1 pc(s)
- Weight
0.64
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2474060 Finder 7P.04.8.255.Z007 7P.04.8.255.Z007 Surge arrester 20 kA
Description
Lightning and surge arresters type 1+2 for 40 mm busbar, 7.5 kA per path, 5-conductor system, L1, L2, L3, N, PE, exchangeable modules, visual defect display, holding system for the modules, can be used for the derivation of lightning currents up to 7.5 kA per pole, installation in the pre-counter area at the interface of the zones LPZ 0 to LPZ 1, without leakage current and subsequent current, including over-current protected 230 V power supply for RFZ / APZ according to VDE-AR-N 4100
