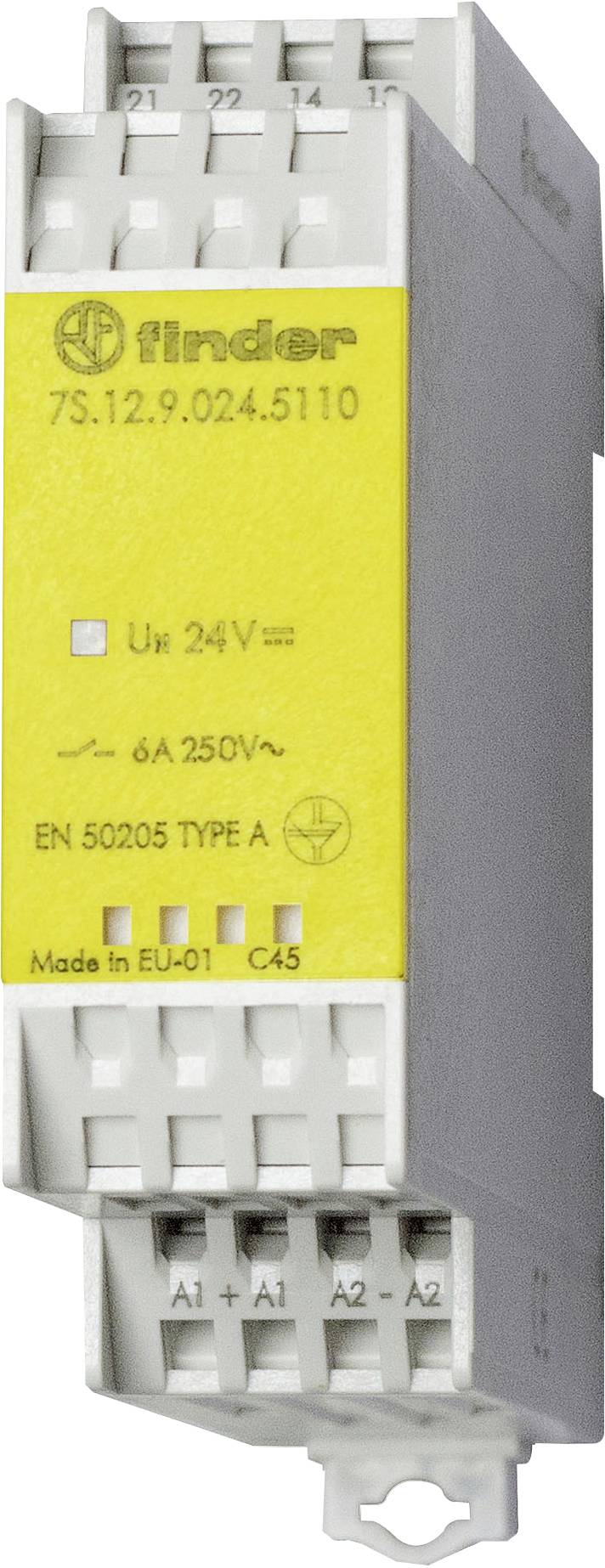

Image similar

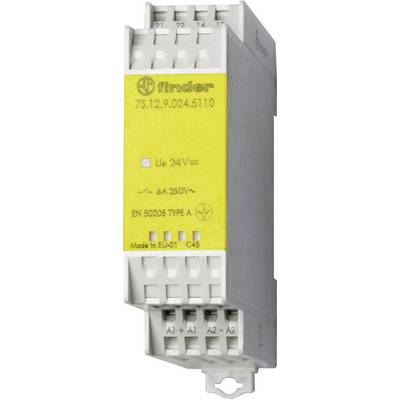

Image similar
Finder 7S.12.8.230.5110 Relay Switching current (max.): 6 A 1 breaker, 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Contact type
1 breaker
1 maker
Switching current (max.)
6 A
Type
7S.12.8.230.5110
Connection
Jack connector
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Only 7 Piece(s) available
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With positively driven contacts: Yes
- Type of switch contact: Single contact
- Complete unit with base: Yes
- Product type
Relay
- Type
7S.12.8.230.5110
- Connection
Jack connector
- Max. pick-up voltage
230 V AC
- Contact type
1 breaker
1 maker
- Contact material
AgNi hard gold plated
- Switching current (max.)
6 A
- Features
+ LED
IP20
- Length
22.5 mm
- Width
100.3 mm
- Height
86.2 mm
- Dim
(L x W x H) 22.5 x 100.3 x 86.2 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
6 A
22.5
100.3 mm
86.2 mm
15 A
FALSE
Polarity free
Mono stable
TRUE
Single contact
TRUE
Spring clamp connection
230-230 V
230-230 V
Gold
AC
IP20
TRUE
195-264 V
195-264 V
AC
1
1
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2474211 Finder 7S.12.8.230.5110 Relay Switching current (max.): 6 A 1 breaker, 1 maker 1 pc(s)
Description
Relay module with positively driven contacts according to EN 61810-3, type A. Basic component, suitable for safety applications that, if designed according to IEC/EN 62061 (IEC 61508), can achieve a safety integrity level of SIL 2. When the application is designed in accordance with ISO/EN 13849, a performance level of PL "d" can be achieved in machine and plant construction. 1 NO contact + 1 NC contact for 6 A, contact material AgNi-hard gold plated, supply voltage 230 V AC, LED status display of coil control, materials comply with EN 45545-2:2013 for fire protection in rail vehicles, tested according to EN 61373 (swing and shock, Cat. 1, cl. B) and EN 50155 (cold, dry and moist heat, temperature class TX), with tension spring clamps, For mounting rail 35 mm (EN 60715), width 22.5 mm, protection class IP 20
