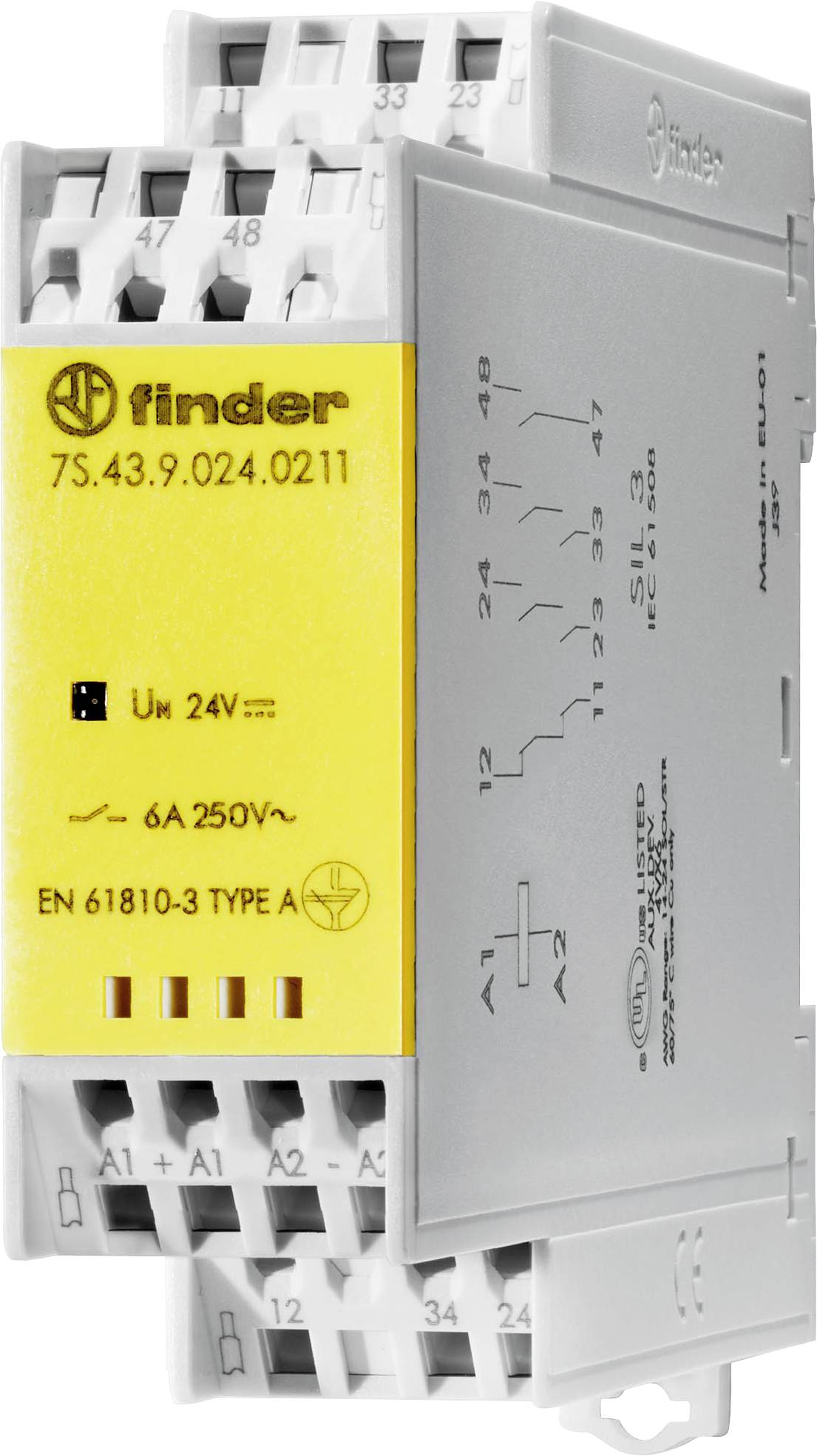

Finder 7S.43.9.024.0211 Relay Switching current (max.): 6 A 1 breaker, 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Contact type
1 breaker
2 makers
Switching current (max.)
6 A
Type
7S.43.9.024.0211
Connection
Jack connector
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polarized
- Switching behavior of the drive: Monostable
- With positively driven contacts: Yes
- Type of switch contact: Single contact
- Complete unit with base: No.
- Product type
Relay
- Type
7S.43.9.024.0211
- Connection
Jack connector
- Max. pick-up voltage
24 V DC
- Contact type
1 breaker
2 makers
- Switching current (max.)
6 A
- Features
+ LED
IP20
- Length
22.5 mm
- Width
100.3 mm
- Height
86.2 mm
- Dim
(L x W x H) 22.5 x 100.3 x 86.2 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2474344 Finder 7S.43.9.024.0211 Relay Switching current (max.): 6 A 1 breaker, 2 makers 1 pc(s)
Description
Relay module with positively driven contacts according to EN 61810-3, type A. Basic component, suitable for safety applications that, if designed according to IEC/EN 62061 (IEC 61508), can achieve a safety integrity level of SIL 2. When the application is designed in accordance with ISO/EN 13849, a performance level of PL "d" can be achieved in machine and plant construction. 2 NO contacts + 1 NC contact for 6 A, contact material AgSnO2/AgNi+Au, supply voltage 24 V DC, LED status display of coil control, materials comply with EN 45545-2:2013 for fire protection in rail vehicles, tested according to EN 61373 (swinging and shocks, cat. 1, cl. B) and EN 50155 (cold, dry and damp heat, temperature class TX), with screw terminals, For mounting rail 35 mm (EN 60715), width 22.5 mm, protection class IP 20
