Buy Finder 80.51.0.240.P000 80.51.0.240.P000 TDR Multifunction 1 pc(s) Time range: 0.1 s - 24 h 1 change-over

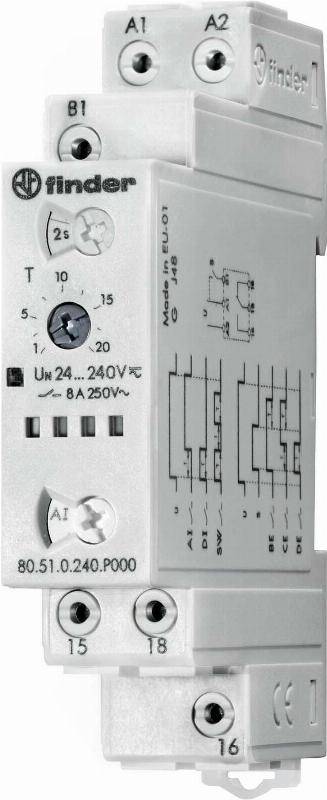

'Finder 80.51.0.240.P000' time-delay relay with circuit diagrams on the front, voltage-controlled 24-240V AC/DC, max. 8A, DIN rail mounting.

Image similar

Product type

TDR

Type

Multifunction

Functions

On-delay

Single shot leading edge

Flasher, symmetric, pulse ON

Off-delay through auxiliary contact

On-/Off-delay through auxiliary contact

Single shot leading edge through auxiliary contact

Min. operating voltage

24 V DC

24 V AC

Max. operating voltage

240 V DC

240 V AC

Datasheet (PDF)

61 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (€ 55.45 / piece)

€

Report legal concerns

Highlights & Details

Time relay multifunction, 80.51.0,240. P 000

6 time ranges up to 24 h
This text is machine translated.

Technical specifications

Pulse duration (if driving on B1) 50 ms
Reperiod of standby: < 50 ms

Product type: TDR

Type: 80.51.0.240.P000

Type: Multifunction

Connection: Push-in connector

Functions: On-delay
Single shot leading edge
Flasher, symmetric, pulse ON
Off-delay through auxiliary contact
On-/Off-delay through auxiliary contact
Single shot leading edge through auxiliary contact

Min. operating voltage: 24 V DC
24 V AC

Max. operating voltage: 240 V DC
240 V AC

Operating voltage: 24, 24 - 240, 240 V DC, V AC

Contact type: 1 change-over

Contact material: AgNi

Switching voltage (max.): 400 V AC

Switching current (max.): 8 A

Max. switching capacity: 2000 VA

Time range (min.): 0.1 s

Time range (max.): 24 h

Time range(s): 2 s
20 s
2 min
20 min
2 h
24 h

Min. temperature: -20 °C

Max. temperature: +60 °C

: IP20

Width: 17.5 mm

Height: 60.8 mm

Depth: 88.8 mm

Dim: (W x H x D) 17.5 x 60.8 x 88.8 mm

Content: 1 pc(s)

Variants(All information is without VAT, plus shipping costs)

Type

Connection

Switching voltage (max.)

Switching current (max.)

Functions

Contact type

Finder 80.51.0.240.P000 80.51.0.240.P000 TDR Multifunction 1 pc(s) Time range: 0.1 s - 24 h 1 change-over

Item no:1842262

This article

Multifunction

Push-in connector

400 V AC

8 A

On-delaySingle shot leading edgeFlasher, symmetric, pulse ONOff-delay through auxiliary contactOn-/Off-delay through auxiliary contactSingle shot leading edge through auxiliary contact

1 change-over

Finder 80.51.0.240.0000 80.51.0.240.0000 TDR Multifunction 1 pc(s) Time range: 0.1 s - 24 h 1 change-over

Item no:1842261

Multifunction

Screw terminal

400 V AC

8 A

On-delaySingle shot leading edgeFlasher, symmetric, pulse ONOff-delay through auxiliary contactOn-/Off-delay through auxiliary contactSingle shot leading edge through auxiliary contact

1 change-over

Finder 80.01.0.240.0000 TDR Multifunction 10 pc(s) Time range: 24 h (max) 1 change-over Tray

Item no:2177046

Multifunction

Screw terminal

400 V AC

16 A

On-delaySingle shot leading edgeFlasher, asymmetric, pulse ONOff-delayOn-/Off-delayPulse shaper

1 change-over

Finder 80.11.0.240.0000 TDR Monofunctional 10 pc(s) Time range: 0.1 s - 20 h 1 change-over Tray

Item no:2177123

Monofunctional

Screw terminal

400 V AC

16 A

On-delay

1 change-over

Finder 80.21.0.240.0000 TDR Monofunctional 10 pc(s) Time range: 0.1 s - 20 h 1 change-over Tray

Item no:2177124

Monofunctional

Screw terminal

400 V AC

16 A

Single shot leading edge

1 change-over

Finder 80.41.0.240.0000 TDR Monofunctional 10 pc(s) Time range: 0.1 s - 20 h 1 change-over Tray

Item no:2177125

Monofunctional

Screw terminal

400 V AC

16 A

Off-delay

1 change-over

Finder 80.61.0.240.0000 TDR Monofunctional 10 pc(s) Time range: 0.1 - 20 s 1 change-over Tray

Item no:2177126

Monofunctional

Screw terminal

400 V AC

8 A

Off-delay without auxiliary contact

1 change-over

Finder 80.71.0.240.0000 TDR Multifunction 10 pc(s) Time range: 0.1 s - 24 h 1 maker Tray

Item no:2177127

Multifunction

Screw terminal

240 V DC240 V AC

1 A

On-delaySingle shot leading edgeFlasher, symmetric, pulse ONOff-delay through auxiliary contactOn-/Off-delaySingle shot leading edge through auxiliary contact

1 maker

Finder 80.01.0.240.0000-10 80.01.0.240.0000 TDR Multifunction 1 pc(s) Time range: 24 h (max) 1 change-over Tray

Item no:3209558

Multifunction

Screw terminal

400 V AC

16 A

On-delaySingle shot leading edgeFlasher, asymmetric, pulse ONOff-delayOn-/Off-delayPulse shaper

1 change-over

Finder 80.11.0.240.0000-10 80.11.0.240.0000 TDR Monofunctional 1 pc(s) Time range: 0.1 s - 20 h 1 change-over Tray

Item no:3209621

Monofunctional

Screw terminal

400 V AC

16 A

On-delay

1 change-over

Documents & Downloads

Datasheet

Datasheet 1842262 Finder 80.51.0.240.P000 80.51.0.240.P000 TDR Multifunction 1 pc(s) Time range: 0.1 s - 24 h 1 change-over

User & Safety Instructions

User & Safety Instructions 1842262 Finder 80.51.0.240.P000 80.51.0.240.P000 TDR Multifunction 1 pc(s) Time range: 0.1 s - 24 h 1 change-over

Information

Information 1842262 Finder 80.51.0.240.P000 80.51.0.240.P000 TDR Multifunction 1 pc(s) Time range: 0.1 s - 24 h 1 change-over

Description

Hints

Approvals: CE, GOST, cULus.
