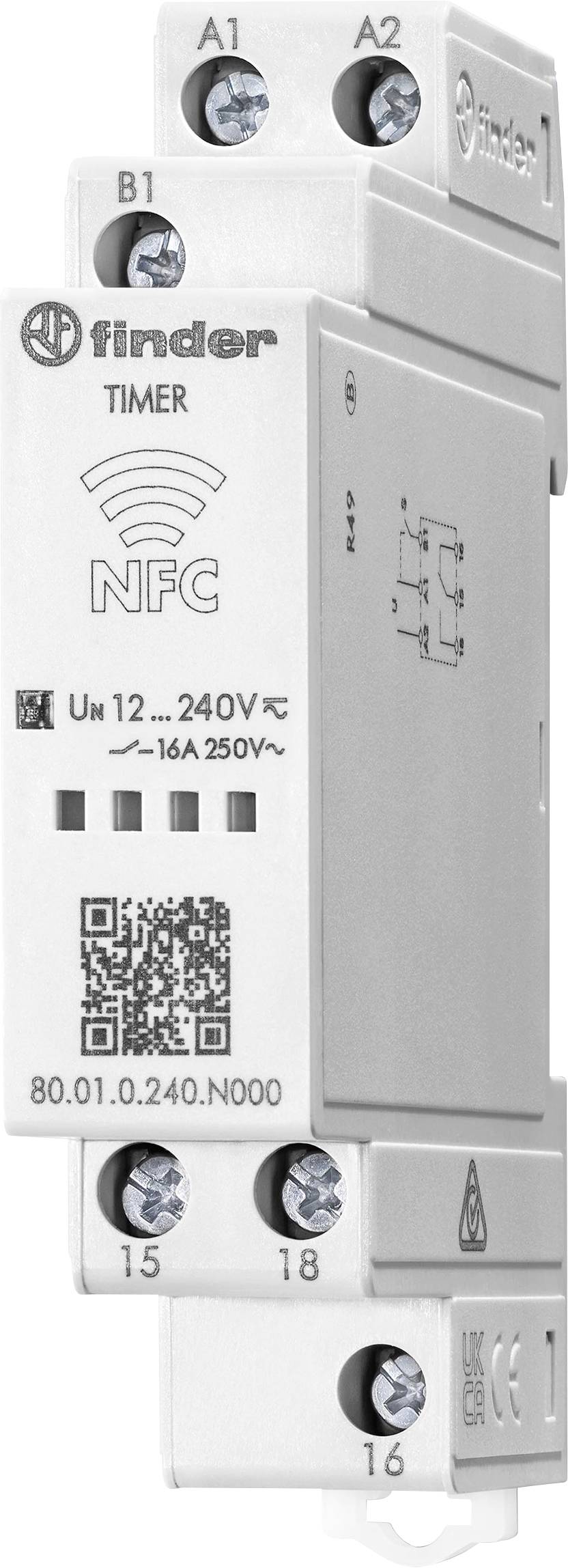

Finder 80010240N000 80.01.0.240.N000 TDR Multifunction 1 pc(s) Time range: 2 s - 24 h
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
On-delay
Single shot leading edge
Flasher, asymmetric, pulse ON
Off-delay
On-/Off-delay
Single shot leading edge through auxiliary contact
Flasher, asymmetric, pulse OFF
Min. operating voltage
12 V AC
12 V DC
Max. operating voltage
240 V AC
240 V DC
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Technical specifications
- Readiness duration - 100 ms
- Minimum pulse duration - 50 ms
- Repeatability - ± 1%
- Self-activating voltage adaptation through pulse-width modulation (PWM)
- Handling and settings with the same tool: Flat or cross screwdriver
- For mounting rail 35 mm (EN 60715)
- Product type
TDR
- Type
80.01.0.240.N000
- Type
Multifunction
- Connection
Screw terminal
- Functions
On-delay
Single shot leading edge
Flasher, asymmetric, pulse ON
Off-delay
On-/Off-delay
Single shot leading edge through auxiliary contact
Flasher, asymmetric, pulse OFF
- Min. operating voltage
12 V AC
12 V DC
- Max. operating voltage
240 V AC
240 V DC
- Operating voltage
12, 12 - 240, 240 V AC, V DC
- Contact material
AgNi
- Switching voltage (max.)
400 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Time range (min.)
2 s
- Time range (max.)
24 h
- Time range(s)
2 s
20 s
2 min
20 min
2 h
24 h
- Min. temperature
-20 °C
- Max. temperature
60 °C
IP20
- Width
17.5 mm
- Height
60.8 mm
- Depth
88.8 mm
- Dim
(W x H x D) 17.5 x 60.8 x 88.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3389756 Finder 80010240N000 80.01.0.240.N000 TDR Multifunction 1 pc(s) Time range: 2 s - 24 h
User & Safety Instructions
User & Safety Instructions 3389756 Finder 80010240N000 80.01.0.240.N000 TDR Multifunction 1 pc(s) Time range: 2 s - 24 h
Description
Multifunction timer relay for DIN rail, 17.5 mm wide, 1 changeover contacts for 16 A / 250 V AC, contact material AgNi. Programmable via NFC, functions: AI: On-delay, DI: Switch wiper, LI: Asymmetric flasher (impulse-starting), BE: Off-delay via start contact, CEB: On-delay via start contact, DE: Switch wiper via start contact, time range: 0.1 s - 24 h supply voltage: 12-240 V DC/AC (50/60 Hz), relay protection type: IP 20
This text is machine translated.
This text is machine translated.
Hints
Approvals: GOST, cULus.
