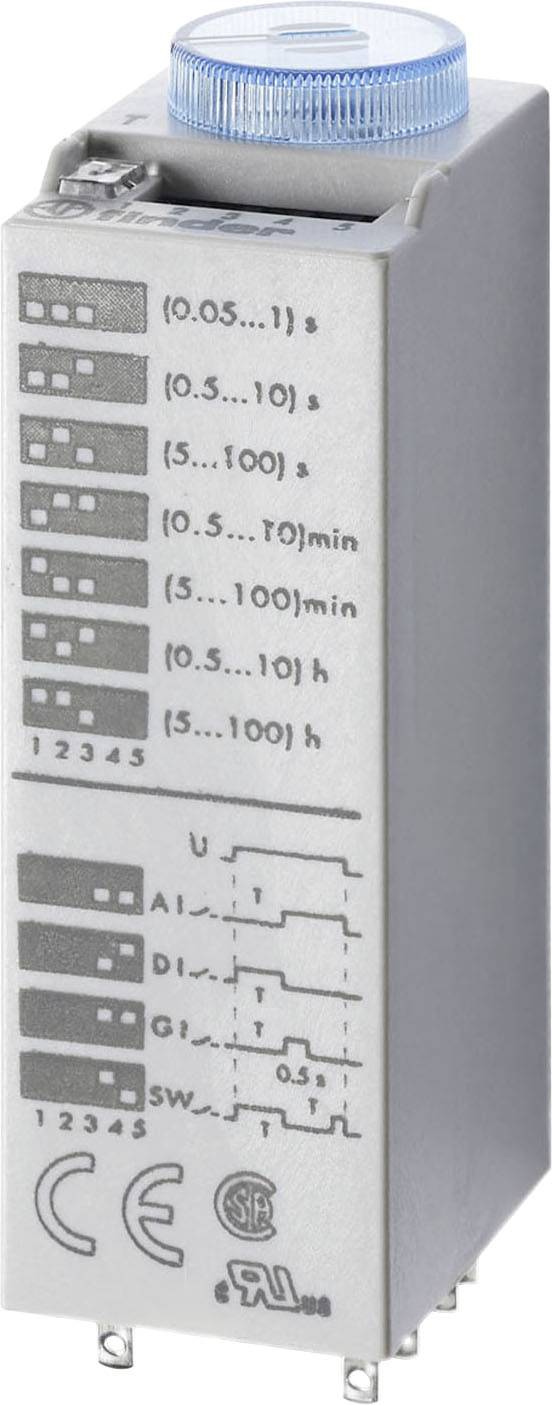

Finder 85.02.0.012.0000 85.02.0.012.0000 TDR Multifunction 12 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
Flasher, asymmetric, pulse ON
On-delay
Single shot leading edge
Pulse shaper
Operating voltage
12 V DC/AC
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Packaging type
Piece
- Product type
TDR
- Type
85.02.0.012.0000
- Type
Multifunction
- Connection
Jack connector
- Functions
Flasher, asymmetric, pulse ON
On-delay
Single shot leading edge
Pulse shaper
- Operating voltage
12 V DC/AC
- Contact type
2 change-overs
- Contact material
AgNi
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
- Time range (min.)
0.05 s
- Time range (max.)
360000 s
- Width
20.6 mm
- Height
27.7 mm
- Depth
63.1 mm
- Dim
(W x H x D) 20.6 x 27.7 x 63.1 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
20.6
59.5 mm
27.7 mm
20 A
FALSE
Plug-in connection
12-12 V
12-12 V
12-12 V
AC/DC
IP40
10.2-13.2 V
10.2-13.2 V
10.2-13.2 V
AC/DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2474600 Finder 85.02.0.012.0000 85.02.0.012.0000 TDR Multifunction 12 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs
Description
Pluggable miniature MF timer relay 2 changeover contacts for 10 A / 250 V AC, for sockets 94.02 - 94.04 contact material AgNi, functions: Response delay, switch wiper, pulse relay (flasher) symmetric, impulse-starting, Pulse generator (0.5 s) Time range: 0.05 s - 100 h, supply voltages 12 V DC/AC (50/60 Hz) Relay protection type: IP 20
