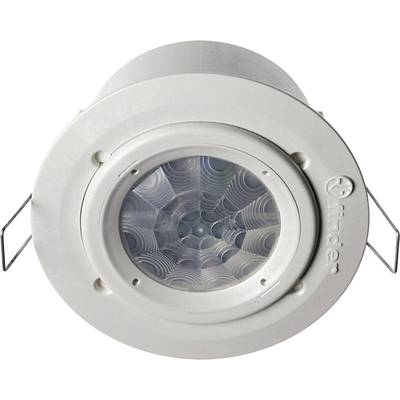

Round white motion sensor for ceiling mounting with structured glass in the centre, manufacturer's name embossed on the side.

Image similar

Round white motion sensor for ceiling mounting with structured glass in the centre, manufacturer's name embossed on the side.

Image similar

Finder

Datasheet (PDF)

Fast track dispatch on Wed, 8 Jul

90 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

Report legal concerns

Highlights & Details

Motion detector for suspended ceilings

Adjustable brightness threshold
Adjustable switch-off delay time
Further detection angle
This text is machine translated.

Technical specifications

Nominal lamp rating: incandescent/halogen 1000 W / Fluorescent lamp with Electronic ballast 500 W / Fluorescent lamp with Electromecanical ballast 350 W / CFL 300 W / LED 230 V 300 W / Halogen or LV LED with electronic ballast 300 W / Halogen or LV LED with electromechanical ballast 500 W

Content: 1 pc(s)

Type: 18.31.0.024.0300

Operating voltage: 24 V DC
24 V AC

Contact type: 1 maker

Contact material: AgSnO2

Switching voltage (max.): 400 V AC

Switching current (max.): 10 A

Max. switching capacity: 2500 VA

Electrical lifespan: 100 x 10³ cycles

Light sensitivity (min.): 5 lx

Light sensitivity (max.): 350 lx

: 8 m

Time range (min.): 10 s

Time range (max.): 12 min

Min. temperature: -10 °C

Max. temperature: +50 °C

Factory colour: White

Sensitivity: 1 - 500 lx

Nominal voltage (details): 250 V/AC

Switching capacity: (AC1) 2500 VA/ (AC15) 450 VA

Switching voltage: 250 V/AC/ 400 V/AC

Switching current: 10 A

Temperature range: -10 - +50 °C

Time range: 12 s - 35 min

Operating voltage: 110 - 230 V/AC

: Flush mounted (plaster)

: White

: Movement sensor

: TRUE

: 40.7 mm

: Screwed terminal

: Untreated

: AC/DC

: 36.5 mm

: 50-60 MHz

: 80 mm

: FALSE

: 70 mm

: Thermoplastic

: 100 A

: Plastic

: 9010

: 24-24 V

: IP40

: FALSE

: Matt

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

Product type: IR motion detector

Documents & Downloads

Datasheet

Datasheet 1842162 Finder IR motion detector 18.31.0.024.0300 24 V DC, 24 V AC 1 maker 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1842162 Finder IR motion detector 18.31.0.024.0300 24 V DC, 24 V AC 1 maker 1 pc(s)

Description

Motion detector for the installation in the interior, with potential-free output contact.

This text is machine translated.

Features

Adjustable ambient light intervention threshold, Adjustable Light On Time

Scope of delivery

Mounting accessories are included in the packaging.

Hints

Approvals: EAC, IMQ.
