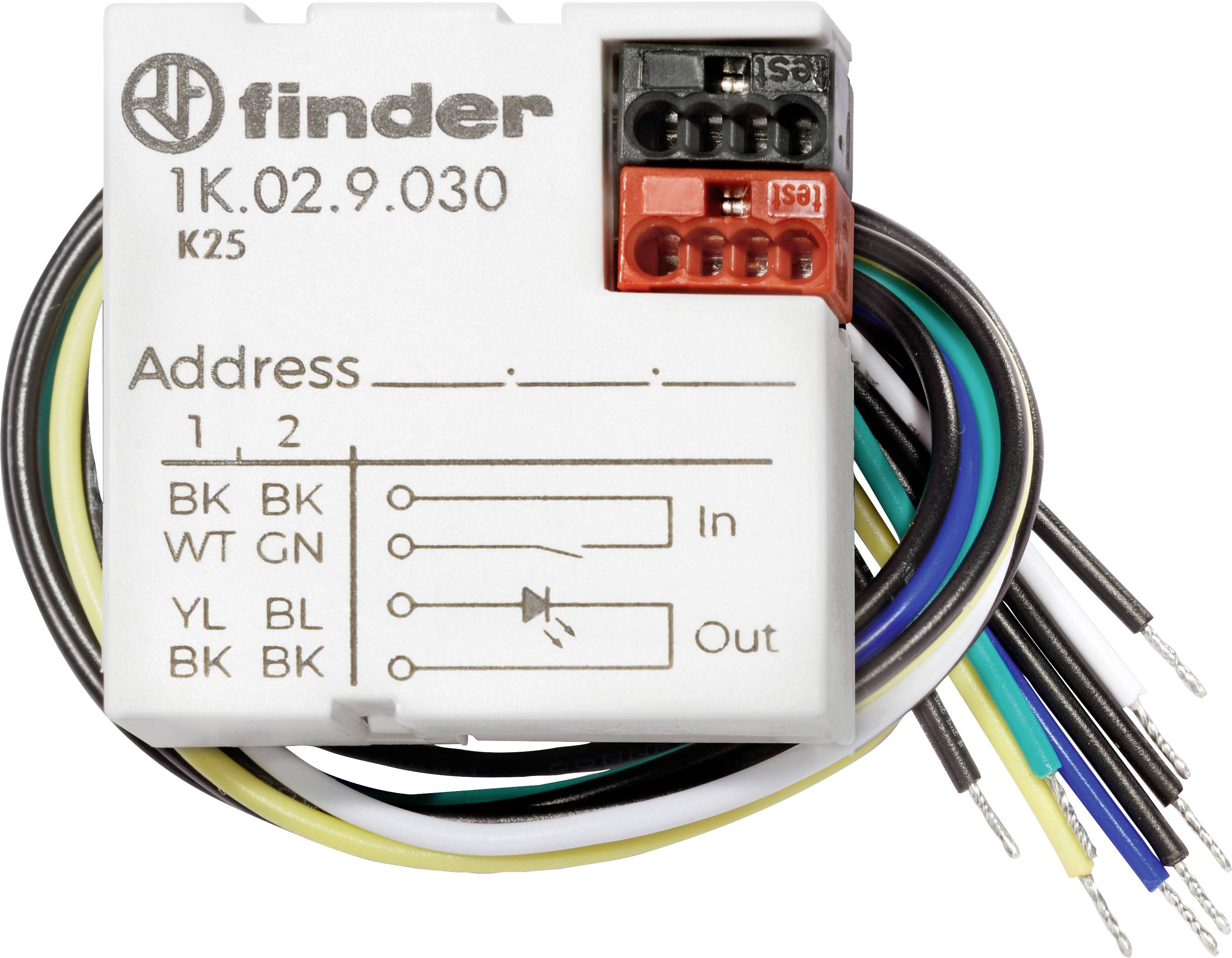

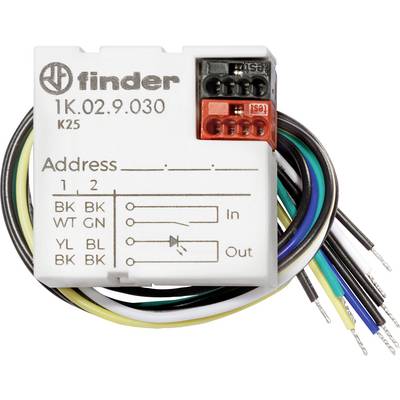

Finder KNX 1K.02.9.030 Module 4-channel 1K.02.9.030
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14 days return policy included
Highlights & Details
KNX module for flush mounting, 2 channels
- 8 integrated logic functions
- Compact design
- Management of status LEDs
Technical specifications
- Logic functions:
- AND, OR, NOT, XOR, NOR, NAND, XNOR,
- Byte to bit and bit to byte conversions,
- Threshold of 1, 2 and 4 bytes
- Software compatibility: ETS 5 (or higher)
- Product type
Module
- Series
KNX
IP40
- Operating voltage
30 V DC
- Channels
4
- Width
34 mm
- Height
34 mm
- Depth
11 mm
- Dim
(W x H x D) 34 x 34 x 11 mm
- Hub
Not required, optional for remote access
n.rel.
- Features
Signal input
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2290435 Finder KNX 1K.02.9.030 Module 4-channel 1K.02.9.030
User & Safety Instructions
User & Safety Instructions 2290435 Finder KNX 1K.02.9.030 Module 4-channel 1K.02.9.030
Information
Information 2290435 Finder KNX 1K.02.9.030 Module 4-channel 1K.02.9.030
Description
Has 2 digital inputs for potential-free contacts and 2 outputs for LEDs.
These devices (only 34 x 34 x 11 mm) can also be used in installations where the available space is reduced.
Sensors, conventional pushbuttons, etc. can be connected to the digital inputs.
The low-voltage output channels can control LEDs for overview panels or switches.
