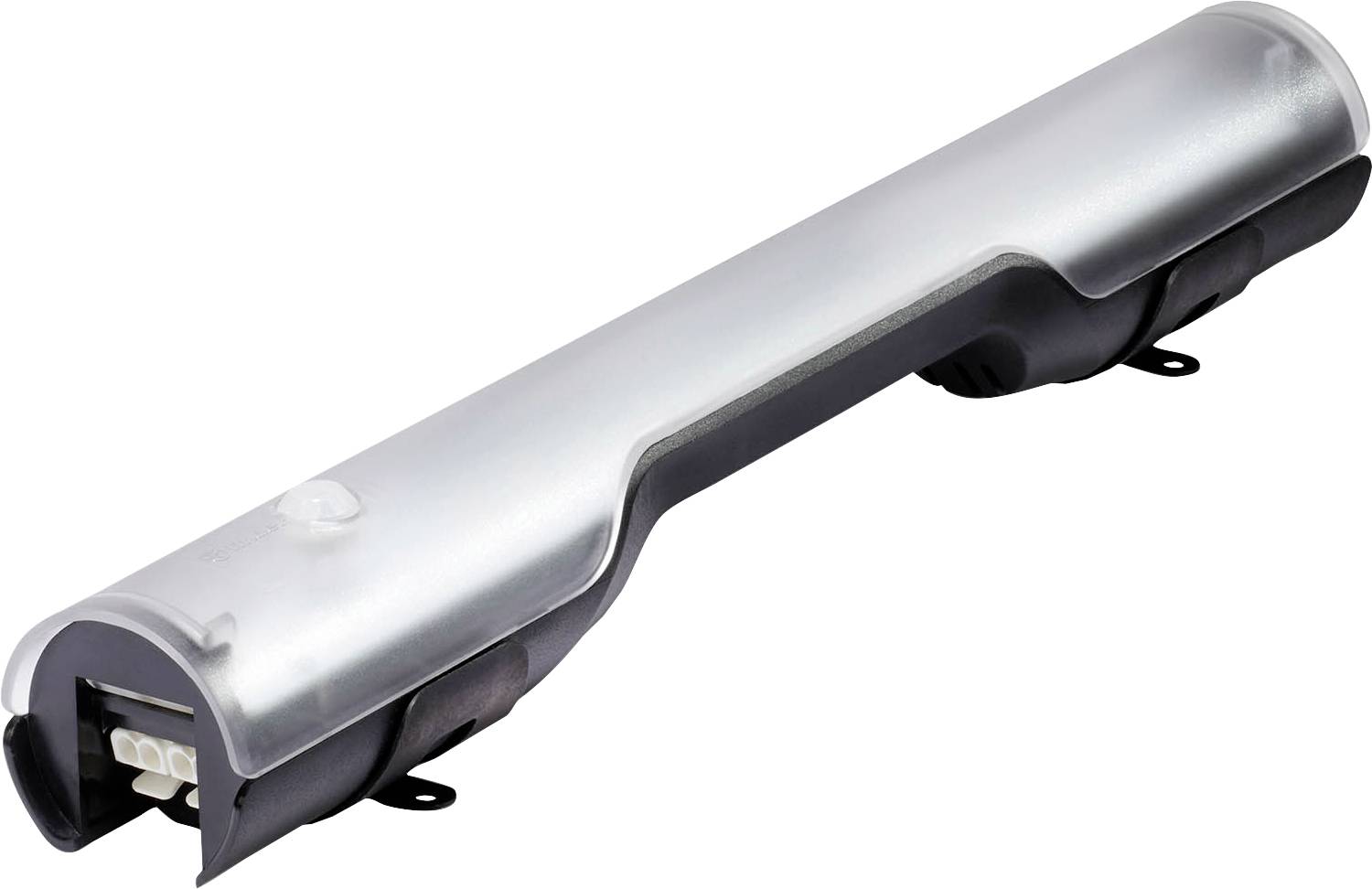

Finder LED lamp 7L.46.0.024.0100 Transparent 9 W 1200 lm 120 ° 12 V, 48 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED lamp
Operating voltage
12 V
48 V
Power
9 W
Colour temperature type
5000 K
Luminous flux (Φ)
1200 lm
Datasheet (PDF)
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Only 2 Piece(s) available
Highlights & Details
LED lamp, without on/off button, push-in terminals
- Without ON/OFF button and without motion detector
- Suitable for door contact switch
- Light color: Daylight white
- Electrical connection: Via push-in-terminals
- Supply voltages 12 to 48 V AC/DC
Technical specifications
- Lifetime: 60,000 hours
- Product type
LED lamp
- Type
7L.46.0.024.0100
- Features
Magnet
- Operating voltage
12 V
48 V
- Min. operating voltage
12 V
- Max. operating voltage
48 V
- Operating voltage
12 - 48 V
9 W
- Factory colour
Transparent
- Colour temperature type
5000 K
- Luminous flux (Φ)
1200 lm
- Radiation angle
120°
- Connection
Socket
- Material
Plastic
IP20
- Protection class
II
- Min. temperature
-30 °C
- Max. temperature
55 °C
- RoHS-compliant
Yes
n.rel.
Documents & Downloads
Datasheet
Datasheet 3702281 Finder LED lamp 7L.46.0.024.0100 Transparent 9 W 1200 lm 120 ° 12 V, 48 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3702281 Finder LED lamp 7L.46.0.024.0100 Transparent 9 W 1200 lm 120 ° 12 V, 48 V 1 pc(s)
Description
Electrical LED-switch cabinet-light with 1200 lumen. Version with which the light directly follows the condition of the voltage supply (ON/OFF), version with ON/OFF-switch and version with motion detector. Suitable for magnetic fixing or screw fixing, with push-in terminals or plug-in sockets.
This text is machine translated.
This text is machine translated.
