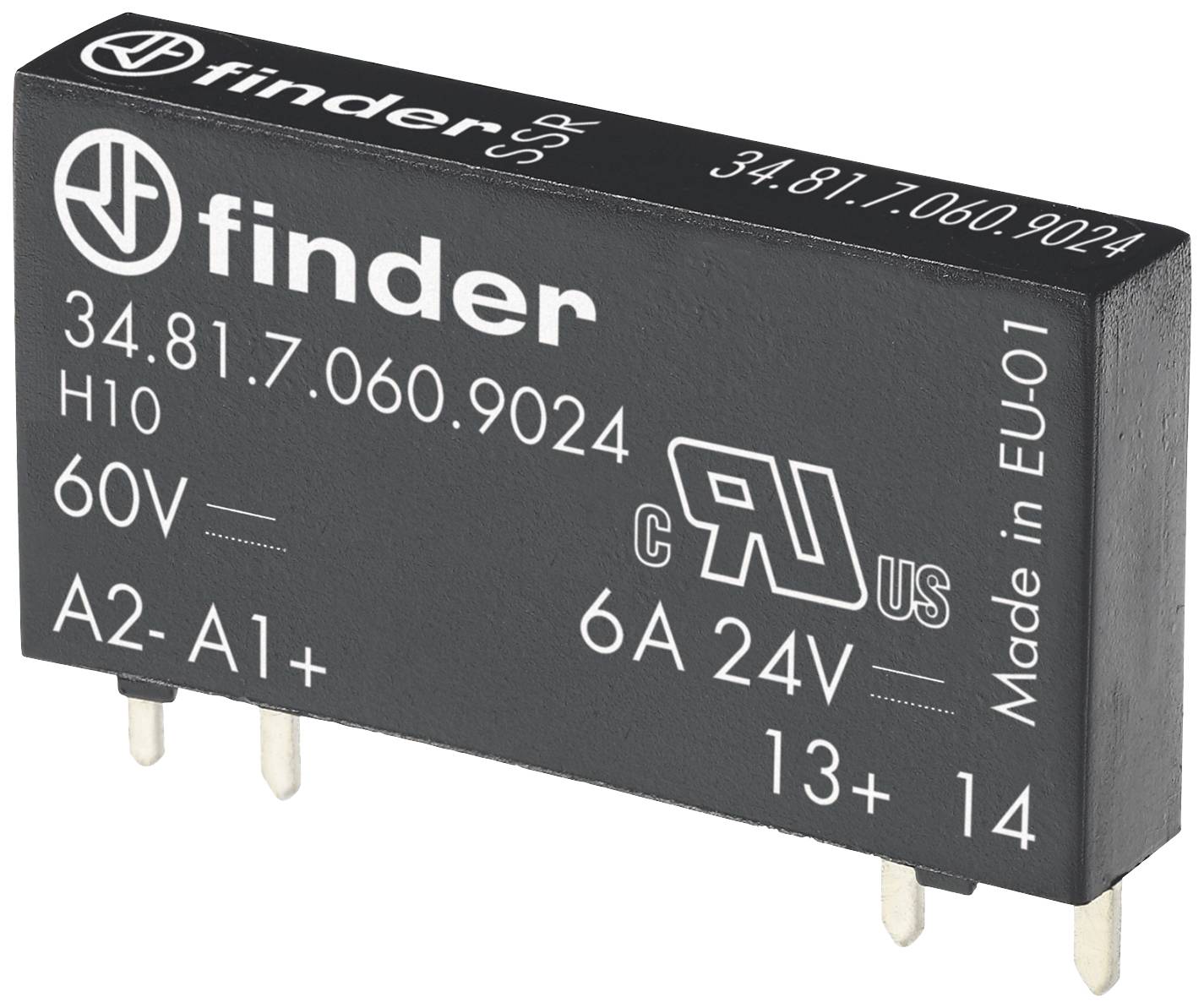

Finder SSR 348170608240-20 2 A Switching voltage (max.): 275 V AC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
35 V DC
Control voltage (max.)
72 V DC
Switching voltage (max.)
275 V AC
Highlights & Details
Relay with plug and print connections, input 60 V DC, output SSR 1 closer 2 A/230 V AC
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
34.81.7.060.8240
- Connection
Jack connector
- Control voltage (min.)
35 V DC
- Control voltage (max.)
72 V DC
- Control voltage range
35 - 72 V DC
- Control current (max.)
7 mA
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
275 V AC
- Current load (max.)
2 A
- Output voltage (min.)
12 V AC
- Output voltage (max.)
275 V AC
- RoHS-compliant
Yes
- Permanent current (max.)
2 A
- Content
1 pc(s)
- Nominal control voltage
60 V DC
2 A
DC
Electronic
35-72 V
12-275 V
FALSE
AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219419 Finder SSR 348170608240-20 2 A Switching voltage (max.): 275 V AC 1 pc(s)
Description
Narrow PCB relay, electronic, input voltage 60 VDC, input current 7 mA, output voltage 12-275 VAC max. Continuous output current 2 A Relay protection type RT III.
