Finder SSR 39.10.7.012.8240 2 A Switching voltage (max.): 230 V AC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
12 V DC
Control voltage (max.)
12 V DC
Switching voltage (max.)
230 V AC
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
39.10.7.012.8240
- Connection
Screw terminal
- Control voltage (min.)
12 V DC
- Control voltage (max.)
12 V DC
- Control voltage range
12 - 12 V DC
- Switching voltage (max.)
230 V AC
- Current load (max.)
2 A
- Output voltage (min.)
12 V AC
- Output voltage (max.)
275 V AC
- Max. output current
2 A
- Contact type
1 maker
- RoHS-compliant
Yes
- Permanent current (max.)
2 A
- Content
1 pc(s)
- Nominal control voltage
12 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323713 Finder SSR 39.10.7.012.8240 2 A Switching voltage (max.): 230 V AC 1 pc(s)
Description

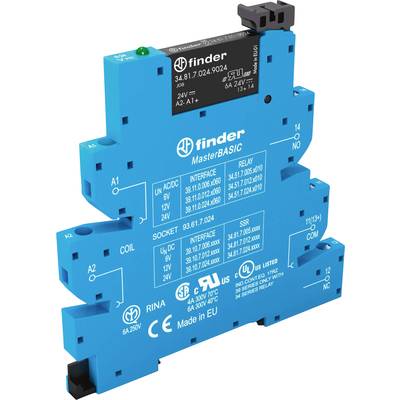

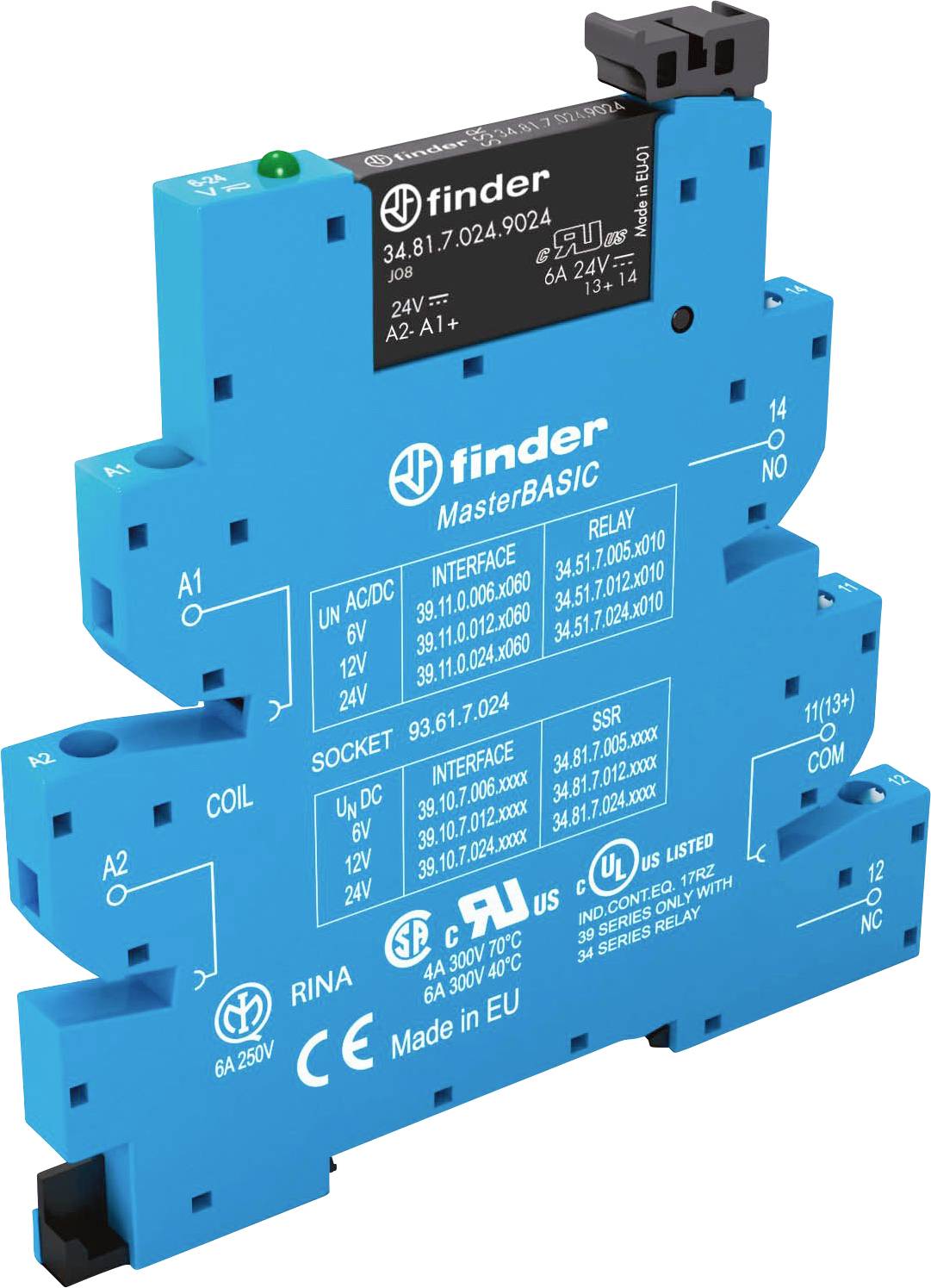

MasterBASIC narrow coupling relay for DIN rail, with screw connections, modular design, SSR contacts 1 NO for 2 A 230 V AC, universally used as coupling relay in the input of the PLC or in the output of the PLC for controlling actuators, LED display, terminals A1 or A2 and 13 + are bridgeable, coil voltage 12 V DC
