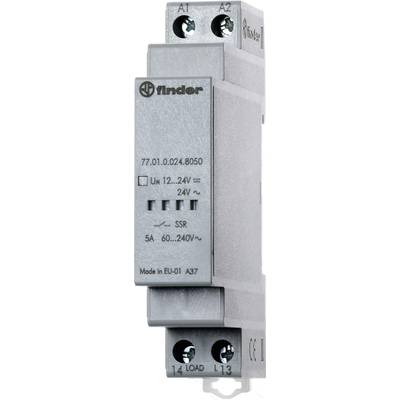

Finder SSR 77.01.8.230.8051 5 A Switching voltage (max.): 240 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
90 V AC
Control voltage (max.)
265 V AC
Switching voltage (max.)
240 V AC
Current load (max.)
5 A
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details
Electronic relay (SSR), series 77
Technical specifications
- Switch-on current: (10 ms) 520 A
- Product type
SSR
- Type
77.01.8.230.8051
- Connection
Screw terminal
- Control voltage (min.)
90 V AC
- Control voltage (max.)
265 V AC
- Control voltage range
90 - 265 V AC
- Surge current (max.)
520 A
- Switching voltage (max.)
240 V AC
- Current load (max.)
5 A
- Max. switching capacity
800 W
- Max. output current
5 A
- Contact type
1 maker
- Min. temperature
-20 °C
- Max. temperature
+70 °C

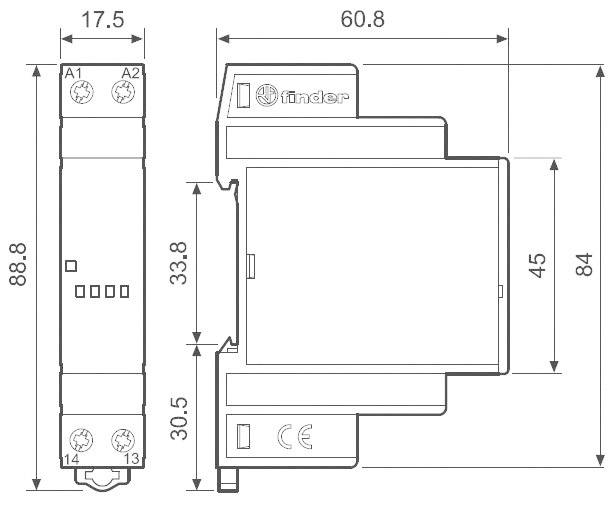

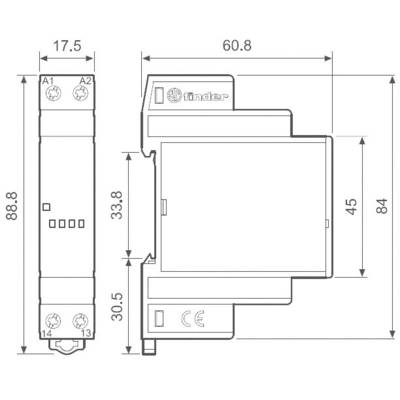

- Width
17.5 mm
- Height
84 mm
- Depth
60.8 mm
- Content
1 pc(s)
- Type
Instant switching
- Nominal voltage (details)
110 - 240 V AC
- Switching capacity
(incandescent bulbs) 800 W, (fluorescent/energy saving bulb) 400 W, (fluorescent tube with electronic ballast) 800 W, (fluorescent tube with compensated electronic ballast) 250 W
- Type
77.01.8.230.8051
17.5
MOSFET
88.8 mm
60.8 mm
1
TRUE
FALSE
FALSE
Screw connection
230-230 V
230-230 V
AC
IP20
TRUE
90-265 V
90-265 V
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 504706 Finder SSR 77.01.8.230.8051 5 A Switching voltage (max.): 240 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 504706 Finder SSR 77.01.8.230.8051 5 A Switching voltage (max.): 240 V AC 1 pc(s)
Information
Information 504706 Finder SSR 77.01.8.230.8051 5 A Switching voltage (max.): 240 V AC 1 pc(s)
Description
Instantaneous value switch: Wear-free switching at high switching frequency and higher loads – particularly suitable for resistance loads and inductive loads. Modular, for 35 mm DIN rails. AC output circuit (anti parallel thyristors), high number of switching cycles (no burning of contact material), noiseless switching and low control capacity.
Hints
Approvals: cULus, EAC.
