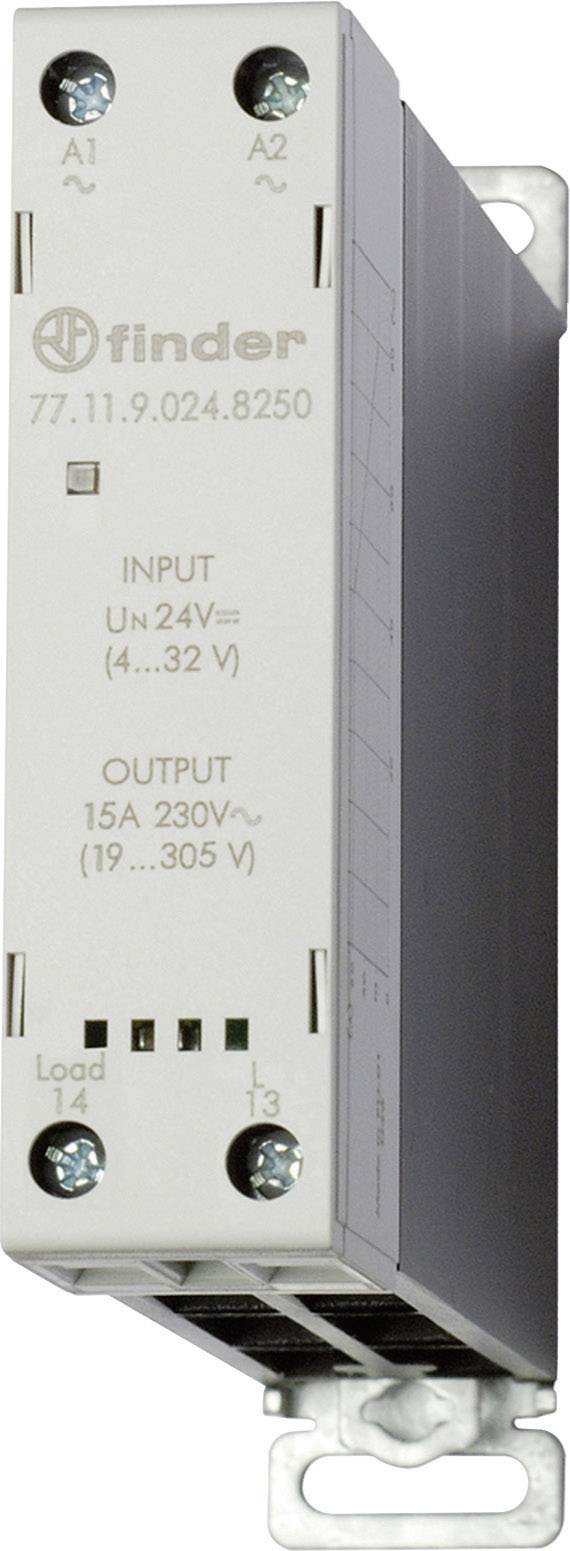

Finder SSR 77.11.9.024.8250 15 A Switching voltage (max.): 305 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
305 V AC
Current load (max.)
15 A
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
14-day return policy included
Highlights & Details
SSR relay housing measures 22.5 mm
Technical specifications
- Switch-on current: (10 ms) 300 A
- Product type
SSR
- Type
77.11.9.024.8250
- Switching type
Zero crossing
- Control voltage (min.)
4 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4 - 32 V DC
- Switching voltage (max.)
305 V AC
- Current load (max.)
15 A
- Max. switching capacity
1000 W
- Contact type
1 maker
Relay protection type RT II
- Content
1 pc(s)
22.5
MOSFET
104.5 mm
120.3 mm
1
TRUE
FALSE
FALSE
Screw connection
24-24 V
DC
IP20
TRUE
4-32 V
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1217501 Finder SSR 77.11.9.024.8250 15 A Switching voltage (max.): 305 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1217501 Finder SSR 77.11.9.024.8250 15 A Switching voltage (max.): 305 V AC Zero crossing 1 pc(s)
Information
Information 1217501 Finder SSR 77.11.9.024.8250 15 A Switching voltage (max.): 305 V AC Zero crossing 1 pc(s)
Description
Features
- LED indicator.
- This text is machine translated.
Hints
Approvals: cULus, EAC.
