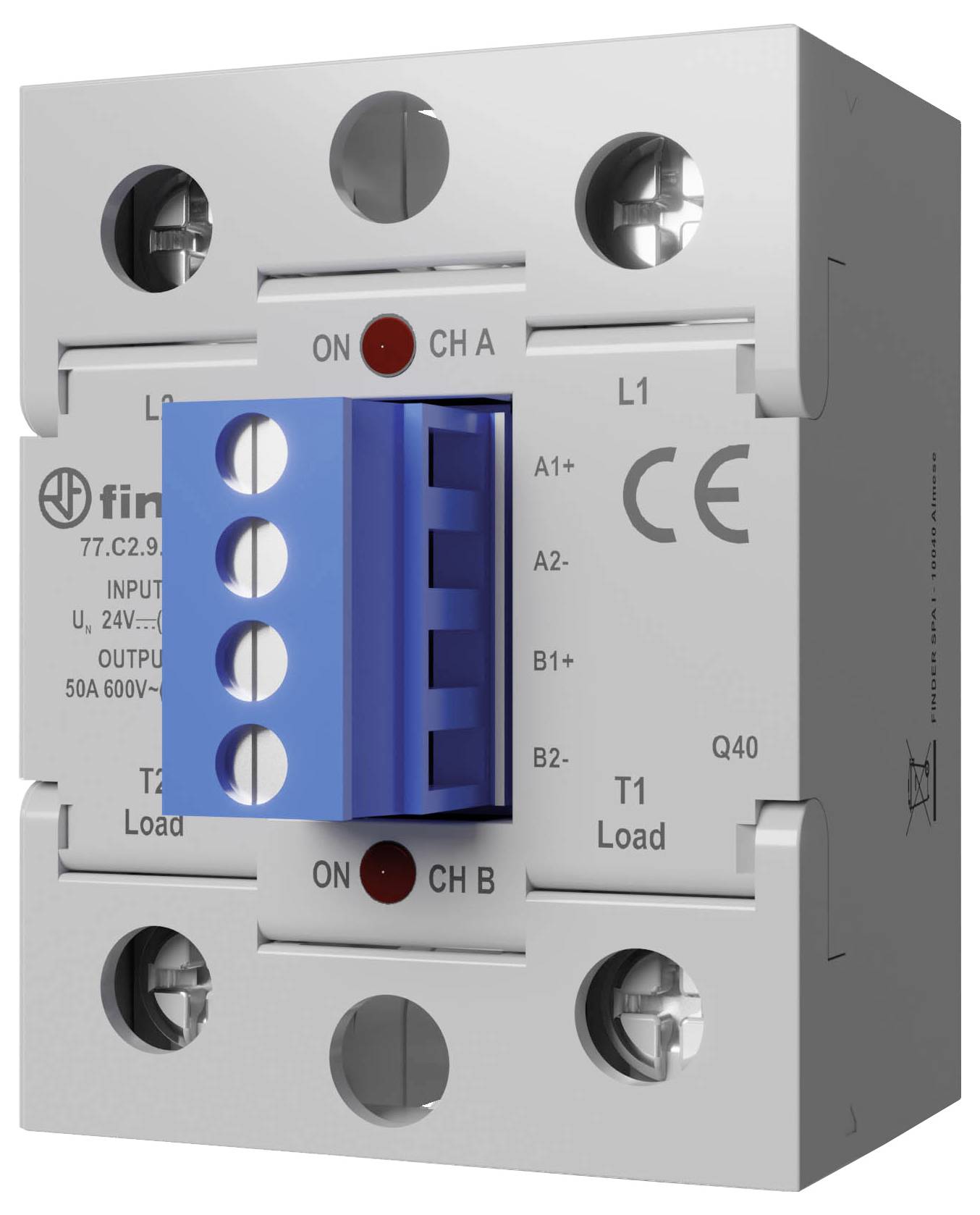

Finder SSR 77C290248671 50 A Switching voltage (max.): 660 V AC Instantaneous 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Switching voltage (max.)
660 V AC
Current load (max.)
50 A
Output voltage (max.)
600 V AC
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Input voltage 24 V/DC
- Inrush current: Up to 500 A for 10 ms
- Thermal output at In:120 W
- Periodic Peak Reverse Voltage: 1200 Vpk
- Residual current in "OFF" state at rated voltage: 5 mA
- Dielectric strength input to output 4 kV
- Design: With LED
- Packaging type
Piece
- Product type
SSR
- Type
77.C2.9.024.8671
- Switching type
Instantaneous
- Surge current (max.)
500 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
660 V AC
- Current load (max.)
50 A
- Output voltage (min.)
24 V AC
- Output voltage (max.)
600 V AC
- Max. output current
50 A
- Contact type
2 makers
- Min. temperature
-30 °C
- Max. temperature
+80 °C
IP20
- Width
54.70 mm
- Height
46 mm
- Depth
58.4 mm
- Length
58.40 mm
- RoHS-compliant
Yes
- Permanent current (max.)
50 A
- Content
1 pc(s)
- Nominal control voltage
24 V DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3343697 Finder SSR 77C290248671 50 A Switching voltage (max.): 660 V AC Instantaneous 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3343697 Finder SSR 77C290248671 50 A Switching voltage (max.): 660 V AC Instantaneous 1 pc(s)
Description
Features
- Two-pin SSR relay
- Hockey puck housing with fold-out terminal cover
- Long life and switching speed
- Noiseless switching
- Arc-and bounce-free switching
- For mounting on a control cabinet or heatsink
- 2 independent outputs controlled by different inputs
- This text is machine translated.
