Fischer 008692 Screw fastener 90 mm 8 mm 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
fischer termofix B 90 insulation bracket
- The dowel is inserted in the through-hole mounting
- A commercially available PH2 bit is required for installation
- Simply insert the Delta Seal coated screw with a commercially available screwdriver
- Non-supporting layers such as Adhesives are included in the maximum working length
Technical specifications
- Mounting type: Screw plugs
- Plate diameter 60 mm
- (Ø)
8 mm
- Product type
Screw fastener
- Material
Polypropylene
- Length
90 mm
- Screw diameter
8 mm
- Dim
(Ø x L) 8 mm x 90 mm
- Suitable for
Insulation boards
- Content
100 pc(s)
- Outside Ø
60 mm
- Features
incl. screw
- Material properties
corrosion-protected
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472306 Fischer 008692 Screw fastener 90 mm 8 mm 100 pc(s)
Description

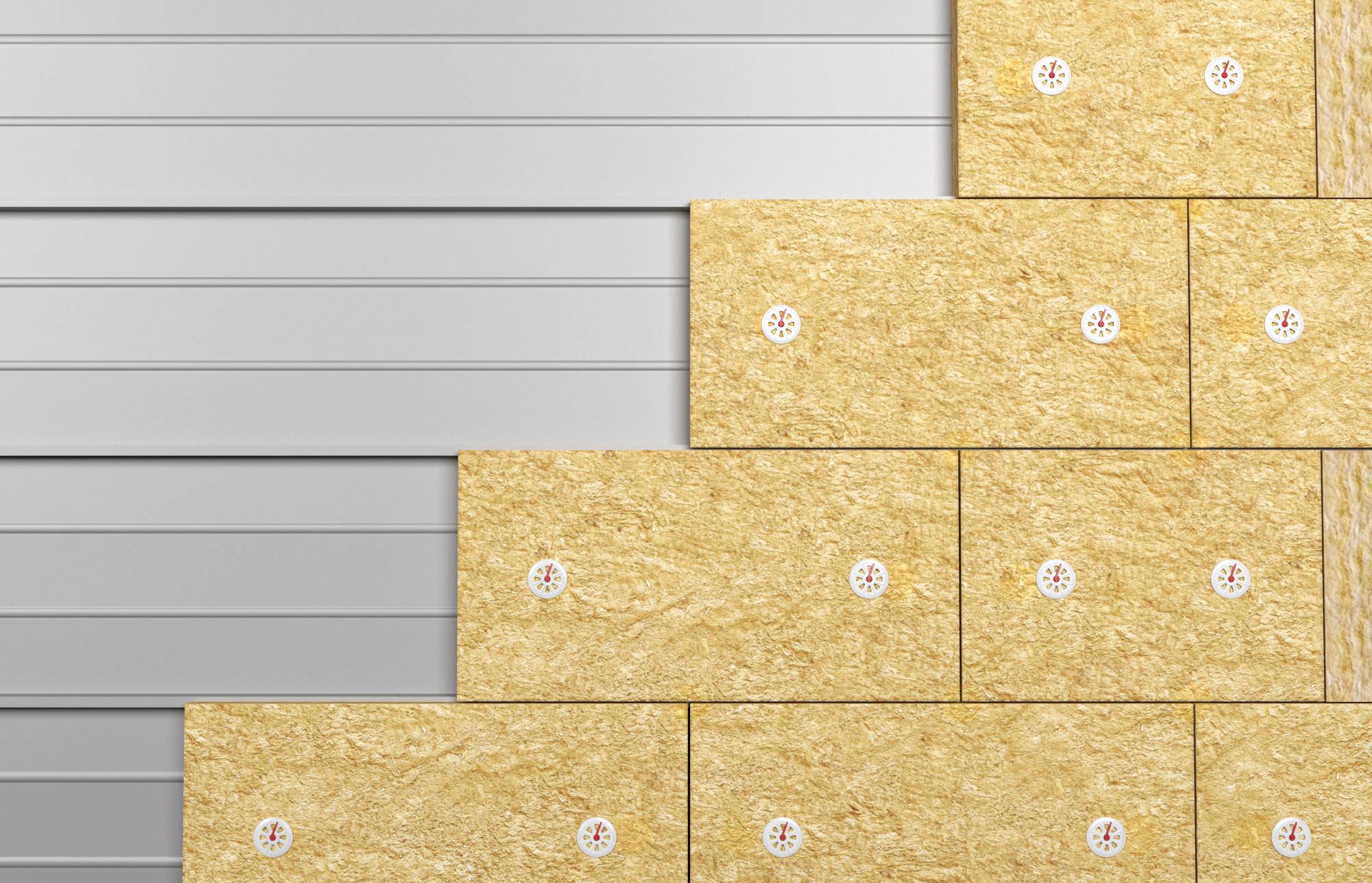

the fischer Termofix B is a corrosion-protected screw plug for fixing pressure-resistant insulation boards in sheet metal up to 1.5 mm thick. The insulation plug consists of a retaining plate made of polypropylene and a pre-mounted drill screw. The screw is protected against corrosion with a Delta Seal coating and offers permanent safety. The Termofix B is set with a cordless drill driver in the through-hole mounting without pre-drilling. The pre-assembled screw saves time. The screw head is sealed with the locking ball against heat loss. The flexible head compensates for thermal stresses and prevents damage.
This text is machine translated.
This text is machine translated.
Features
- The pre-assembled screw reduces processing time
- High corrosion protection of the screw through the Delta-Seal coating
- that means security over years
- The ball lock creates an air column over the screw head
- this reduces transmission heat losses
- the flexible head compensates for thermal stresses and prevents damage
- With very soft insulation materials combined with the insulation plates DT 90, DT 110, DT 140
