Name: Fischer 008693 Screw fastener 110 mm 8 mm 100 pc(s)
Brand: Fischer
SKU: 2472305

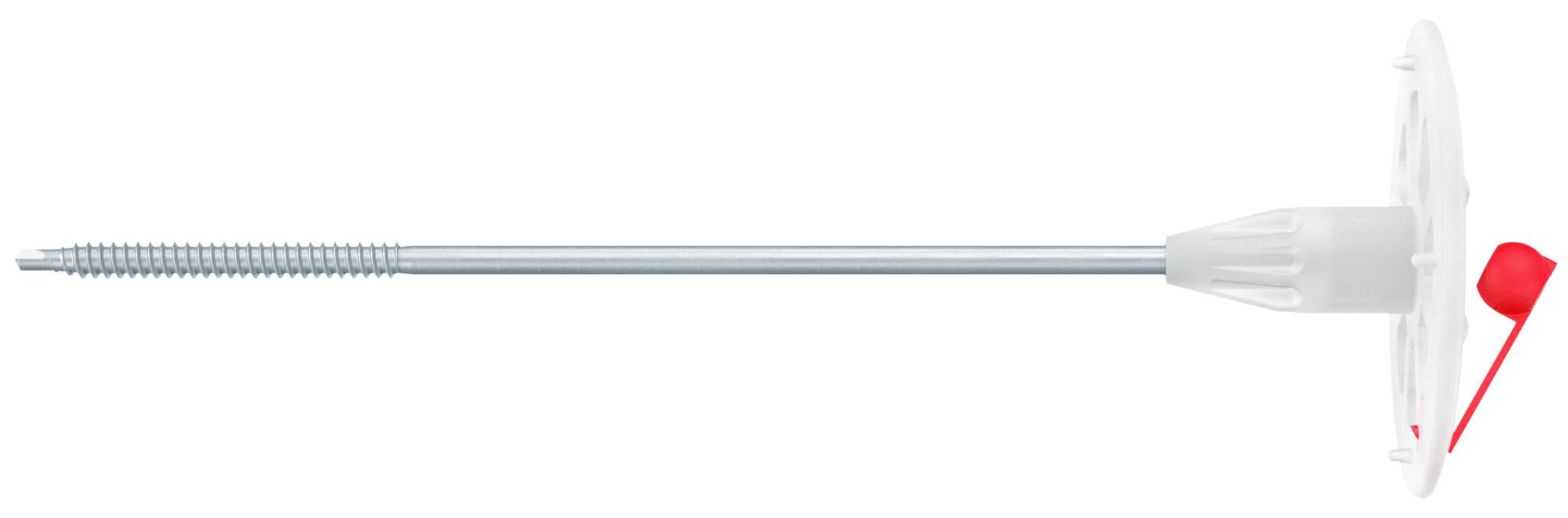

Long white plastic fastener or cable tie with a red locking tab on the right, shown horizontally on a white background.

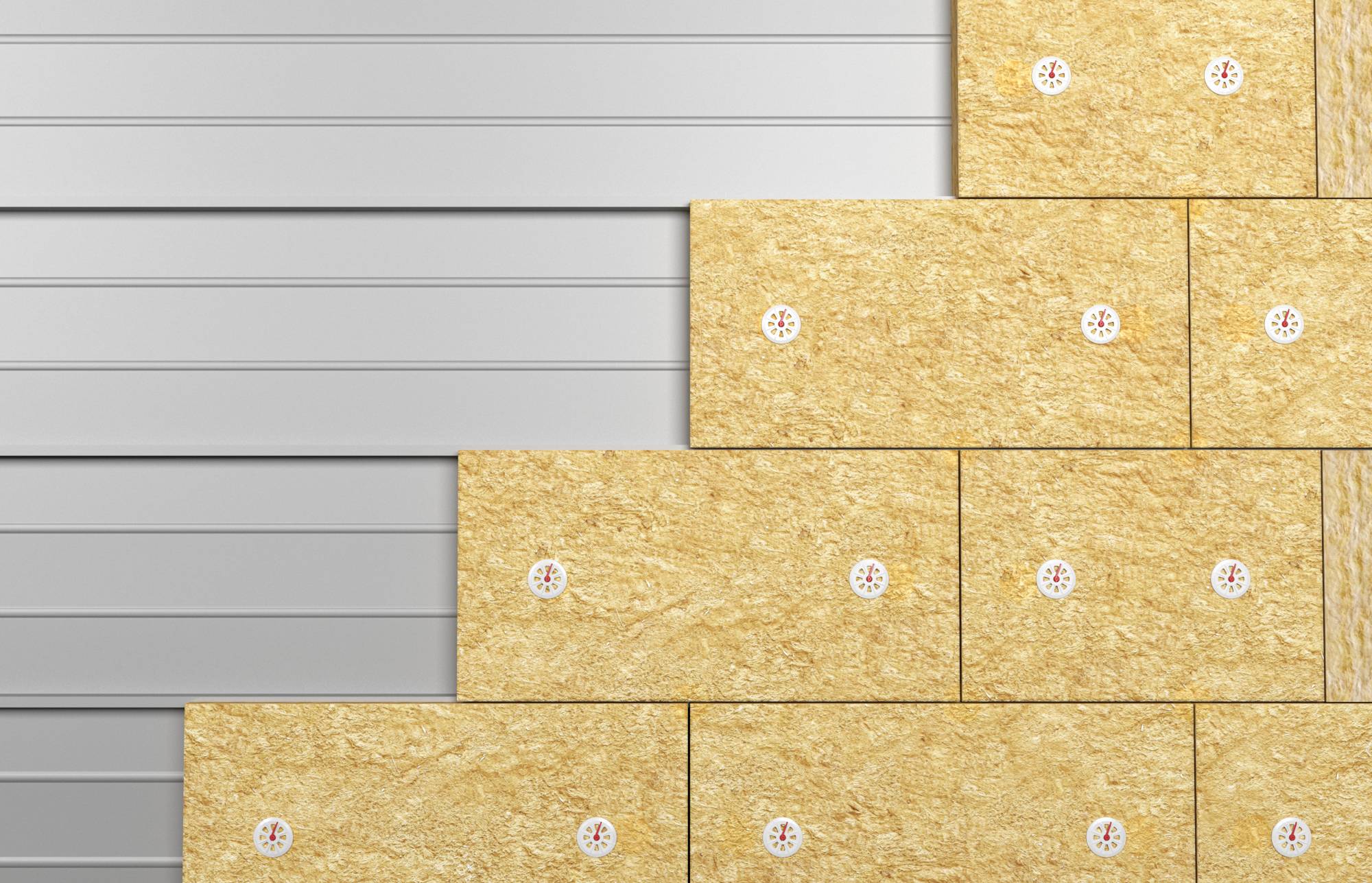

Cross-section of wall insulation: yellow rigid insulation boards with fastening dots installed over gray horizontal wall siding.<br>

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

fischer termofix B 110 insulation bracket

The dowel is inserted in the through-hole mounting
A commercially available PH2 bit is required for installation
Simply insert the Delta Seal coated screw with a commercially available screwdriver
Non-supporting layers such as Adhesives are included in the maximum working length

Technical specifications

Mounting type: Screw plugs
Plate diameter 60 mm

(Ø): 8 mm

Product type: Screw fastener

Material: Polypropylene

Length: 110 mm

Screw diameter: 8 mm

Dim: (Ø x H) 8 mm x 110 mm

Suitable for: Insulation boards

Content: 100 pc(s)

Outside Ø: 60 mm

Features: incl. screw

Material properties: corrosion-protected

Height: 110 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2472305 Fischer 008693 Screw fastener 110 mm 8 mm 100 pc(s)

Description

the fischer Termofix B is a corrosion-protected screw plug for fixing pressure-resistant insulation boards in sheet metal up to 1.5 mm thick. The insulation plug consists of a retaining plate made of polypropylene and a pre-mounted drill screw. The screw is protected against corrosion with a Delta Seal coating and offers permanent safety. The Termofix B is set with a cordless drill driver in the through-hole mounting without pre-drilling. The pre-assembled screw saves time. The screw head is sealed with the locking ball against heat loss. The flexible head compensates for thermal stresses and prevents damage.

This text is machine translated.

Features

The pre-assembled screw reduces processing time
High corrosion protection of the screw through the Delta-Seal coating
that means security over years
The ball lock creates an air column over the screw head
this reduces transmission heat losses
the flexible head compensates for thermal stresses and prevents damage
With very soft insulation materials combined with the insulation plates DT 90, DT 110, DT 140
