Fischer 24424 Round Steel Bracket 110 mm Steel-zinc coated 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal size: 2 1/2"
- Connector thread M10
- Product type
Circular steel bracket
- Material
Steel
- Thread size
M10
- (Ø)
110 mm
- Length
110 mm
- Content
10 pc(s)
- Dim
(Ø x L) 110 mm x 110 mm
- Material properties
zinc plated
- Dimensions
l x d x D 110 x 110 x 88
- Width
88 mm
- Material (details)
Steel-zinc coated
Documents & Downloads
Datasheet
Datasheet 177225 Fischer 24424 Round Steel Bracket 110 mm Steel-zinc coated 10 pc(s)
User & Safety Instructions
User & Safety Instructions 177225 Fischer 24424 Round Steel Bracket 110 mm Steel-zinc coated 10 pc(s)
Description

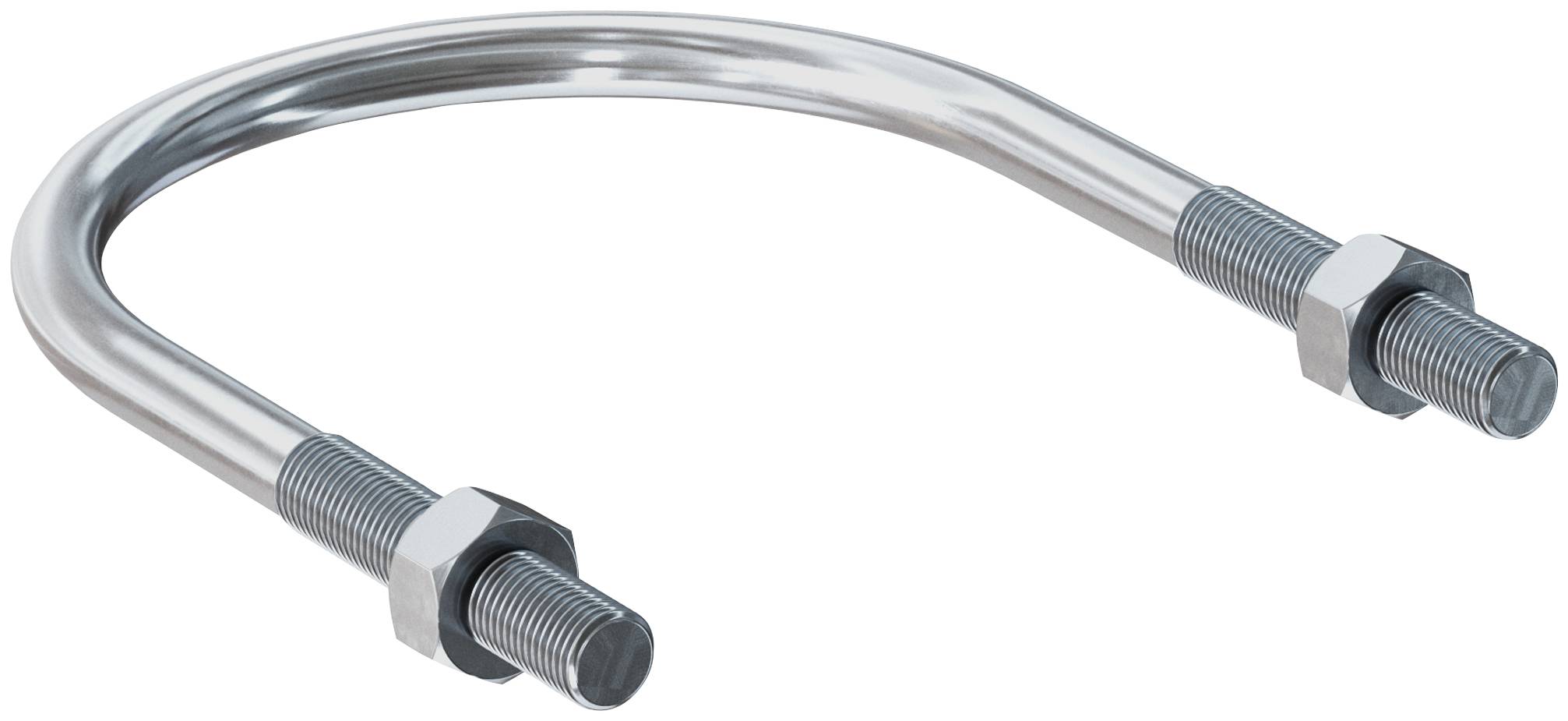

The high-quality fischer round steel bracket for nominal size 2 1/2" with metric thread for installation of standing or suspended pipes and for pipe routing at profile or consoles. The two screw of the round steel bracket enables the optimized adjustment on the tube outer diameter.
This text is machine translated.
This text is machine translated.
Features
- Connector thread M10
