Buy Fischer 37573 UBN Cable tie 200 mm 3.60 mm Black UV-proof 100 pc(s)

A long, grey bar with darker stripes at one end, likely part of an object or device, visually represented.

A black and a white cable tie cross each other against a white background.

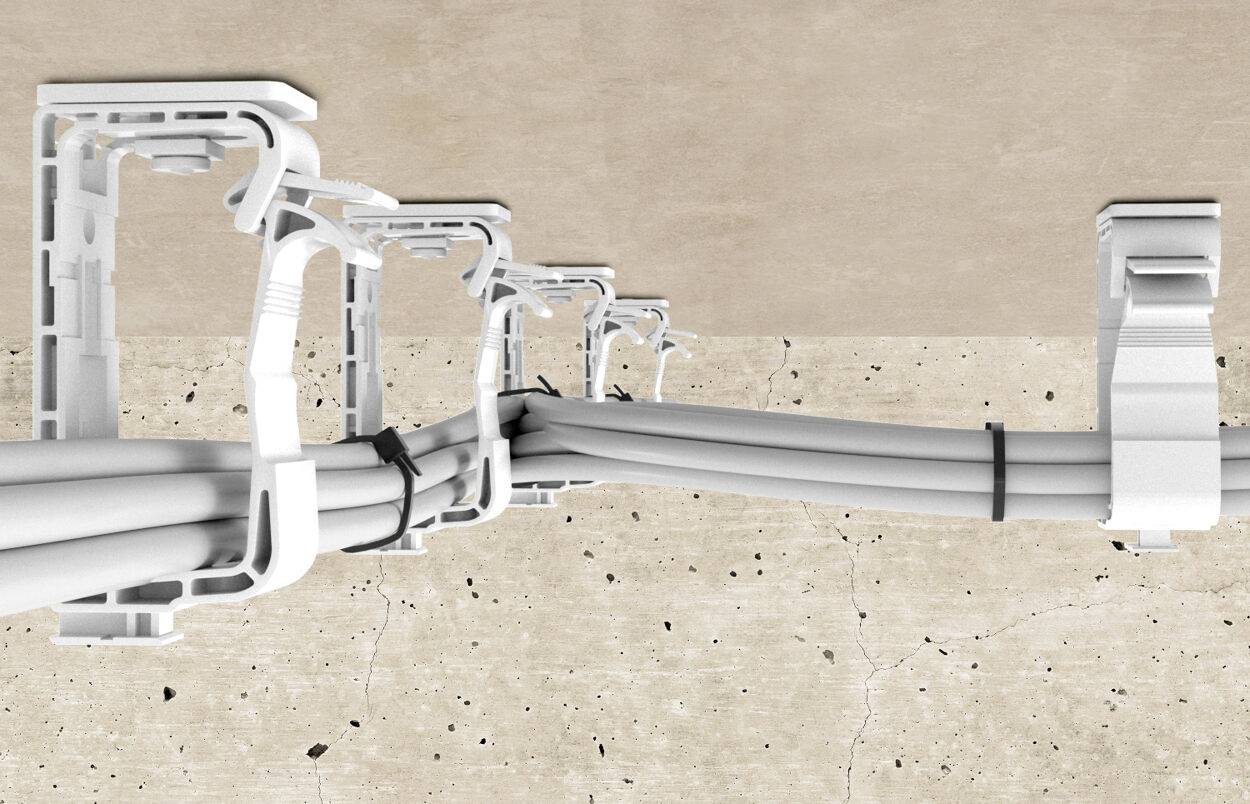

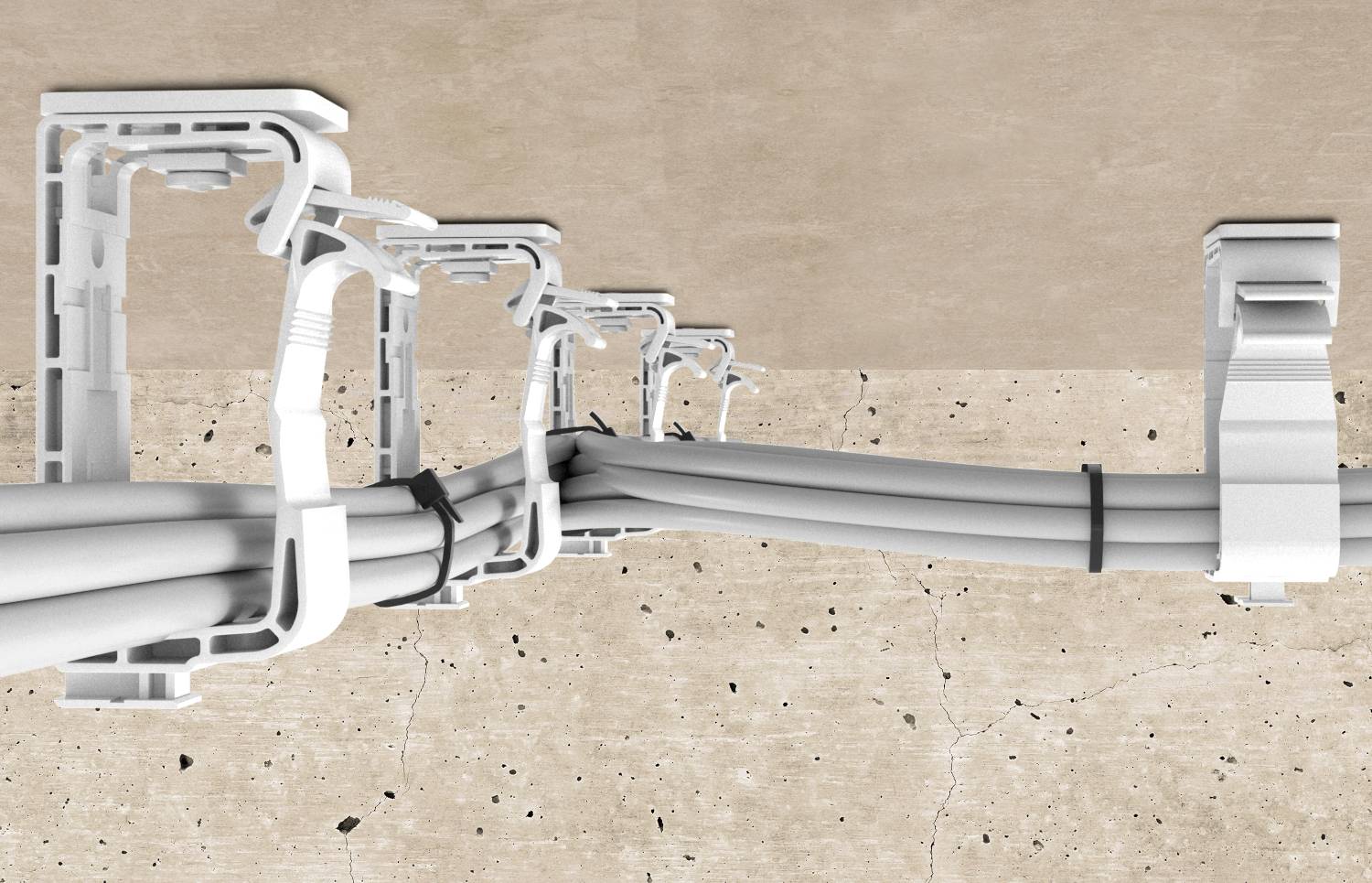

White cables are fastened with cable ties to mounting brackets on a concrete wall. The brackets are installed at regular intervals.

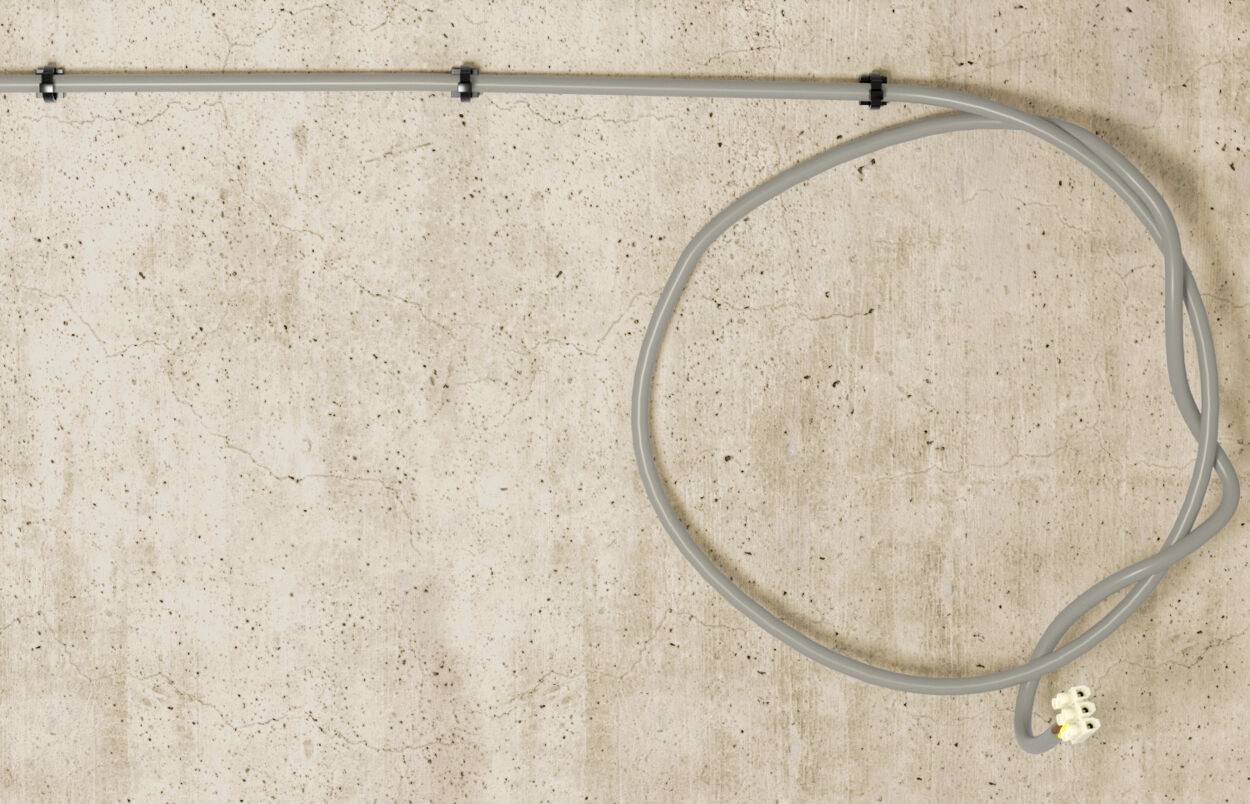

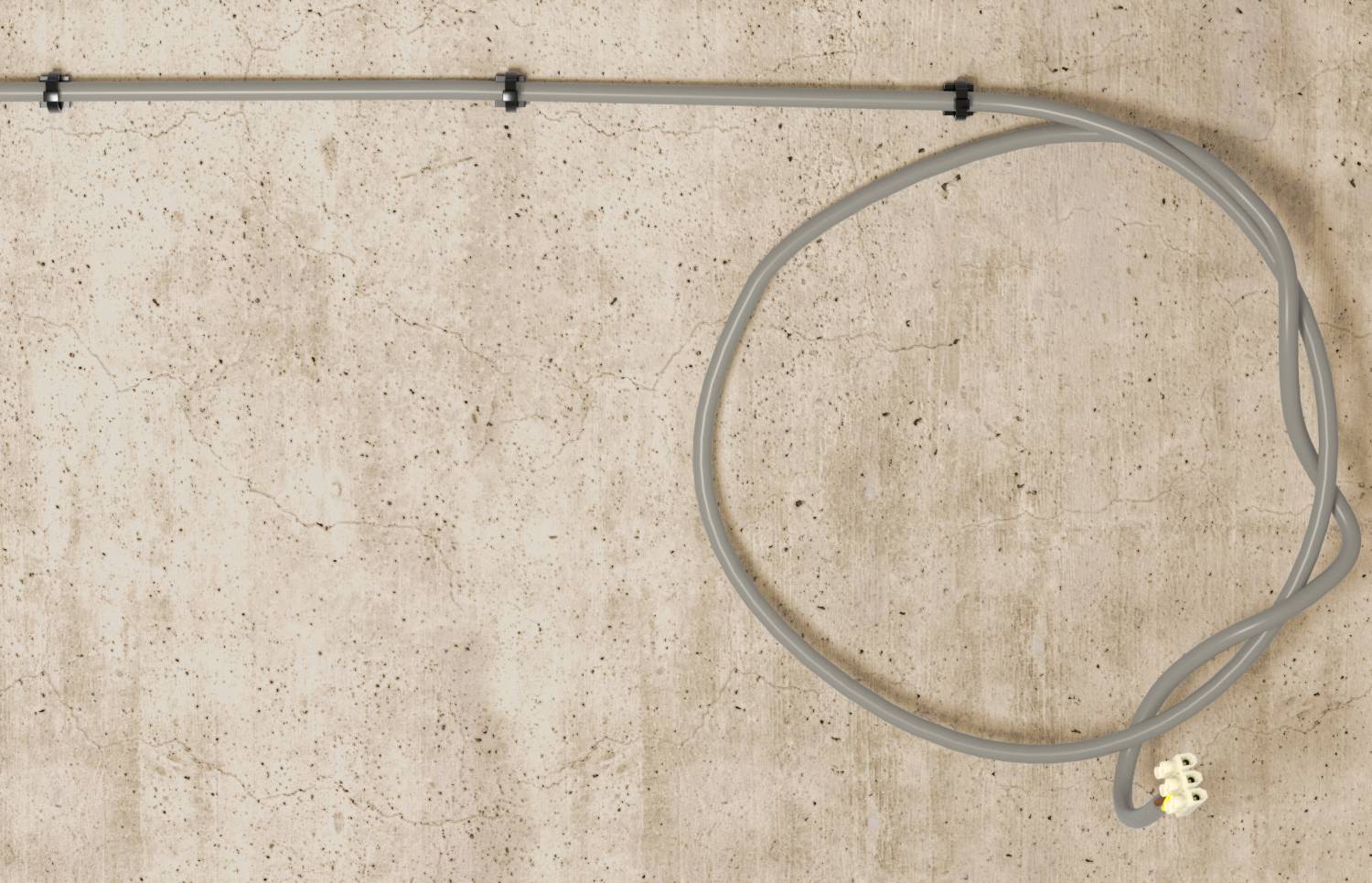

A grey extension lead lies on a beige floor. The cable is coiled, and a plug is visible.

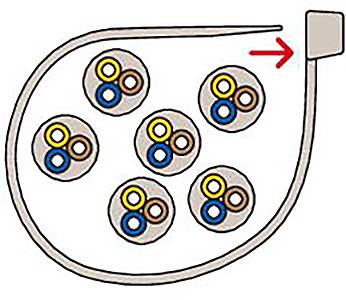

Figure of a cable harness with five circular bundles, each consisting of three differently coloured wires; arrow indicates direction.

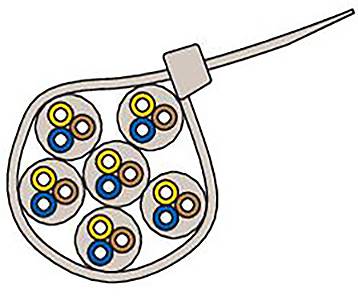

Schematic drawing of an electrical cable with five cores, each containing three coloured wires, to illustrate protection and conductivity.

1/6

Product type

Cable tie

Content

100 pc(s)

Cable tie length

200 mm

Cable tie width

3.60 mm

Cable tie features

UV-proof

Datasheet (PDF)

Fast track dispatch on Fri, 3 Jul

86 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 100 pc(s))

Set(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

Report legal concerns

Highlights & Details

Cable ties UBN

UV-stabilized material
Particularly suitable for outdoor applications

Technical specifications

Product type: Cable tie

Content: 100 pc(s)

Factory colour: Black

Cable tie length: 200 mm

Cable tie width: 3.60 mm

Cable tie features: UV-proof

Gearing: Inside

Max. temperature: +80 °C

Min. temperature: -40 °C

Halogen-free: Yes

Material: Polyamide 6.6

Fire protection properties: UL94 Class V2

Max. bundle diameter: 53 mm

Manufacturer part #: 37573

Type: UBN

Temperature range: -40 - +80 °C

Documents & Downloads

Datasheet

Datasheet 477567 Fischer 37573 UBN Cable tie 200 mm 3.60 mm Black UV-proof 100 pc(s)

User & Safety Instructions

User & Safety Instructions 477567 Fischer 37573 UBN Cable tie 200 mm 3.60 mm Black UV-proof 100 pc(s)

Description

For bundling pipes and cables. Self-extinguishing in accordance with UL 94 class V2. To mount the cable tie, simply place it around the object to be fixed and pull the tape through the head of the cable tie. Locking the tongue in the teeth ensures permanent attachment. The cable tie is Ideal for bundling electrical cables, steel armored conduits and plastic insulating pipes. The black cable tie UBN from UV-stabilized material is especially suitable for outdoor use.

This text is machine translated.
