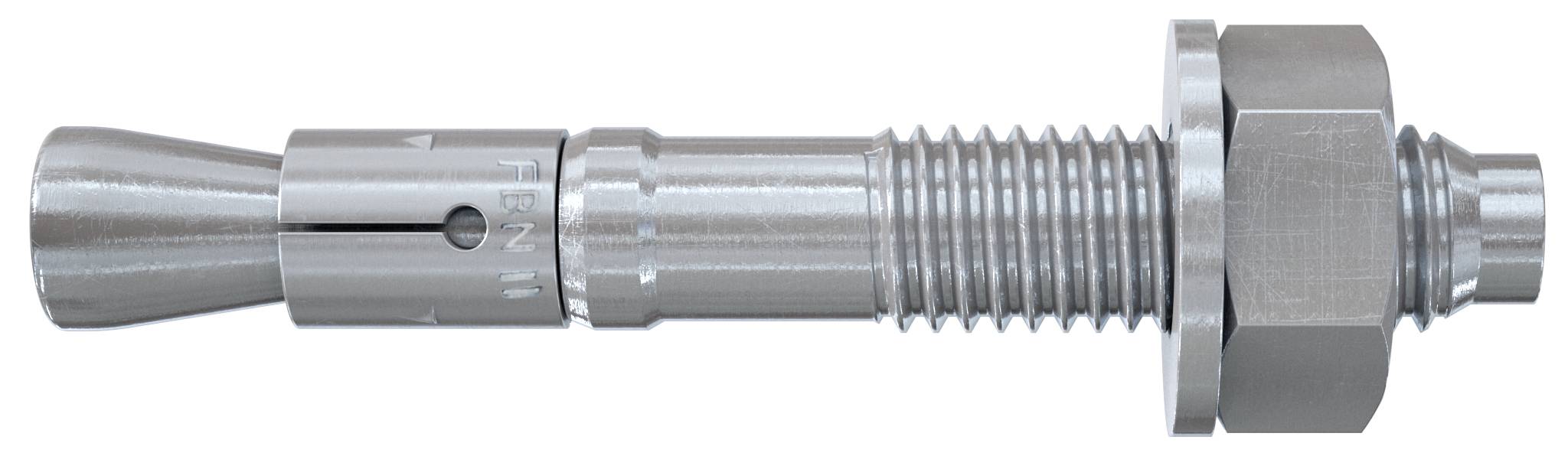

Fischer 40807 FBN II 8/10 K Cavity fixing 61 mm 8 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
8 mm
- Product type
Cavity fixing
- Material
Steel
- Length
61 mm
- Screw diameter
8 mm
- Dim
(Ø x L) 8 mm x 61 mm
- Suitable for
Concrete
Natural stone
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477596 Fischer 40807 FBN II 8/10 K Cavity fixing 61 mm 8 mm 50 pc(s)
Description

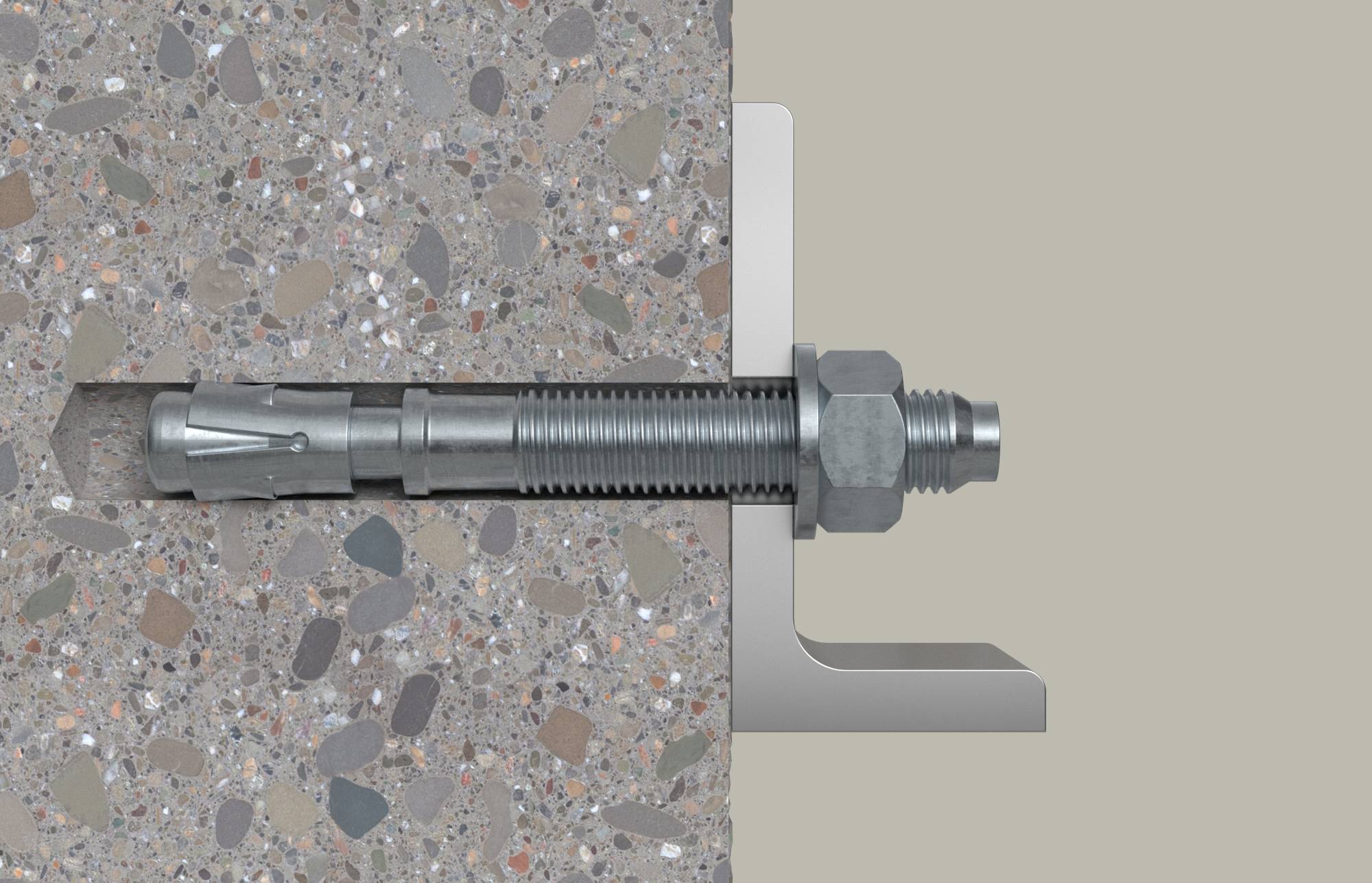

The fishermen anchor bolt FBN II K is a steel anchor for economic attachments in ungerissenem concrete. In the short version, it is for the pre-mounted and through hole mounting. From electro-galvanised is the bolt anchor for balustrades, handrails or consoles in the inner area is recommended.
This text is machine translated.
This text is machine translated.
Features
- Easy mounting through a few hammer blows and minimum slip
- Impact Peg Protects threads from damage. This saves time when you assemble and dismantle
- The highest load capacity in ungerissenem concrete. This means: less fixing points and smaller anchor plates.
