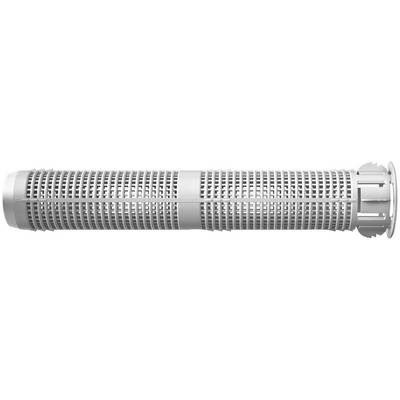

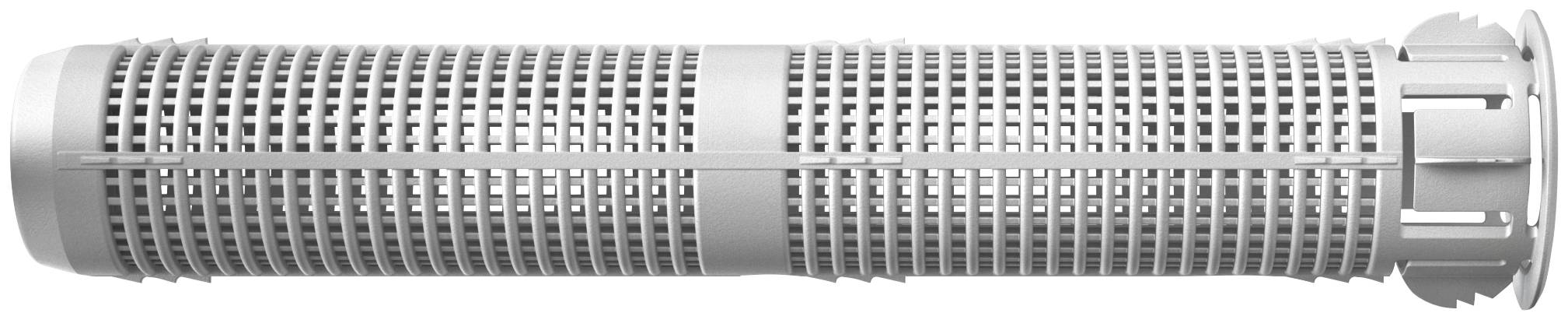

Fischer 41902 FIS H 16 x 85 K Anchor plug 85 mm 16 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
16 mm
- Product type
Anchor plug
- Material
Plastic
- Length
85 mm
- Screw diameter
9 mm
- Dim
(Ø x L) 16 mm x 85 mm
- Suitable for
Cored bricks
Structural lightweight concrete
Concrete
Flintlime hollow bricks
Flintlime bricks
Solid brick
Hollow pumice slabs
Hollow ceiling panels
Pumice
- Content
50 pc(s)
- Outside Ø
16 mm
- Weight
0.004
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477622 Fischer 41902 FIS H 16 x 85 K Anchor plug 85 mm 16 mm 50 pc(s)
Description

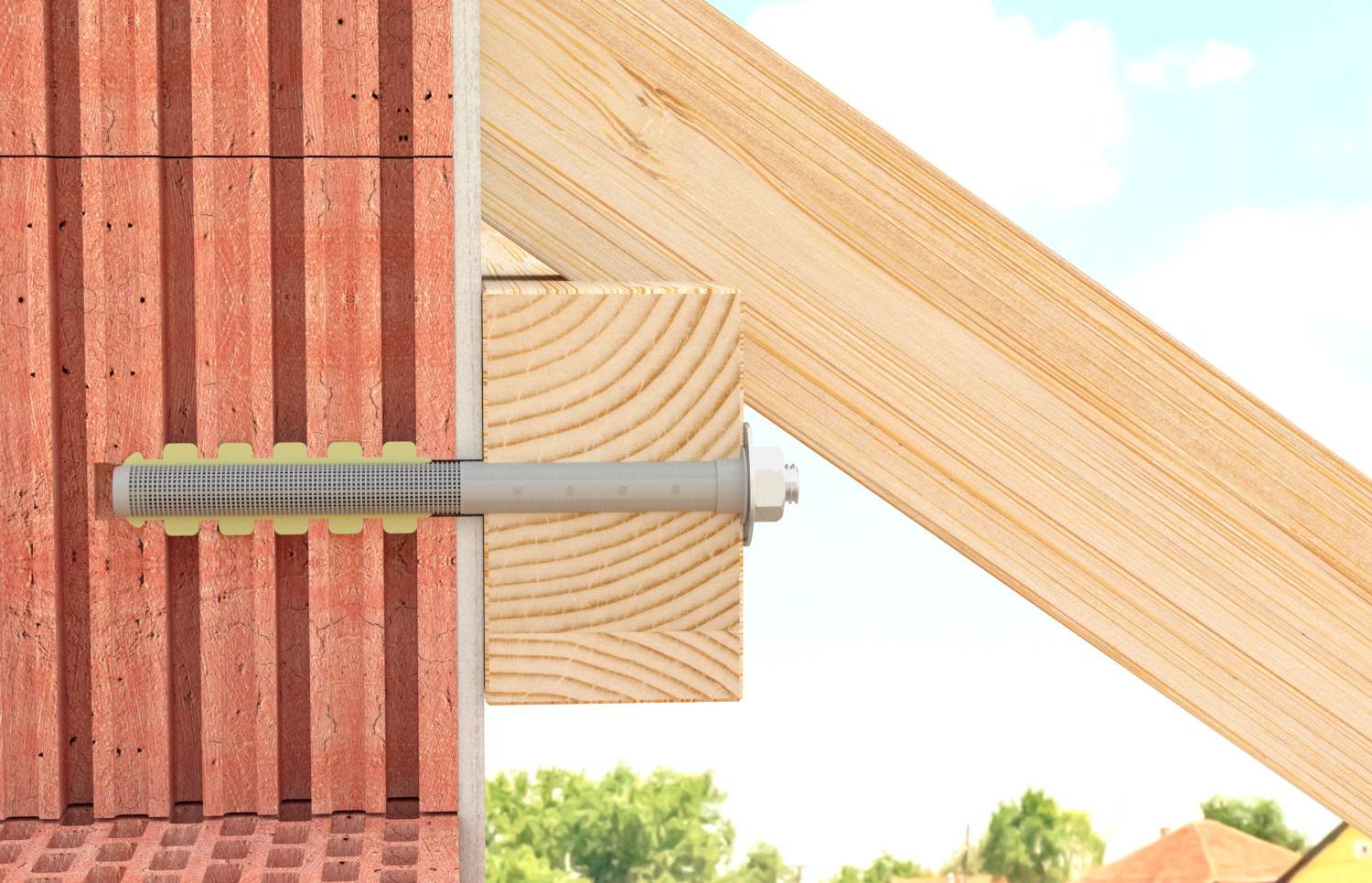

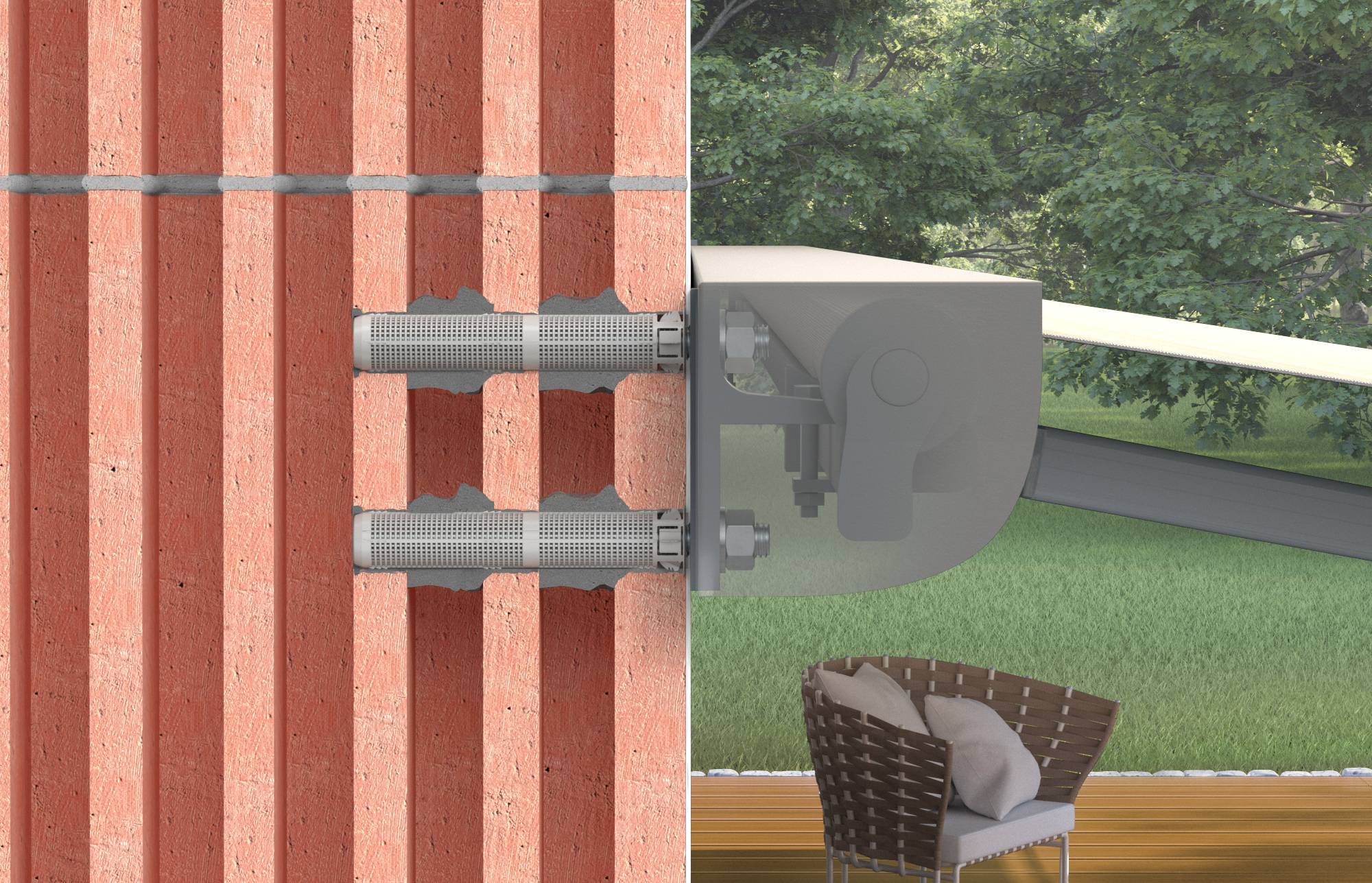

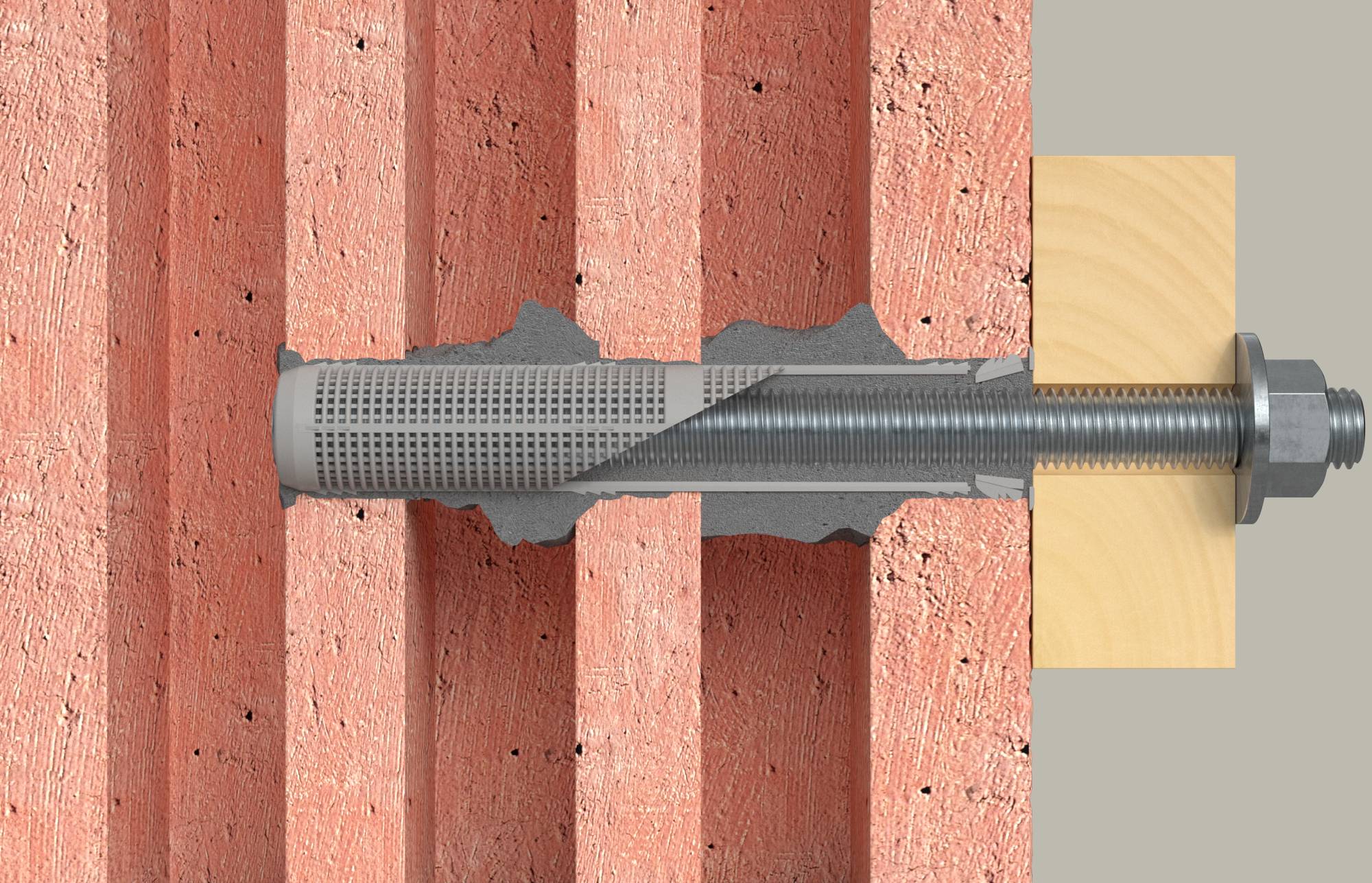

The Fishermen Anchor plug FIS H K plastic is the system component for the use of the fischer injection mortar hole in the stone wall. The anchor is inserted into the drill hole and the basis of the anchor sleeve with injection mortar filled in. When setting the anchor rod or the internal thread anchor is pressed through the lattice structure of the mortar and connects the form-fit with the hole stone. This is the load in the material. With the anchor plug can also non-load-bearing layers to be bridged.
This text is machine translated.
This text is machine translated.
Features
- Anchor enables optimum form-in hole stone
- ETA-Approval
- Grid structure of the anchor sleeve reduced mortar consumption
- Barb: no fall out in case of overhead mounting
- Centering wing fix anchor rods with different diameters. This reduces the complexity and storage.
